Help CenterCO2 Laser Zoom Beam Expander
Related Products
Specifications
SpecificationsVariable magnifications
Alignment error<3min.
Adjustable divergence
Damage threshold: 1.5KW/cm2 10.6um
Zoom Beam Expander - CO2 Laser
Extensive BXZ seriesZOOM Beam Expander includes low power, high power, large aperture,
manual zoom covering wavelengths from UV to IR. Zoom Beam Expanders have been designed
for use with various magnifications.
Specifications
Variable magnifications
Alignment error<3min.
Adjustable divergence
Damage threshold: 1.5KW/cm2 10.6um

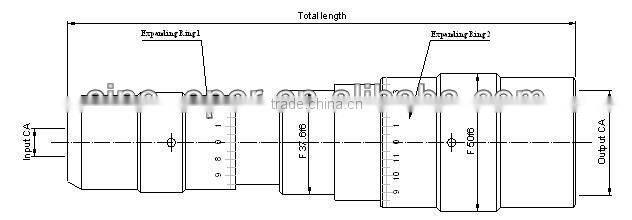

| Part No. | Magnification | Input CA (mm) | Output CA (mm) | Length(mm) |
|---|---|---|---|---|
| BXZ-10.6-0.25-2X | 0.25x-2x | 27.0 | 38.0 | 119.87 |
| BXZ-10.6-1-3X | 1x-3x | 18.0 | 30.0 | 126.4 |
| BXZ-10.6-1-4X-B | 1x-4x | 18.0 | 48.0 | 140.9 |
| BXZ-10.6-2-6X | 2x-6x | 16.0 | 96.0 | 205.8-212.4 |
| BXZ-10.6-2-6XA | 2x-6x | 18.0 | 28.0 | 205.1-213.0 |
| BXZ-10.6/9.4-0.5-3X | 0.5x-3x | 23.0 | 38.0 | 137.7 |
| BXZ-10.6/9.4-2-8X | 2x-8x | 10.0 | 36.0 | 168.0-172.0 |
Package:plywood packages
Shipping: Door to door by DHL, FedEx UPS. TNT. (About 3-5 days)
1. One year equipment warranty and lifetime warranty maintenance
2. Free installation and test before sending and free training for operators
3. Advice for the solutions best for customers requirements.
4. Free training and sample provided.
1. Specialized in production of Lasers and laser-related equipment
2.Independent research and development
3.Spare parts self produced, production cost is in control.
Warranty: 1 year
Minimum order quantity:1 set
Payment term:TT, western union
Delivery time:3-5 days after payment
