Specifications:
Tubular motor:
1.Certificate: CE,CCC,ISO90001
2.OEM: Offered
3.Low noise
4.safe&stable
Product Description:
Before using/buying tubular motor, please read first:
1).Left or right installayioon is ok;
2).Leading technology, new design and advanced craft;
3).Mechanical limit switches and asjustable limit switch;
4).Design controller with different functions according to customers request;
5).Overhead production: If the motor temperature is over 110 degree, the motor stops working automatically, works again if temperature return below 70 degree;
6). Apllication: Awnings, shutter doors, curtains, rolling doors, malls, garage and projection screens, etc.
Purposes &Features
1.Compact in size and easy to install
2.Easy setting of final positions
3.Overhead production for motor
4.Quiet smooths operations
5.Multi choice with GEWIN wall bracket for installation
6.Automatic shutter length adjustment
7.Automatic swich-off in the event of jamming

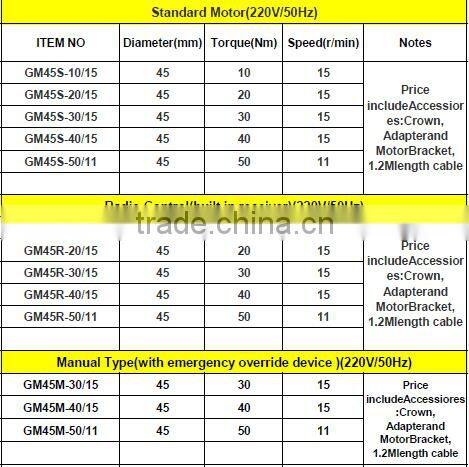

Tubular motor technical datas:
CERTIFICATIONS |
CE,CCC,ISO9001 |
OEM |
YES |
WARRANTY |
1 year from the day of shipment |
MOTOR INCLUDE |

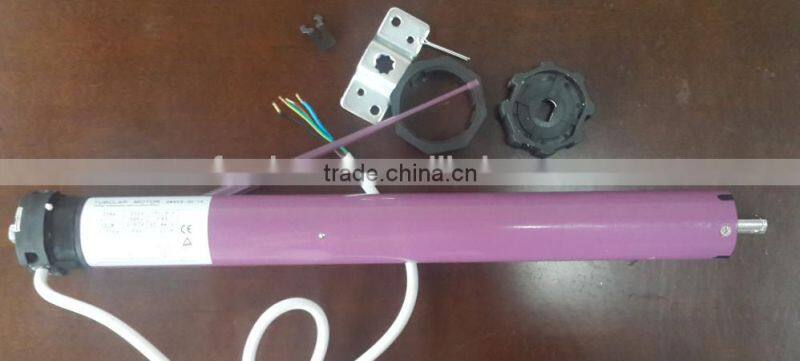

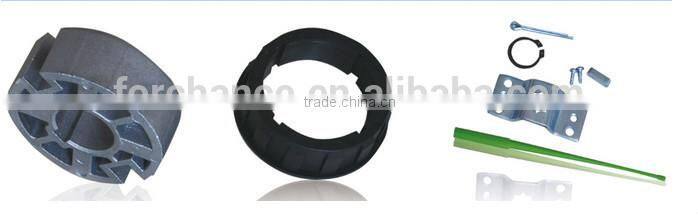

Crown, Adapterand MotorBracket, 1.2Mlength cable |
MOTOR CONTROL |
All motor can be radio controller by adding external controller |
MOTOR PACKAGE |
Carton (Export Standard Packing) |

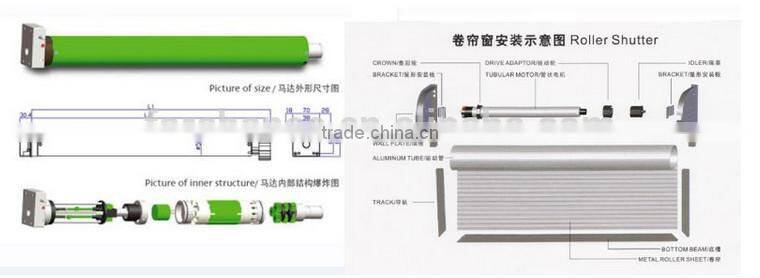

Tubular motor diagrammatic sketch:
Adjusting the Limits:
1.Before connecting the curtain to the barrel, run the motor to find the top limit position.
2.Reverse run the motor for 2/3 turns of the barrel then connect the curtain, the top limit is then easily found and adjusted.
3.Run the door in the close direction and if the door hits the floor before the limit comes in, back off the close limit a couple of times and again raise the door and then close it.
4.Repeat the stage until the bottom limit is found and adjusted correctly.
5.The motor has 5 turns limit to limit set from the factory.
6.For reference the "+" direction increases the travel of the door and the "- direction decreases the door travel.
Our Services:

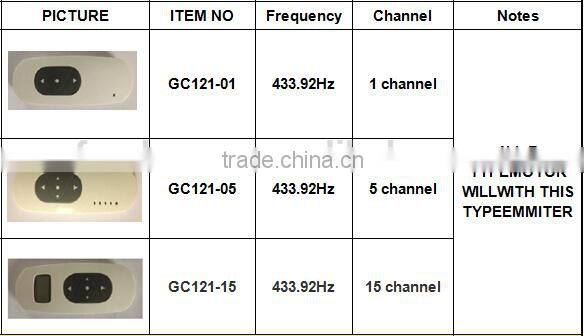

Motor control: All motor can be radio controller by adding external controller
Warranty time : 1 year warranty from the date of shipment.
Delivery time: 20-30 days after receive the deposit. (depends on the order quantity)
Contact Person: Maggie Fang 0086-13850001209/18030113078
Contact information:
If you have any questions about tubular motor,
Please feel free to contact us!
