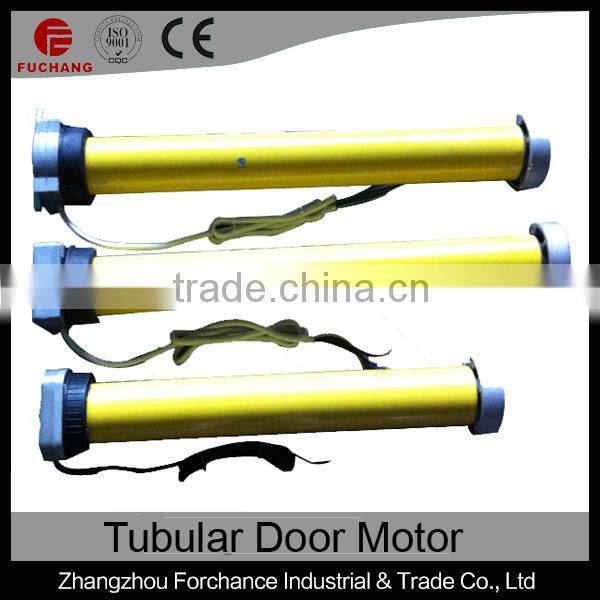

Roller Blind Tubular Motor FT45S-40/15

Tubular motor specifications:

ac tubular motor
Reliable quality ,High torque,Strong load
Precise limit , Electronic limit
Low noise ac tubular motor

AC Tubular motor advantages:

(1)Leading technology, novel design, advanced craft

(2)Precise limit , Electronic limit ,stable performance, low noise

(3)Mechanical limit switches, Adjustable limit switch

(4) convenient installation and operation

(5)Special design for solve power failure and overheat protection

All the main components are built-in it is simple,novel,safe,reliable and durable and whit small occupancy, high hiding performance, smooth and precise limit braking

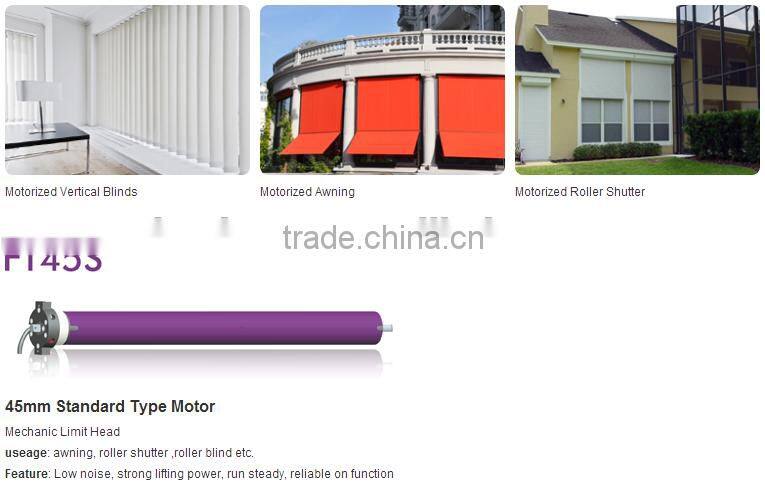

Application of AC tubular motor:

roller door ,roller shutter, roller blind, Awning, Sunshade, garage door, curtain, Projection screen, Drying rack etc

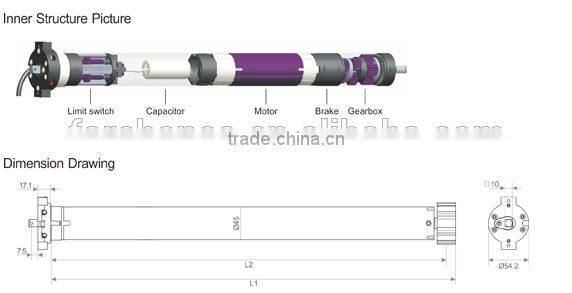

AC tubular motor FT45S structure:

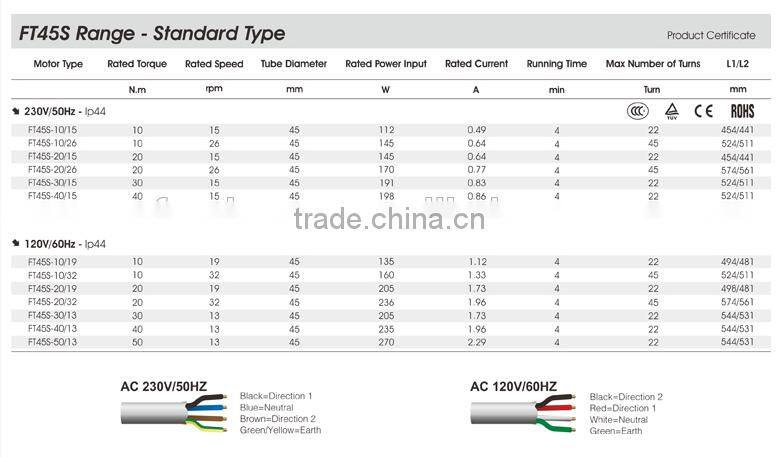

Technical Parmeter:

Tubular motor accessory part:

AC tubular motor package:

Quantity control of tubular motor:

Our tubular motor meet international requested standards, all of our product are one by one  tested by quantity control inspector,have a series strict finished examination process.

Q&A:

1. How to choose your tubular motor items for your doors or windows?
you can always calculate the lifting according to the formula: Load = (100*N.M.)/aluminum tube radius. So under the aluminum tube diameter of 100mm, usually the lifting power is double of the number of the N.M, such as 140N.M, it can lift 280kgs weight of doors or windows (100*140)/50=280kgs. If the tube diameter is smaller, then the lifting power will be
bigger. For instance, if your tube diameter is 80mm, then the lifting power for the model of FT59M140/7 is 350kgs. See the formula: (100*140)/40=350kgs

2. What is the difference between standar, manual and radio type?
For all these three types of motor, they are all mechanic limit. For standard motor, it's usually matched with switch. For manual motor, you can use switch to control the motor. Also, you can control the motor directly by using the hand crank. So if use this type of motor, you can open the garage door, roller door, or roller shutter when the power is off. we usually use an emitter to control the radio motor, as there is a receiver inside it.

3. OEM availability and color options
Our OEM service is acceptable, the MOQ is 500 sets. There are many color options for the motor tube. You can DIY yours.
.
4.How many wires of tubular motor?
The Radio / Radio & Manual type has 3 core wires,the Standard and Manual type has 4 core wires.

5. Warranty:
Our company provides six years warranty for standard products, two-year warranty for electronic products.

Our factury photo:

If you want to know more information about our products, please contact me freely, you will be high regarded!
