Home > Products > Waterproof LED Power Supply > 45W Contant Current Waterproof LED Power Supply
45W Contant Current Waterproof LED Power Supply
- Xiamen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | EVADA | |
| Model Number | CUF-045-070-FB2 | Output Power | 1 - 50W | |
| Output Type | Single | Input Voltage | 220V | |
| Output Voltage | 32V | Output Frequency | 50Hz | |
| Output Current | 0.7A |
Product Description

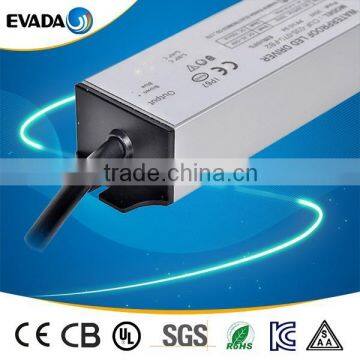

45W Contant Current Waterproof LED Power Supply
·Constant current mode power supply
·0.7A output,constant
·Protection:Short circuit/Overload/Over voltage/Over temperature
·Built in PFC function,PF>0.94
·Cooling by free air converction
·Suitable for all kinds of LED lingtings, LED street lighting and moving sign applications.
·IP67 design for indoor and outdoor installations
·Built-in constant current limiting circuit (C.C.+C.V.mode);
·Compliance to worldwide safety regulations for lighting
·2 years' warranty
MODEL | CUF-045-070-FB2 | |
OUTPUT | DC VOLTAGE | 32V |
CONSTANT CURRENT REGION | 24-50VDC | |
RATED CURRENT | 0.7A | |
RATED POWER | 45W | |
RIPPLE & NOISE | ±4% | |
VOLTAGE TOLERANCE | 10% | |
LOAD REGULATION | ±2.0% | |
INPUT | VOLTAGE RANGE | 90~264VAC |
FREQUENCY RANGE | 47~63Hz | |
POWER FACTOR | PF≥0.94/220VAC | |
EFFICIENCY(Typ.) | >88% | |
AC CURRENT | 0.5A Max | |
PROTECTION | OVER CURRENT | ±5% rated output current |
Protection type: Constant current limiting | ||
SHORT CIRCUIT | Hiccup mode | |
| Protection type: Shut down and latch off o/p voltage, re-power on to recover. | |
Over temperature | Protection type: Shut down o/p voltage, re-power on to recover. | |
ENVIRONMENT | WORKING TEMP. | -30°C~+70°C |
WORKING HUMIDITY | 10%RH~100%RH non-condensing | |
STORAGE TEMP., HUMIDITY | -40°C~+80°C | |
SAFETY& EMC | SAFETY STANDARDS | IEC/EN60598;IEC/EN61347;CB |
WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
EMC | EN55015/EN61547/EN61000 | |
OTHERS | IP RATING | IP67 |
MTBF | 60000Hours | |
DIMENSION | 140*38*25mm(L*W*H) | |
PACKING | 0.24KG/pc | |
