Waterproof LED Driver / Power Supply Constant Current With CE Certification

Name: Waterproof LED Driver / Power Supply Constant Current With CE Certification
Brand: Evada
SKU: 113489049
Availability: InStock

Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Evada

Model Number:

CUF-035-035-FB2

Xiamen Evada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Evada

Model Number CUF-035-035-FB2

Output Power Other, 1 - 50W, 35W

Output Type Single

Input Voltage Other, 90-264Vac

Output Voltage 70-100Vdc

Output Frequency 50/60Hz

Output Current 350mA

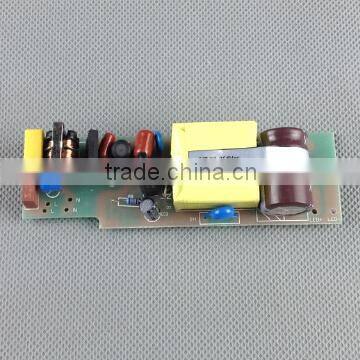

Waterproof LED Driver / Power Supply constant current with CE Certification

·Constant current mode power supply

·Protection:Short circuit/Overload/Over voltage/Over temperature

·Built in PFC function,PF>0.95

·Cooling by free air converction

·Suitable for all kinds of LED lingtings, LED street lighting and moving sign applications.

·IP67 design for indoor and outdoor installations

·Built-in constant current limiting circuit (C.C.+C.V.mode);

·Compliance to worldwide safety regulations for lighting

·3 years' warranty

MODEL		CUF-035-035-FB2
OUTPUT	DC VOLTAGE	70-100V
	CONSTANT CURRENT REGION	70-100VDC
	RATED CURRENT	350mA
	RATED POWER	35W
	RIPPLE & NOISE	±4%
	VOLTAGE TOLERANCE	10%
	LOAD REGULATION	±2.0%
INPUT	VOLTAGE RANGE	90~264VAC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR	PF≥0.95/220VAC
	EFFICIENCY(Typ.)	90%
	AC CURRENT	0.5A Max
PROTECTION	OVER CURRENT	±5% rated output current
	OVER CURRENT	Protection type: Constant current limiting
	SHORT CIRCUIT	Hiccup mode
		Protection type: Shut down and latch off o/p voltage, re-power on to recover.
	Over temperature	Protection type: Shut down o/p voltage, re-power on to recover.
ENVIRONMENT	WORKING TEMP.	-30°C~+70°C
	WORKING HUMIDITY	10%RH~100%RH non-condensing
	STORAGE TEMP., HUMIDITY	-40°C~+80°C
SAFETY& EMC	SAFETY STANDARDS	IEC/EN60598;IEC/EN61347;CB
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	EMC	EN55015/EN61547/EN61000
OTHERS	IP RATING	IP67
	MTBF	60000Hours
	DIMENSION	1403825mm(LWH)
	PACKING	0.24KG/pc
