Rolling door motor Speciafications:
AC/DC electric rolling shutter door motor
1. CE and ISO9001
2. Remote control.
3. Fireproof
4. Anti-theft
5. 100% copper wire
6. Revolving silently
7. Electric and manual operation
8. Low noise, small power consumption
9. Easy installation, strong power , Long service life

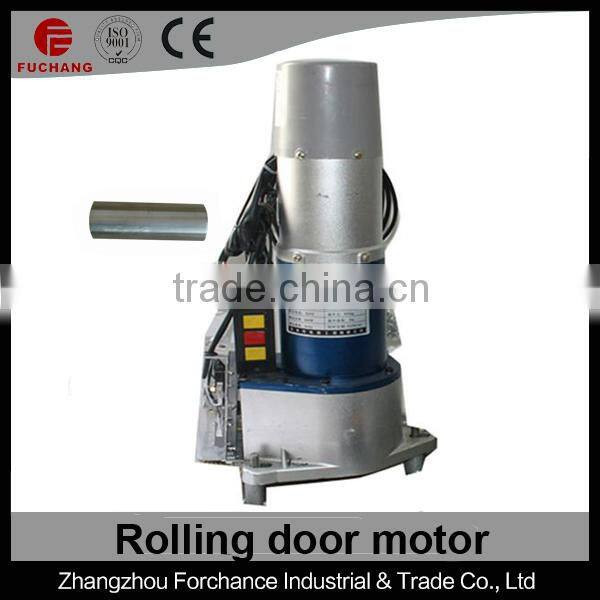

Rolling door motor picture:
Technical Specifications
| Model | Motor Power(W) | Max.lifting force(KG) | Max.hosting height(M) | Max.output Torque(N.W) | Rated Current(A) | Large Sprocket Reel Speed(R/MIN) | Chain No. |
| Power Supply(V/HZ): 220/50 | |||||||
| DJM-300-1P | 250 | 300 | 6 | 168 | 3.3 | 4.8 | 08B |
| DJM-400-1P | 250 | 400 | 6 | 225 | 3.3 | 4.8 | 08B |
| DJM-500-1P | 370 | 500 | 6 | 343 | 3.9 | 4.8 | 10A |
| DJM-600-1P | 370 | 600 | 6 | 412 | 3.9 | 4.8 | 10A |
| DJM-800-1P | 400 | 800 | 9 | 647 | 4.5 | 3.94 | 10A |
| DJM-1000-1P | 400 | 1000 | 9 | 809 | 4.5 | 3.75 | 12A |
| Power Supply(V/HZ): 380/50 | |||||||
| DJM-600-3P | 250 | 600 | 6 | 412 | 1.2 | 4 | 10A |
| DJM-800-3P | 300 | 800 | 9 | 647 | 2.0 | 3.94 | 10A |
| DJM-1000-3P | 400 | 1000 | 9 | 1102 | 2.3 | 3.74 | 12A |
| DJM-1300-3P | 600 | 1300 | 9 | 1372 | 3.0 | 4.4 | 12A |
| DJM-1500-3P | 600 | 1500 | 9 | 1610 | 3.2 | 5.2 | 16A |
High quality | 100% copper wire |
CERTIFICATIONS | CE,ISO9001 |
OEM/DEM | YES |
WARRANTY | 1 year from the day of shipment |
AC MOTOR INCLUDE | motor part, assembly bracket, remote control sets, flange & rings, metal key box. |
AC MOTOR LOAD CAPACITY | 450-500 SETS FOR ONE 20GP CONTAINER. |
MOTOR PACKAGE | TWO CARTONS WITH FOAM INSIDE , ONE FOR MOTOR, ONE FOR BRACKET |
