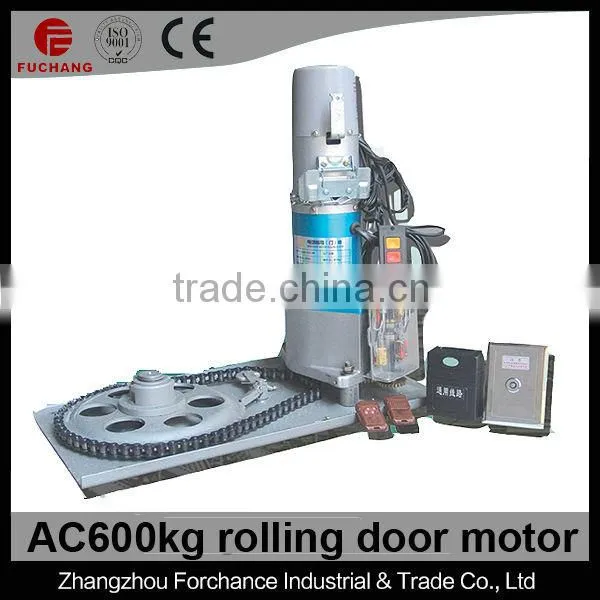

600kg-3P Electric Rolling Shutter Motor

Name: 600kg-3P Electric Rolling Shutter Motor
Brand: FUCHANG
SKU: 113487749
Availability: InStock

US$ 60 - 200 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

FUCHANG

Model Number:

FC-600-3P

Zhangzhou Forchance Industrial & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name FUCHANG

Model Number FC-600-3P

Left or right installation is ok
design controller with different funtions according to customers request.
300kgs/500kgs could add reserve power function
overheat protection:if the motor temperature is over 110 degreed centigrade, the motor stops working automatically, works again if temperature return below 70 degreed centigrade
It can be operated by electricity and manual
Durable compact design great elevating power with low noise
Could match infrared sensor or alarm system(optional)
Four relays inside the motor,four micro-active switch inside the limit system

Rolling Sutter Door Moter Main Specifications

Model	Motor power (W)	Max.lifting force (Kg)	Max.hoisting height (M)	Max external diameter of door (M)	Chain NO.	Weight of main engine (Kg)
Model	Motor power (W)	Max.lifting force (Kg)	Max.hoisting height (M)	Max external diameter of door (M)	Chain NO.	Weight of main engine (Kg)
Power supply(V/Hz): 220/50
FC-300-1P	200	300	6	0.42	10A	7.4
FC-500-1P	300	500	6	0.42	10A	11
FC-600-1P	300	600	6	0.48	10A	11
FC-800-1P	400	800	9	0.54	10A	16
Power supply(V/Hz): 380/50
FC-300-3P	180	300	6	0.42	10A	7.4
FC-500-3P	250	500	6	0.42	10A	11
FC-600-3P	250	600	6	0.48	10A	11
FC-800-3P	300	800	9	0.54	10A	16
FC-1000-3P	360	1000	9	0.54	12A	16
FC-1300-3P	600	1300	9	0.54	12A	22
