DJM-300KG-1P Reliable Electirc Roller Shutter Motor(100% Test)

Name: DJM-300KG-1P Reliable Electirc Roller Shutter Motor(100% Test)
Brand: FUCHANG
SKU: 113486869
Availability: InStock

US$ 1 - 249 MOQ: 1 Set

Key Specifications

Brand Name:

FUCHANG

Model Number:

DJM-300KG-1P

Type:

Asynchronous Motor

Zhangzhou Forchance Industrial & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Brand Name FUCHANG

Model Number DJM-300KG-1P

Type Asynchronous Motor

Frequency 50HZ

Output Power 180W

Protect Feature Drip-proof

Certification CCC, CE

AC Voltage 208-230 / 240 V

Place of Origin Fujian, China

Efficiency Other

Specifications

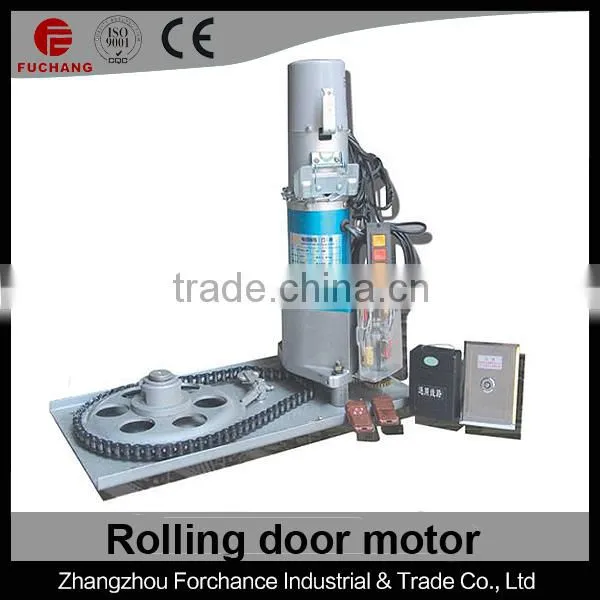

Electric roller shutter motor:
1. Item no.DJM-300KG-1P
2. Overheat protection
3.Electric and manual operations

Specialzied manufacturer for Electirc roller shutter motor

FuChang series rolling door motor structure and function features

Left or right installation is ok
design controller with different funtions according to customers request.
300kgs/500kgs could add reserve power function
overheat protection:if the motor temperature is over 110 degreed centigrade, the motor stops working automatically, works again if temperature return below 70 degreed centigrade
It can be operated by electricity and manual
Durable compact design great elevating power with low noise
Could match infrared sensor or alarm system(optional)
Four relays inside the motor,four micro-active switch inside the limit system

Main Specifications

Model	Motor power (W)	Max.lifting force (Kg)	Max.hoisting height (M)	Max external diameter of door (M)	Chain NO.	Weight of main engine (Kg)
Model	Motor power (W)	Max.lifting force (Kg)	Max.hoisting height (M)	Max external diameter of door (M)	Chain NO.	Weight of main engine (Kg)
Power supply(V/Hz): 220/50
FC-300-1P	200	300	6	0.42	10A	7.4
FC-500-1P	300	500	6	0.42	10A	11
FC-600-1P	300	600	6	0.48	10A	11
FC-800-1P	400	800	9	0.54	10A	16
Power supply(V/Hz): 380/50
FC-300-3P	180	300	6	0.42	10A	7.4
FC-500-3P	250	500	6	0.42	10A	11
FC-600-3P	250	600	6	0.48	10A	11
FC-800-3P	300	800	9	0.54	10A	16
FC-1000-3P	360	1000	9	0.54	12A	16
FC-1300-3P	600	1300	9	0.54	12A	22
