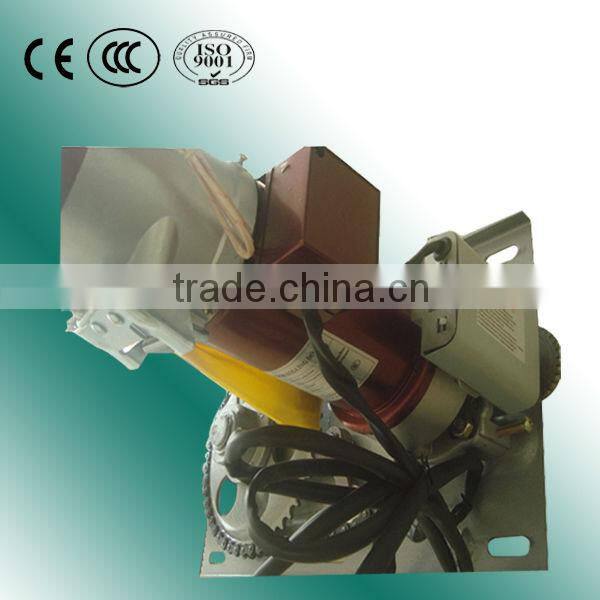

24V 500KG DC Motor for Roller Door

Specifications

DC motor for roller door
1.Low noise,low power consumption
2.Security protection
3.Light weight,Long life,high performance

DC Motor for Roller Door  Performance Introduction:

1. It can be opened and closed with manual/Remote control /anti-theft features without power.

2. The machine structure is compact and delicate, good appearance.

3. The motor is running smoothly and not to be heated easily.

4. The roller shutter motor and main machine have the power cord for equipment only.

The failure rate is low, repairing door without removing the motor.

5. Operating by mechanical limit , it is safe and reliable. The movement form up and down is being controlled automatically the limit switch.

6. It can be used still smoothly with instable voltage and power off.

7. The big character for the AC/DC-24V roller shutter motor: the roller shutter motor can be opened and closed normally when the battery is broken but with power on status.

8.Standard:CCC ,CE

Specifications:

Battery voltage: 12V × 2

Current: 10A

Battery capacity: 4.5AH

Maximum hoist torque : 168N.M

MODEL NO.	Max upgrade  height (M)	Max elevating (KG)	Power (w)	Current Rating (A)	Output Torque (N.m)	Rotation (r/min)	Chain No.
Battery voltage: 12V × 2
AC-DC300	6.5	300	180	3.9	168	5.7	10A
AC-DC500	6.5	500	200	3.9	343	5.7	10A
AC-DC600	6.5	600	250	3.9	412	5.7	10A

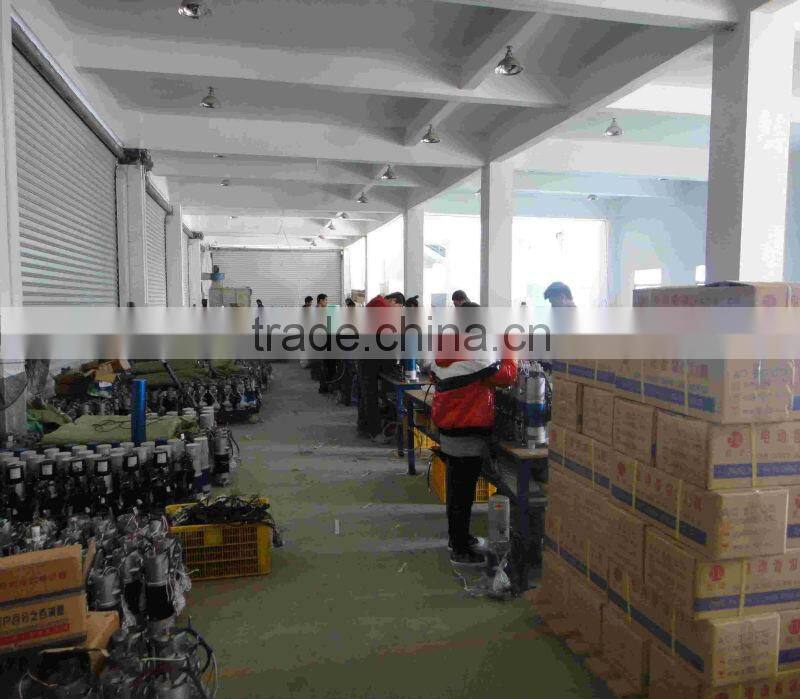

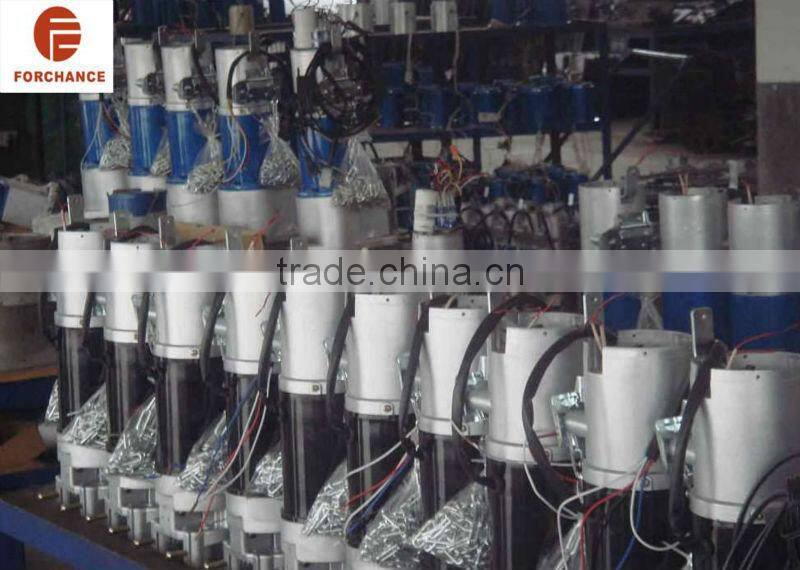

 Forchance Factory view:





Usuage of the DC 24V Rolling Door Motor:

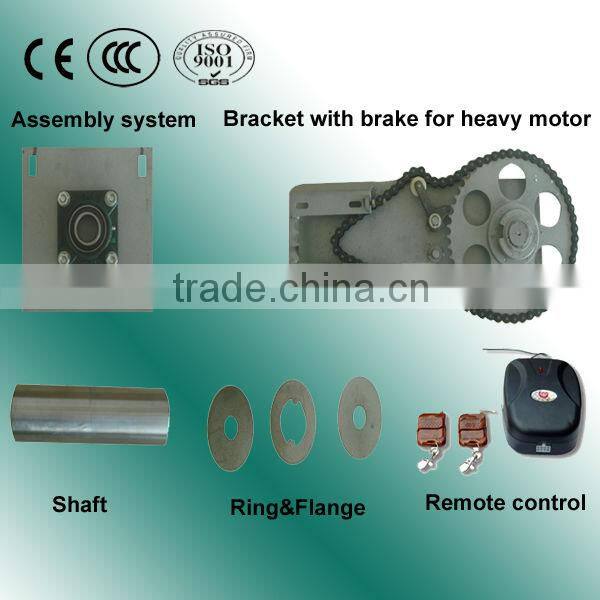

Bracket and Accessories for Dc rolling door motors:

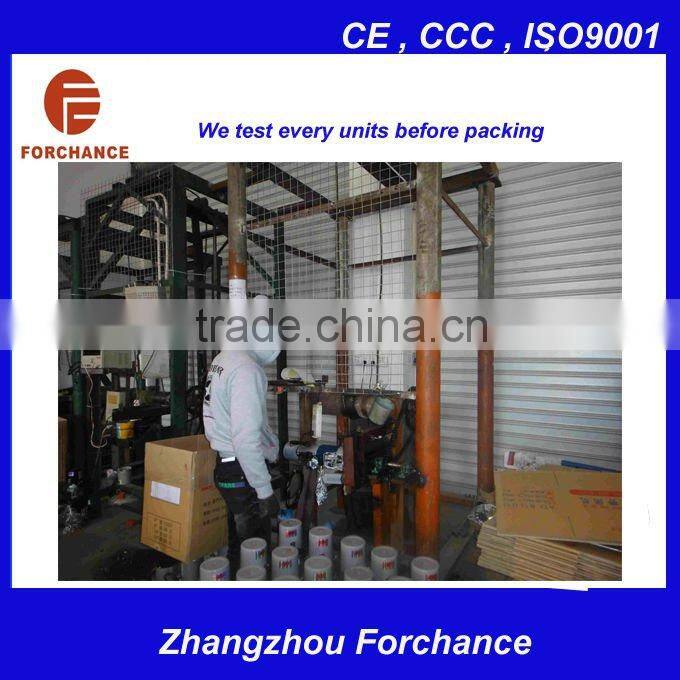

100% Testing before shipment to make sure the quality:













-       Durable - Reliable - Low maintenance Rolling door motor ,
