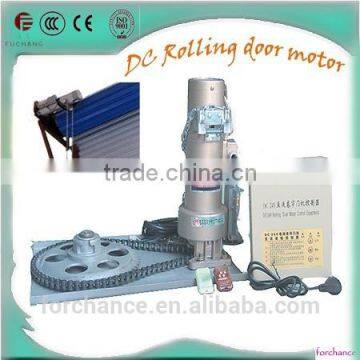

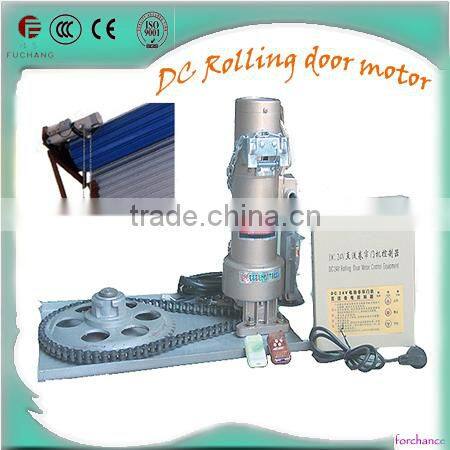

DC rolling door motor Speciafications:
DC 24V Rolling Door Motor equipped
1. Safety Device
2.Reserved Power Function
3.Manual Release
4.Remote Controller
Characteristics of our DC 24V Rolling Door Motor:
1) Left Or Right Installation Is Ok
2) Design Controller of DC 24V Rolling Door Motor With Different Functions According Customers Requests
3) Many Types Of DC 24V Rolling Door Motor For Choosing: 300kg/500kg/600kg Suitable For Different Weight Of Doors.
4) 300kg/500kg/600kg Could Add Reserved Power Function.
5) Overheat Protection: If DC 24V Rolling Door Motor Temperature Is Over 110 Degreed Centigrade, It Stops Working Automatically, Works Again If Temperature Return Below 70 Degreed Entigrade.
6) This DC 24V Rolling Door Motor Can Be Operated By Electricity And Manual.
7) Durable, Compact Design, Great Elevating Power With Low Noise.
8) Could Match Infrared Sensor Or Alarm System (Optional)
9) This DC 24V Rolling Door Motor Has Four Relays Inside The Motor, Four Micro-Active Switch Inside The Limit System.
Technical Specifications
Battery voltage: 12V × 2
Current: 10A
Battery capacity: 4.5AH
Maximum hoist torque : 168N.M
MODEL NO. | Max upgrade | Max elevating | Power | Current Rating | Output Torque | Rotation | Chain No. |
Battery voltage: 12V × 2 | |||||||
AC-DC300 | 6.5 | 300 | 180 | 3.9 | 168 | 5.7 | 10A |
AC-DC500 | 6.5 | 500 | 200 | 3.9 | 343 | 5.7 | 10A |
AC-DC600 | 6.5 | 600 | 250 | 3.9 | 412 | 5.7 | 10A |
24V DC rolling door motor detail:
Our services:
Garage door motors package:
Production Line
Certificate

About us
We have enough confidence to be your best partner in China !
You are welcome to send us E-mail or call us !
