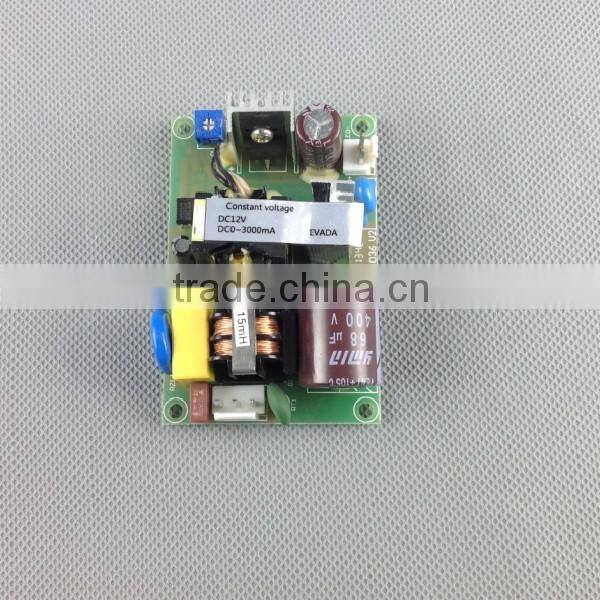

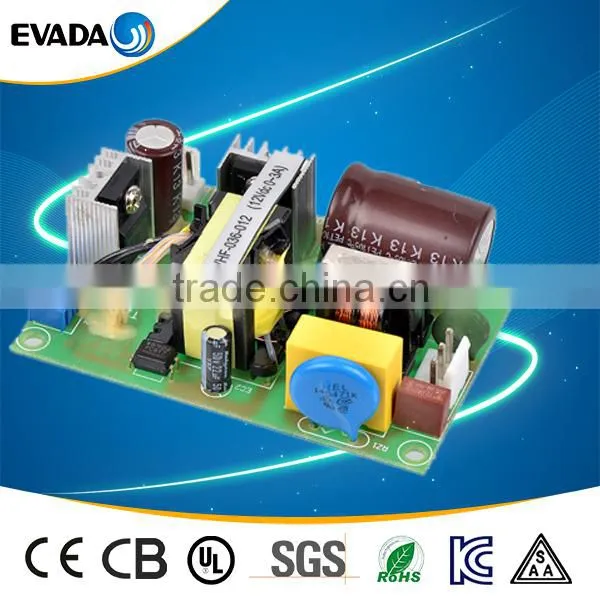

Open-frame LED power supply 12v, uninterrupted power supply, 12v power supply
12V LED Power Supply Open-frame Non-waterproof
MODEL | VUF-036-012 | |
OUTPUT | DC VOLTAGE | 12V |
CONSTANT CURRENT REGION | 12VDC | |
RATED CURRENT | 0-3000mA | |
RATED POWER | 36W | |
RIPPLE & NOISE | ±4% | |
VOLTAGE TOLERANCE | 10% | |
LOAD REGULATION | ±2.0% | |
INPUT | VOLTAGE RANGE | 90~264VAC |
FREQUENCY RANGE | 47~63Hz | |
POWER FACTOR | PF≥0.95/220VAC | |
EFFICIENCY(Typ.) | >87% | |
AC CURRENT | 3A Max | |
PROTECTION | OVER CURRENT | ±5% rated output current |
Protection type: Constant current limiting | ||
SHORT CIRCUIT | Hiccup mode | |
| Protection type: Shut down and latch off o/p voltage, re-power on to recover. | |
Over temperature | Protection type: Shut down o/p voltage, re-power on to recover. | |
ENVIRONMENT | WORKING TEMP. | -30°C~+70°C |
WORKING HUMIDITY | 10%RH~100%RH non-condensing | |
STORAGE TEMP., HUMIDITY | -40°C~+80°C | |
SAFETY& EMC | SAFETY STANDARDS | IEC/EN60598;IEC/EN61347;CB |
WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
EMC | EN55015/EN61547/EN61000 | |
OTHERS | IP RATING | |
MTBF | 60000Hours | |
DIMENSION | 75*51*25mm(L*W*H) | |
PACKING | 0.2KG/pc | |
Output Voltage can be customized! Please contact Judy Lin, my Skype: lin.judy5 Thanks in advance!
