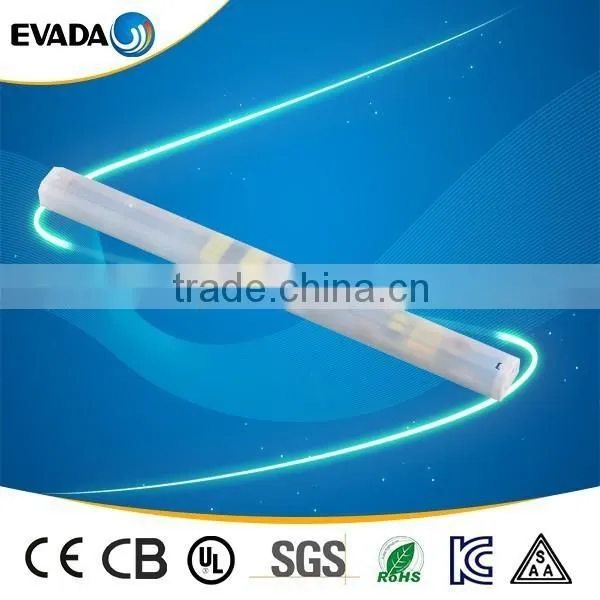

Slim Ip20 Led Power Driver 18w 24w 30w 36w 300ma

Name: Slim Ip20 Led Power Driver 18w 24w 30w 36w 300ma
Brand: Evada
SKU: 113482973
Availability: InStock

US$ 1 - 5 MOQ: 1000 Units

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Evada

Model Number:

CUF-018-035-T

Xiamen Evada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Evada

Model Number CUF-018-035-T

Output Power Other, 18W

Output Type Single

Input Voltage Other, 90-264V AC

Output Voltage 37-52V DC

Output Frequency 50Hz/60Hz

Output Current 350mA

slim ip20 led power driver 18w 24w 30w 36w 300ma

EVADA is a manufacturer which can make custom designed. Welcome OEM/ODM.

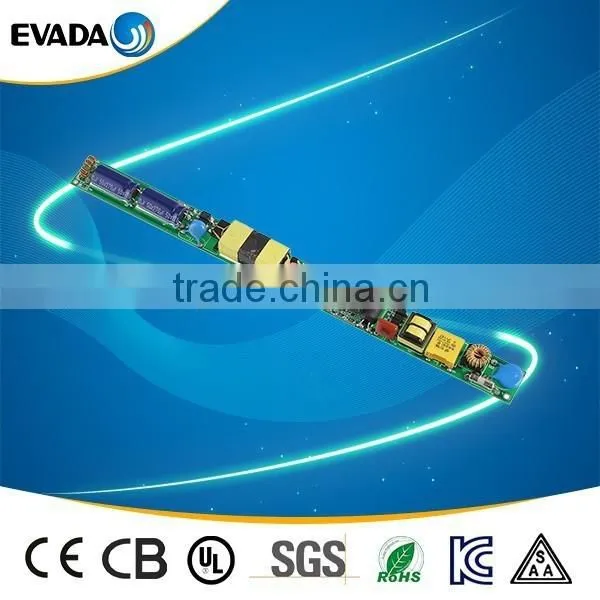

Built in isolated constant current power supply which is specially designed for T5/T8 LED Tubes.

T8 led tube driver,18-22w
Input :90-240VAC;
The output voltage can be adjusted according to the customer;
Output current can be adjusted according to the customer;
Can meet 60CM TUBE ,120CM TUBE ,150CM TUBE ;
Single-channel current output;
Output open circuit, short circuit protection, over voltage, over-current protection;
Dielectric Strength: 3000 V;
Low leakage current: less than 1mA;
Input surge current prevention;

Other items:

CUF-018W LED Tube Lights Driver (Output Current/Voltage are customizable)
Item No.	Input Voltage	Output Voltage	Output Current	Output Power	THD	Power factor	Efficiency	Size LWH mm
CUF-018-024-T	90-264V AC	45-80V DC	240mA	18W	≤20%	≥0.95	87%	2201712
CUF-018-035-T	90-264V AC	37-52V DC	350mA	18W	≤20%	≥0.95	87%	2201712
CUF-018-042-T	90-264V AC	30-42V DC	420mA	18W	≤20%	≥0.95	87%	2201712
CUF-018-050-T	90-264V AC	24-37V DC	500mA	18W	≤20%	≥0.95	87%	2201712
CUF-018-070-T	90-264V AC	17-25V DC	700mA	18W	≤20%	≥0.95	87%	2201712
