20w Open Frame Power Supply Constant Current 350ma

Name: 20w Open Frame Power Supply Constant Current 350ma
Brand: Evada
SKU: 113482981
Availability: InStock

US$ 1 - 5 MOQ: 500 Units

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Evada

Model Number:

CUF-020-035-T

Xiamen Evada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Evada

Model Number CUF-020-035-T

Output Power Other, 20W

Output Type Single

Input Voltage Other, 90-264V AC

Output Voltage 40-58V DC

Output Frequency 50Hz/60Hz

Output Current 350mA

20w open frame power supply constant current 350ma

EVADA is a manufacturer which can make custom designed. Welcome OEM/ODM.

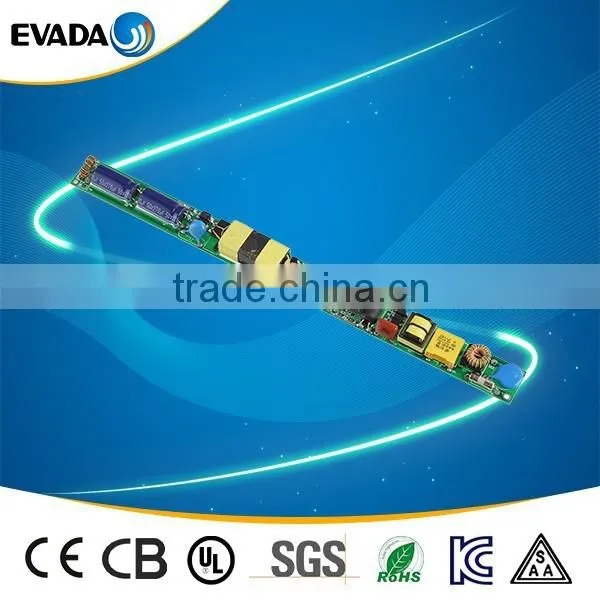

Built in isolated constant current power supply which is specially designed for T5/T8 LED Tubes.

T8 led tube driver,18-22w
Input :90-240VAC;
The output voltage can be adjusted according to the customer;
Output current can be adjusted according to the customer;
Can meet 60CM TUBE ,120CM TUBE ,150CM TUBE ;
Single-channel current output;
Output open circuit, short circuit protection, over voltage, over-current protection;
Dielectric Strength: 3000 V;
Low leakage current: less than 1mA;
Input surge current prevention;

Other items:

CUF-020W LED Tube Lights Driver (Output Current/Voltage are customizable)
Item No.	Input Voltage	Output Voltage	Output Current	Output Power	THD	Power factor	Efficiency	Size *LWH mm*
CUF-020-035-T	90-264V AC	40-58V DC	350mA	20W	≤20%	≥0.95	87%	2201712
CUF-020-048-T	90-264V AC	29-42V DC	480mA	20W	≤20%	≥0.95	87%	2201712
CUF-020-050-T	90-264V AC	26-40V DC	500mA	20W	≤20%	≥0.95	87%	2201712
CUF-020-070-T	90-264V AC	17-29V DC	700mA	20W	≤20%	≥0.95	87%	2201712
