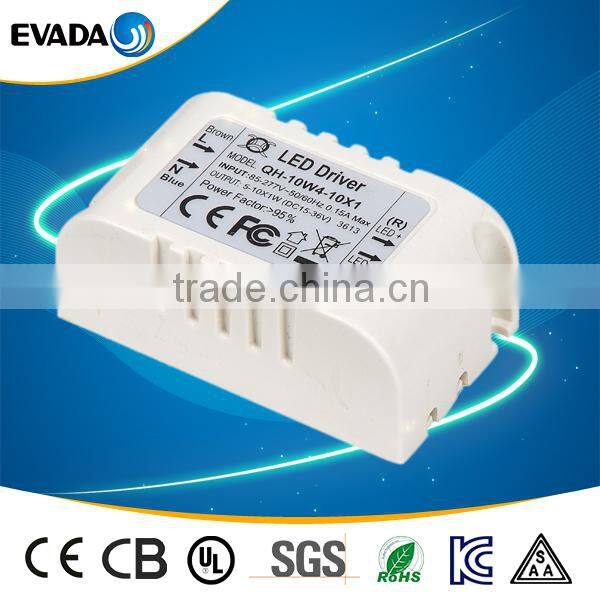

3 years warranty suitable for LED lighting 5w led driver
- 10000 Unit / Units per Month
- Xiamen
- T/T Credit Card
- Brand new power box 640C0022G01 York control system motherboard power supply GLC75D-CVG
- Power Supplies TVD1.3-15-03 Original Stock
- 10W 2.5KV Isolation Wide Input AC/DC Converters
- 30W Wide Voltage Input DC/DC Converters power supply
- Bently Nevada 3500/15
- 48V 3000W Telecom Power Supply Emerson R48-3000E3 Rectifier Module
Product Details
Place of Origin: | Fujian, China | Brand Name: | Evada | Model Number: | CHF-005-015-EC4 |
Output Power: | 1 - 50W | Output Type: | Single | Input Voltage: | Other, 90~264Vac |
Output Voltage: | 30VDC | Output Frequency: | 50-60Hz | Output Current: | 150mA |
Product Description
3 years warranty suitable for LED lighting 5w led driver
Features : | ||
1.Universal AC input / Full range (90VAC to 264VAC) | ||
2.Protections: Overload / Over voltage | ||
3.Cooling by free air convection | ||
4.Suitable for LED lighting and moving sign applications | ||
5.IP20 design for indoor or outdoor installations | ||
6.3 years warranty |
SPECIFICATION
MODEL | CHF-005-015-EC4 | |||||||||
OUTPUT | DC VOLTAGE | 30VDC | ||||||||
CONSTANT CURRENT REGION | 20-30VDC | |||||||||
RATED CURRENT | 150mA | |||||||||
RATED POWER | 5W | |||||||||
RIPPLE & NOISE (max.) | 200mVp-vp | |||||||||
LINE REGULATION | ±3% | |||||||||
LOAD REGULATION | ±3% | |||||||||
SETUP, RISE TIME | 1000ms, 80ms at full load 220VAC /176VAC | |||||||||
INPUT | VOLTAGE RANGE | 90-264VAC | ||||||||
FREQUENCY RANGE | 47-63Hz | |||||||||
POWER FACTOR | PF≥0.87/176VAC PF≥0.82/220VAC | |||||||||
EFFICIENCY (Typ.230Vac/50Hz) | ≥84% | |||||||||
AC CURRENT | 0.06A / 176VAC 0.05A / 220VAC | |||||||||
INRUSH CURRENT(max.) | COLD START 6A/230VAC | |||||||||
PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
OVER VOLTAGE | 40-42V | |||||||||
Protection type : Constant voltage limiting | ||||||||||
ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
SAFETY & EMC | SAFETY STANDARDS | UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD) | ||||||||
WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||||||
EMI CONDUCTION & RADIATION | Compliance to EN55015, EN55022 (CISPR22) Class B | |||||||||
HARMONIC CURRENT | Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3 | |||||||||
EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||||||||
OTHERS | MTBF | 30Khours. | ||||||||
DIMENSION | L57.8*W30*H22.2mm | |||||||||
NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | |||||||||
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||
Mechanical Specification
