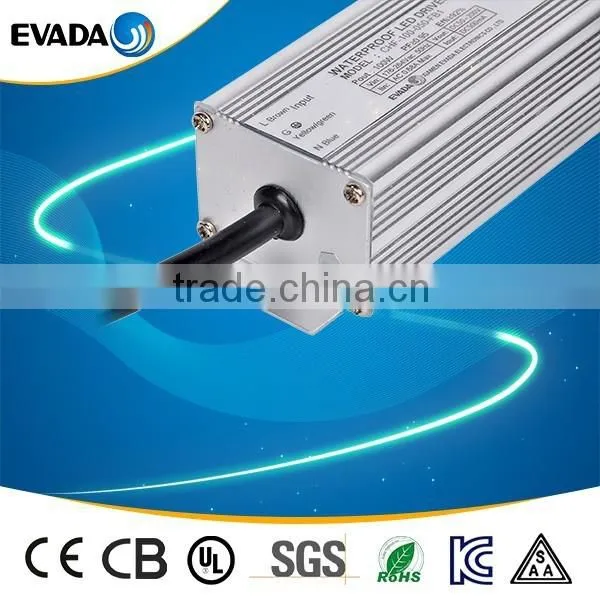

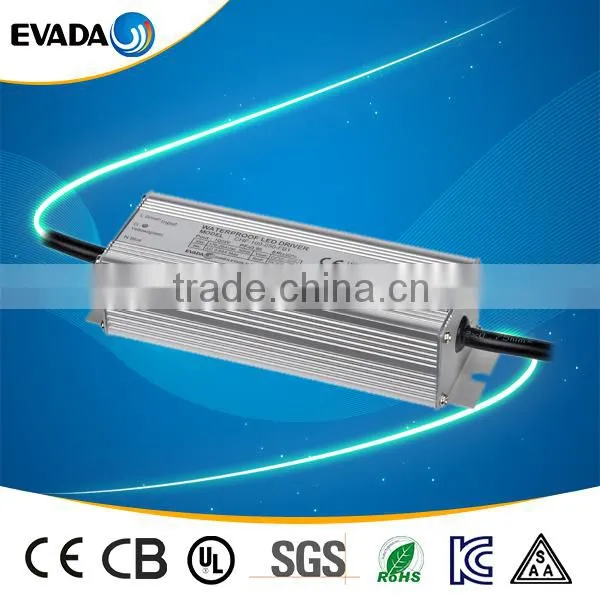

Power Supply for a Long Time Led Driver 350mA 300VDC
Negotiable
MOQ: 200 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Evada
Model Number:
CUF-100-035-FB1
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap High Quality Led Driver 100mA 150VDCNegotiableMOQ: 200 Units -
Wholesale Factory Sell 48v Led DriverNegotiableMOQ: 200 Units
-
Hot Sell Constant Current Limiting 24vdc Led DriverNegotiableMOQ: 200 Units
-
China Factory 32w Led Driver 350maNegotiableMOQ: 500 Units
-
45w Led Driver Constnat Current 500ma, 600ma,950maNegotiableMOQ: 500 Units
Place of Origin
Fujian, China
Brand Name
Evada
Model Number
CUF-100-035-FB1
Output Power
Other, 100w
Output Type
Single
Input Voltage
Other, 50-300VAC
Output Voltage
300VDC
Output Frequency
50Hz/60Hz
Output Current
350mA
Product Description
Power supply for a long time led driver 350mA 300VDC
| Features : | |||
| 1.Hight input voltage (176VACup to 264VAC) | |||
| 2. This product is the use of SCR short circuit protection output mode, the power supply for a long time to protect easily damaged | |||
| 3.Protections: Overload / Over voltage /short circuit | |||
| 4.Built-in active PFC function | |||
| 5.Cooling by free air convection | |||
| 6.Suitable for LED lighting and moving sign applications | |||
| 7.IP65/IP67 design for indoor or outdoor installations | |||
| 8.Compliance to worldwide safety regulations for lighting | |||
| 9.3 years warranty |
SPECIFICATION
| MODEL | CUF-100-035-FB1 | |||||||||
| OUTPUT | DC VOLTAGE | 300V | ||||||||
| CONSTANT CURRENT REGION | 50-300V | |||||||||
| RATED CURRENT | 350mA | |||||||||
| RATED POWER | 100W | |||||||||
| RIPPLE & NOISE (max.) | 2400mVp-p | |||||||||
| LINE REGULATION | ±0.5% | |||||||||
| LOAD REGULATION | ±1% | |||||||||
| SETUP, RISE TIME | 3000ms, 80ms at full load 220VAC /176VAC | |||||||||
| INPUT | VOLTAGE RANGE | 176-264VAC | ||||||||
| FREQUENCY RANGE | 47-63Hz | |||||||||
| POWER FACTOR | PF≥0.99/176VAC PF≥0.97/220VAC | |||||||||
| EFFICIENCY (Typ.230Vac/50Hz) | ≥93% | |||||||||
| AC CURRENT | 0.980A / 176VAC 0.780A / 220VAC | |||||||||
| INRUSH CURRENT(max.) | COLD START 4A/250VAC | |||||||||
| LEAKAGE CURRENT | <5mA / 240VAC | |||||||||
| PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 300-306V | |||||||||
| Protection type : Constant voltage limiting | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
| WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
| VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC |
SAFETY STANDARDS | UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD) | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55015, EN55022 (CISPR22) Class B | |||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3 | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||||||||
| OTHERS | MTBF | 30Khours. | ||||||||
| DIMENSION | L149*W46*H35mm | |||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
|
3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||

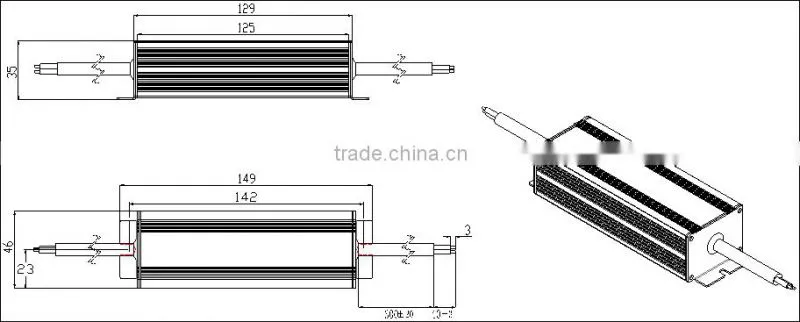

Mechanical Specification
Series Recommend
Packaging & Shipping
