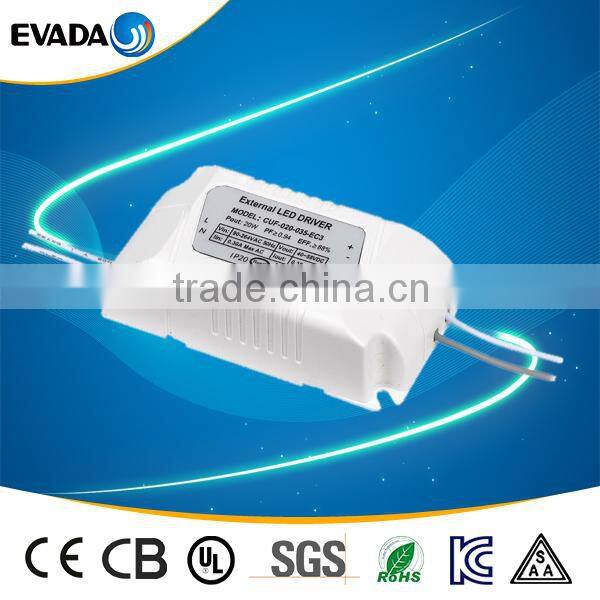

Practical and durable led drivers design 48v 300mA
- 10000 Unit / Units per Month
- Xiamen
- T/T Credit Card
- New Weidmuller power supply 639B0115H02, York Kunteng control system switch power supply 639B0115H03
- New Weidmuller Power Switching Power Supply 639B0115H01
- ME Series Modules High Stability High Voltage Power Supply for Microchannel Plates
- MMC Series DC High Stability Voltage Power Supply for Microchannel Plates (100V-600V,0.1W)
- Brand new power box 640C0022G01 York control system motherboard power supply GLC75D-CVG
- Power Supplies TVD1.3-15-03 Original Stock
Product Details
Place of Origin: | Fujian, China | Brand Name: | Evada | Model Number: | CUF-015-030-EC3 |
Output Power: | 1 - 50W | Output Type: | Single | Input Voltage: | Other, 30-50VAC |
Output Voltage: | 50VDC | Output Frequency: | 47-63Hz | Output Current: | 300mA |
Product Description
Practical and durable led drivers design 48v 300mA
Features : | ||
1.Universal AC input / Full range (90VAC to 264VAC) | ||
2.Protections: Overload / Over voltage | ||
3.Cooling by free air convection | ||
4.Suitable for LED lighting and moving sign applications | ||
5.IP20 design for indoor or outdoor installations | ||
6.3 years warranty | ||
7.Built-in active PFC function |
SPECIFICATION
MODEL | CUF-015-030-EC3 | |||||||||
OUTPUT | DC VOLTAGE | 50VDC | ||||||||
CONSTANT CURRENT REGION | 30-50VDC | |||||||||
RATED CURRENT | 300mA | |||||||||
RATED POWER | 15W | |||||||||
RIPPLE & NOISE (max.) | 2000mVp-vp | |||||||||
LINE REGULATION | ±5% | |||||||||
LOAD REGULATION | ±5% | |||||||||
SETUP, RISE TIME | 3000ms, 80ms at full load 220VAC /176VAC | |||||||||
INPUT | VOLTAGE RANGE | 90-264VAC | ||||||||
FREQUENCY RANGE | 47-63Hz | |||||||||
POWER FACTOR | PF≥0.96/110VAC PF≥0.91/220VAC | |||||||||
EFFICIENCY (Typ.230Vac/50Hz) | ≥87% | |||||||||
AC CURRENT | 0.160A / 110VAC 0.090A / 220VAC | |||||||||
INRUSH CURRENT(max.) | <150mA | |||||||||
PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
OVER VOLTAGE | 58-60V | |||||||||
Protection type : Constant voltage limiting | ||||||||||
ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
SAFETY & EMC | SAFETY STANDARDS | UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD) | ||||||||
WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||||||
EMI CONDUCTION & RADIATION | Compliance to EN55015, EN55022 (CISPR22) Class B | |||||||||
HARMONIC CURRENT | Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3 | |||||||||
EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||||||||
OTHERS | MTBF | 30Khours. | ||||||||
DIMENSION | L75.2*W38.4*H24mm | |||||||||
NOTE | 1. All parameters NOT specially mentioned are measured at 12VAC input, rated load and 25 of ambient temperature. | |||||||||
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||
Mechanical Specification
