Slim Led Driver 18w Constant Current 320ma

Name: Slim Led Driver 18w Constant Current 320ma
Brand: Evada
SKU: 113482409
Availability: InStock

Negotiable MOQ: 500 Units (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Evada

Model Number:

CUF-018-032-EC3

Xiamen Evada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Evada

Model Number CUF-018-032-EC3

Output Power Other, 18W

Output Type Single

Input Voltage Other, 90-265V

Output Voltage 30-55Vdc

Output Frequency 50Hz/60Hz

Output Current 320mA

Product Description

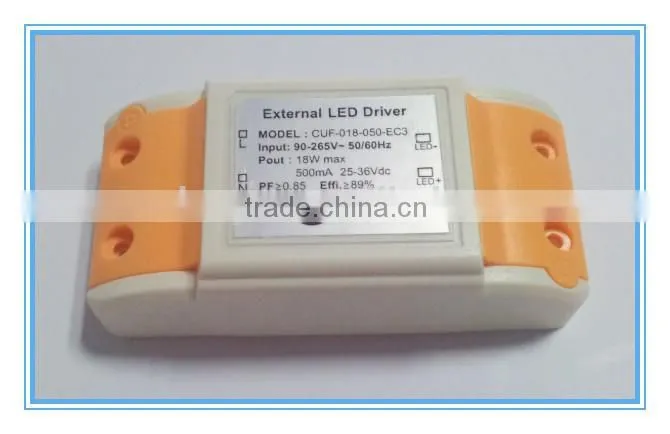

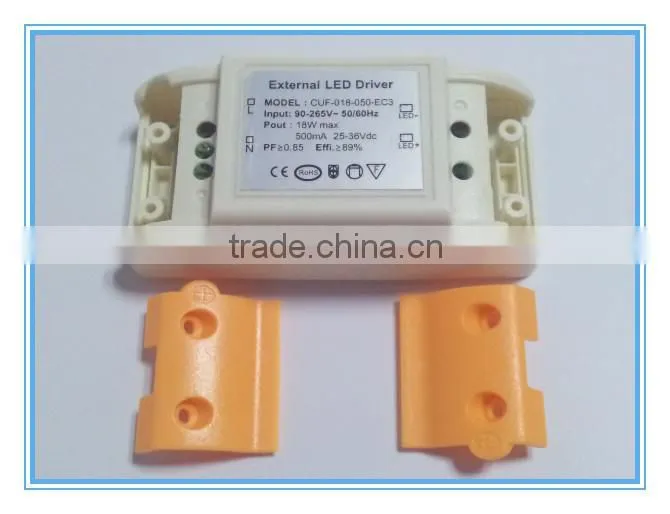

slim led driver 18w constant current 320ma

Features:

Small size,High efficiency,High reliability,Long lifetime;
IP40 rating;
Working temperature -25~+50°C
Protection:Overload,Short-circuit pratection,Over-temperature;
Typical efficiency:89%
Low standby power,min to 0.5W;
Start delay design,which can reduce the starting current when multiple simulatance start;
CE,EMC,IP40 certifide,ROHS compliant;
Low output current ripple.

Technical Parameters:

type: constant current, isolated
Packing: Plastic case IP40
Output power: 18W
Input voltages: 90-264V AC, 47 to 63Hz
Output voltages: 36-60V DC
Output current: 350mA
Power factor: ≥0.85
Efficiency: ≥89%
Constant current precision: ±3%
Output protection: OVP, OCP, short circuit protection, recover automatically after cancellation
Size: 93.5*45.5*27.5mm (L*W*H)

Applications:

Office lighting, Artwork lighting, Display case
Home lighting
Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
Hotel, Restaurant lighting
Other public lighting

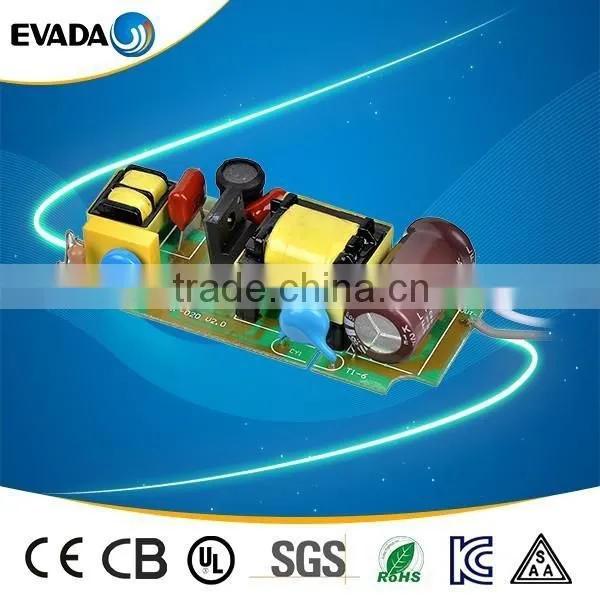

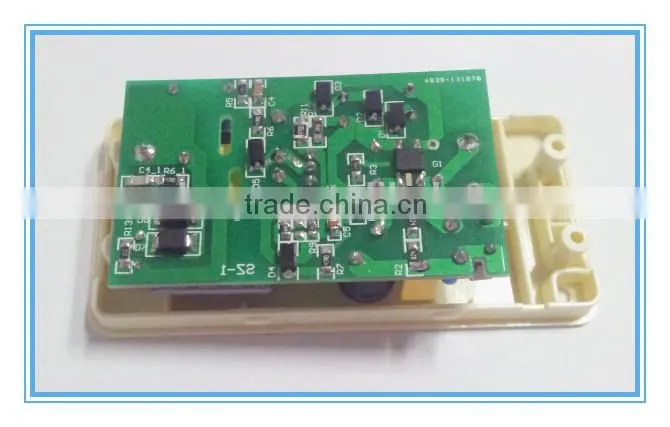

Details of inner PCB and components:

slim led driver

Mechanical Specification
