mini size 350mA18w led driver constant current for led lighting accessories

Features:

• Small size,High efficiency,High reliability,Long lifetime;
• IP40 rating;
• Working temperature -25~+50°C
• Protection:Overload,Short-circuit pratection,Over-temperature;
• Typical efficiency:89%
• Low standby power,min to 0.5W;
• Start delay design,which can reduce the starting current when multiple simulatance start;
• CE,EMC,IP40 certifide,ROHS compliant;
• Low output current ripple.

Technical Parameters:

1. type: constant current, isolated
2. Packing: Plastic case IP40
3. Output power: 18W
4. Input voltages: 90-264V AC, 47 to 63Hz
5. Output voltages: 36-60V DC
6. Output current: 350mA
7. Power factor: ≥0.85
8. Efficiency: ≥89%
9. Constant current precision: ±3%
10. Output protection: OVP, OCP, short circuit protection, recover automatically after cancellation
11. Size: 93.5*45.5*27.5mm (L*W*H)

Applications:

• Office lighting, Artwork lighting, Display case
• Home lighting
• Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
• Hotel, Restaurant lighting
• Other public lighting

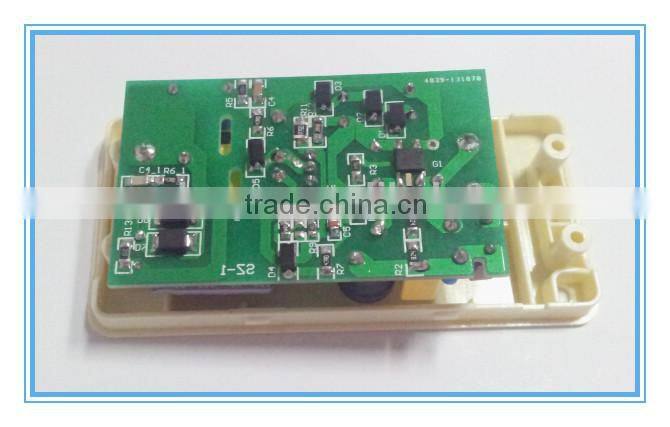

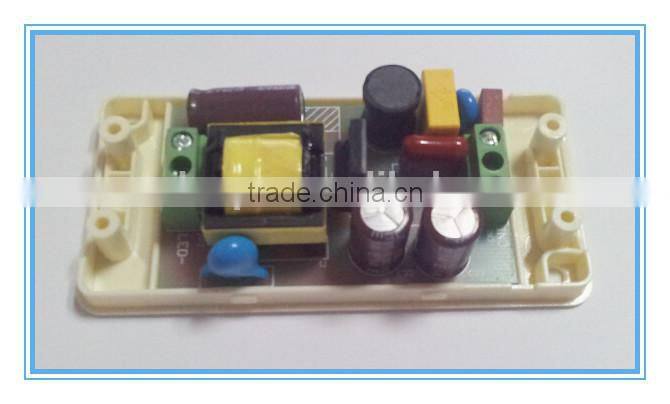

Details of inner PCB and components:

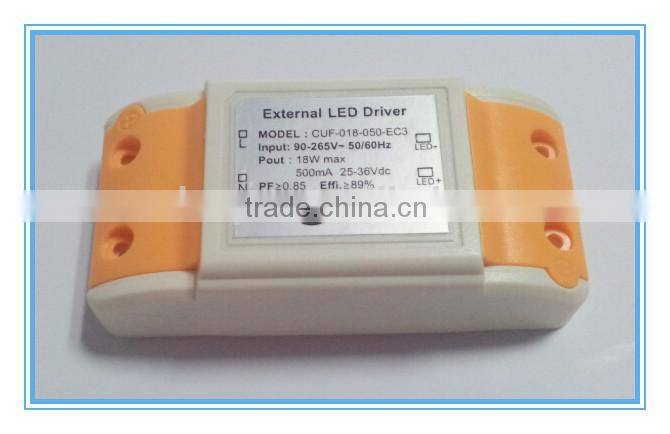

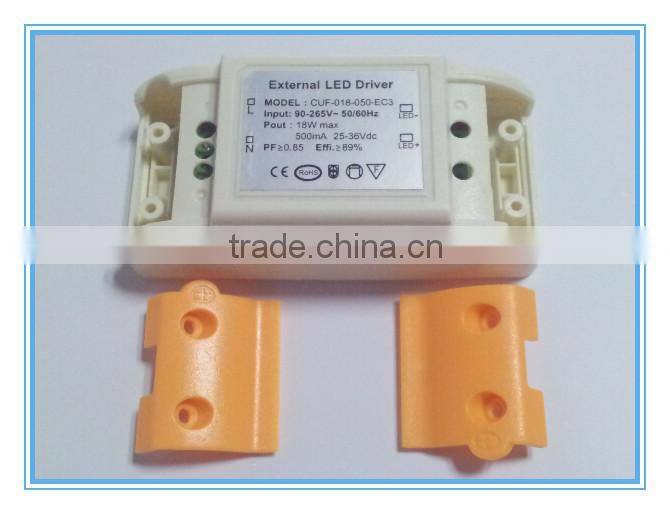

18w led driver

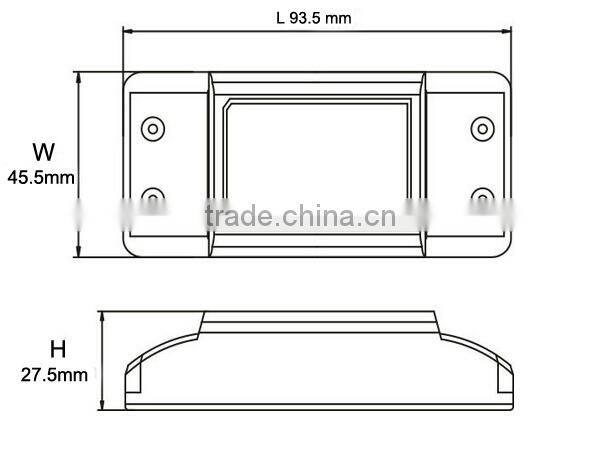

Mechanical Specification
