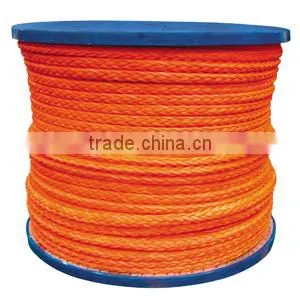

Help CenterRopes 7x19,fiber Rope Wire
US$ 10 - 20
MOQ: 10 Barrels
Key Specifications
Get Latest Price
Steel Grade:
steel
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ropes 7x19,rope Wire,ROPE WIREUS$ 10 - 20MOQ: 10 Barrels -
Supper Sling / WebbingUS$ 10 - 20MOQ: 10 Barrels
-
Steel Rope,steel Wire Rope,steel CableUS$ 10 - 20MOQ: 10 Barrels
-
ZSF30 Concrete Recovery Machine Made in ChinaUS$ 20,500 - 20,500MOQ: 1 Set
-
ZSF30 Concrete Reclaimer MachineUS$ 21,000 - 21,000MOQ: 1 Set
Steel Grade
steel
Standard
AISI, ASTM, BS, DIN, GB, JIS
Place of Origin
Shandong, China
Type
Drawn Wire
Application
Construction
Alloy Or Not
Non-alloy
Special Use
Cold Heading Steel
Model Number
Ropes 7x19
Brand Name
DSR
Specifications
Rotation - resistanceGood resistance to deformation
High structural stability
Strong against abrasion
Extended life of winc
PowerFlex 19
| Nominal Dia. | Minimum Breaking Load (Metric Ton) | Approx Weight | |||
|---|---|---|---|---|---|
| 180 KG/MM² | 200 KG/MM² | 220 KG/MM² | |||
| MM | INCH | 1770 N/MM² | 1960 N/MM² | 2160 N/MM² | KG/M |
| 9.53 | 3/8 | 7.3 | 7.9 | 8.8 | 0.44 |
| 10 | 8.0 | 8.7 | 9.7 | 0.48 | |
| 11.2 | 7/16 | 10.1 | 10.9 | 12.1 | 0.60 |
| 12 | 11.6 | 12.6 | 13.9 | 0.69 | |
| 12.7 | 1/2 | 13.0 | 14.1 | 15.6 | 0.78 |
| 13 | 13.6 | 14.7 | 16.4 | 0.81 | |
| 14 | 15.8 | 17.1 | 19.0 | 0.94 | |
| 14.3 | 9/16 | 16.5 | 17.8 | 19.8 | 0.98 |
| 15 | 18.1 | 19.6 | 21.8 | 1.08 | |
| 16 | 5/8 | 20.6 | 22.3 | 24.8 | 1.23 |
| 17.5 | 11/16 | 24.6 | 26.7 | 29.6 | 1.47 |
| 18 | 26.1 | 28.3 | 31.4 | 1.56 | |
| 19 | 3/4 | 29.1 | 31.5 | 34.9 | 1.74 |
| 20 | 32.2 | 34.9 | 38.7 | 1.93 | |
| 21 | 13/16 | 35.5 | 38.5 | 42.7 | 2.12 |
| 22 | 38.9 | 42.2 | 46.8 | 2.33 | |
| 22.2 | 7/8 | 39.7 | 43.1 | 47.8 | 2.38 |
| 24 | 15/16 | 46.4 | 50.2 | 55.8 | 2.77 |
| 25 | 50.3 | 54.5 | 60.5 | 3.01 | |
| 25.4 | 1 | 51.9 | 56.3 | 62.4 | 3.11 |
| 26 | 1-1/16 | 54.4 | 58.9 | 65.4 | 3.25 |
| 28 | 63.1 | 68.4 | - | 3.77 | |
| 28.6 | 1-1/8 | 65.8 | 71.3 | - | 3.94 |
| 30 | 1-3/16 | 72.4 | 78.5 | - | 4.33 |
| 31.8 | 1-1/4 | 81.4 | 88.2 | - | 4.87 |
| 32 | 82.4 | 89.3 | - | 4.93 | |
