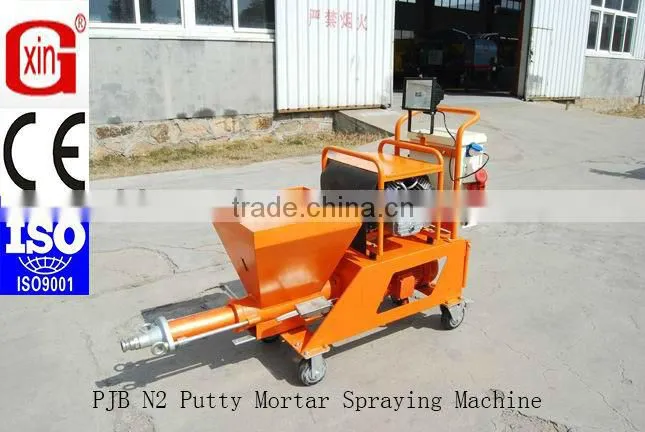

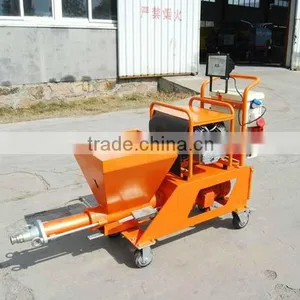

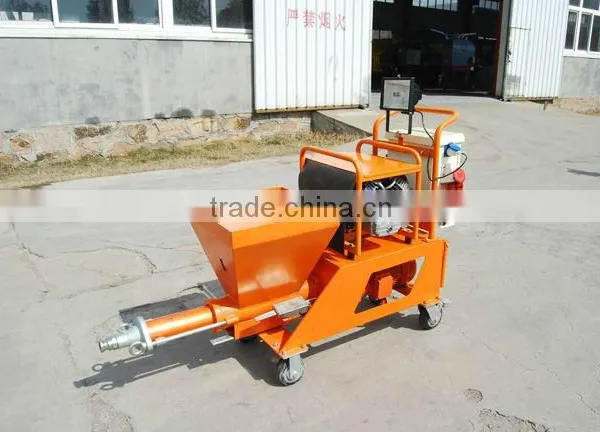

Help CenterPJB N2-N2 Putty Mortar Spraying Pump Machine
Related Products
-
Why Choose Perfect MPS55 Spraying PumpUS$ 8,000 - 8,200MOQ: 1 Set -
YHZS50 Concrete Mixing PlantUS$ 890,000 - 990,000MOQ: 1 Set
-
2013 New-tech N2 Putty Mortar Spraying MachineUS$ 19,000 - 20,000MOQ: 1 Set
-
The LASTEST NEW DXBS Series Fine Stone Concrete Pump(DXBS30)NegotiableMOQ: 1 Set
-
The LASTEST NEW DXBS Series Fine Stone Concrete Pump(DXBS40)NegotiableMOQ: 1 Set
Specifications
The new technonical machine N2 putty mortar spraying machineISO9001 & CE
Voltage;380V
Power:4 kw
Why it's the best answer for spraying?
Introduction:
N2 spraying pump/splitter is a new type of energy-saving and environmentally-friendly construction machinery developed by our company and enhanced on the basis of Germany advanced technologies. It’s completely applicable to all types of spraying constructions.
This set of spraying assembly, blending perfect design with excellent industrial technologies, is reliable, adaptable, strong and durable, and easy to operate. Therefore, it has been praised and recognized by insiders at all levels and strongly seconded and generalized by relevant leaders. Assorted with the current sound-and- thermal insulation system of the space truss structure like CS board, SB board, EPS board, and polyphenyl particle board, the mortar wall surface machine of these halftones is featured by easy use, high hardness, good adhesion, and no hollowness and cracks, distinct from the shortcomings of high difficulty, low hardness, insufficient adhesive, and likely hollowness and cracks of that of the manually-operated space truss structure.
Technical Parameters
Model |
PJB-N2 semi-automatic |
Voltage |
380V/220V |
Power |
4KW |
Displacement volume |
3-60L/min |
Delivery pressure |
30bar |
Delivery distance |
0-100m |
Delivery height |
30m |
Allowed maximum diameter of material |
3mm |
Hopper volume |
50L |
Feeding mode |
semi-automatic |
Weight of control case |
70kg |
Weight of delivery parts |
95kg |
Weight of hopper |
100kg |
Overall weight |
165kg |
Dimension |
1580mm*660mm*1600mm |
