2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice

2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice thumbnail-1
2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice thumbnail-2
2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice thumbnail-3
2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice thumbnail-4
2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice thumbnail-5
2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice thumbnail-6
2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice photo-1

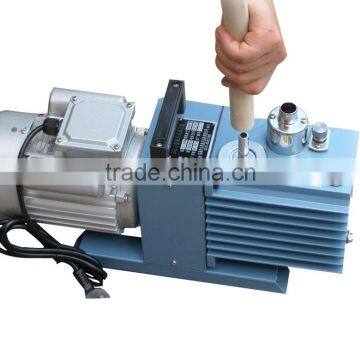

2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice photo-2

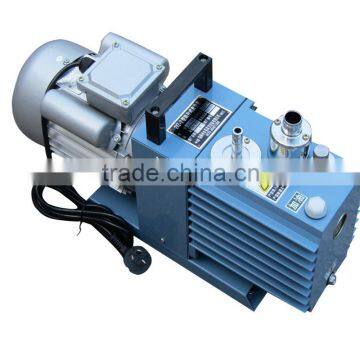

2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice photo-3

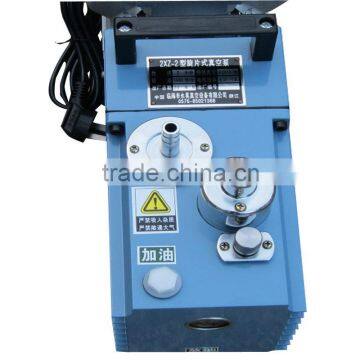

2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice photo-4

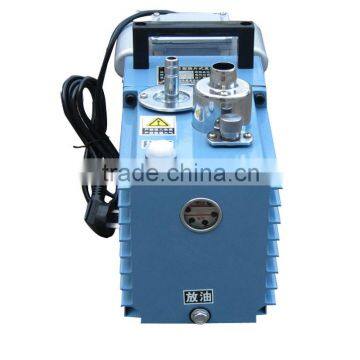

2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice photo-5

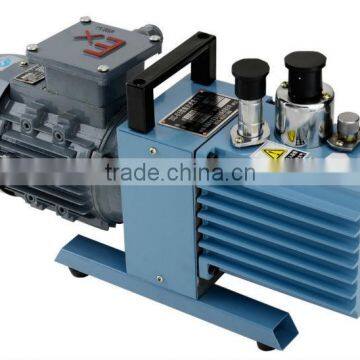

2XZ Series Rotary Vane Vacuum Pump Direct-drive Mini Electric Vacuum Pump Quality Choice photo-6
US$ 145 - 175 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
YanHe
Model Number:
2XZ-0.25/2XZ-0.5/2XZ-1/2XZ-2/2XZ-4 series
Contact Supplier Request Quote Chat Now
Shanghai Yanhe Instrument Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name YanHe
Model Number 2XZ-0.25/2XZ-0.5/2XZ-1/2XZ-2/2XZ-4 series
Theory Vacuum Pump
Structure Other, Rotary Vane Vacuum pump
Usage Other, booster/diffusion/molecular/maintain/titan pump
Power Electric
Standard or Nonstandard Standard
Fuel Other, electric
Pressure Other, ≤6.5 / ≤1.33
Application Other, booster/diffusion/molecular/maintain/titan pump

2XZ Series rotary vane vacuum pump direct-drive mini electric vacuum pump



Product Name:2XZ SERIES DIRECT-DRIVE ROTARY VANE VACUUM PUMP mini electric vacuum pump vacuum erection pump



 2XZ Series rotary vane vacuum pump direct-drive mini electric vacuum pump





2XZ series direct-coupled rotary vane vacuum pump





 This series pump is used to seal the container for pumping gas basic equipment. It can be used alone, can also be used for the booster pump, diffusion pump, molecular pump, maintain the pump, titanium pump vacuum pump, can be used for vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum, vacuum forming, coating, food packaging, printing, sputtering, vacuum casting, apparatus, instrument, refrigerator, air conditioner pipeline and laboratory vacuum operation and supporting the use of.

1, features

a, due to a complete design with low noise and precision processing, so as to achieve a low noise;
b, preparation for the special design of town gas valve, prevent pump oil mixed with water, to extend the pump oil service time;
c, the international similar product design, small volume, light weight, low noise, convenient start;
d, an automatic double anti-returning oil safety device, never returned to oil;
e, small diameter 2XZ-2, 2XZ-4, 2XZ-8B vacuum pump with vacuum drying box, freeze-drying machine, printing machinery;
f, with small caliber conversion connector, KF interface, the interface of the flange.





Parameters/Model

2XZ-0.25

2XZ-0.5

2XZ-1

2XZ-2

2XZ-4

Pumping speed m3/h(L/S)

50(HZ)

0.9(0.25)

1.8(0.5)

3.6(1)

7.2(2)

14.4(4)

60(HZ)

1.1(0.3)

2.1(0.6)

4.3(1.2)

8.6(2.4)

17.2(4.8)

Ultimate

pressure

(Pa)

Partial pressure

≤6×10-1

≤6×10-2

≤6×10-2

≤6×10-2

≤6×10-2

Total pressure

≤6.5

≤1.33

≤1.33

≤1.33

≤1.33

Rotary speed(r/min)

50(HZ)

1400

1400

1400

1400

1400

60(HZ)

1720

1720

1720

1720

1720

Moter power(kw)

0.12

0.18

0.25

0.37

0.55

Voltage(V)

220

220/380

220/380

220/380

220/380

Inlet diam(O.D.)(mm)

φ15

φ20

φ20

φ30

φ30

Noise level(dBA)

63

65

65

68

68

Oil capacity(L)

0.5

0.6

0.7

1

1.2

Dimensions(mm)

400×125×230

440×140×240

460×140×240

480×140×250

520×140×250

Gross weight/Net weight(Kg)

16/15

17/16

18/17

22/20

24/22



                        2XZ Series rotary vane vacuum pump direct-drive mini electric vacuum pump
