Home > Instruments & Meters > Test Instrument > Test Machine > MP300 Melting Point Apparatus for Paraffin Wax/silicone Rubber/polyurethane

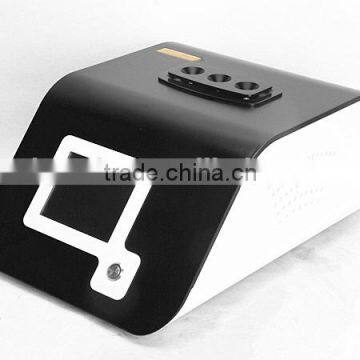

MP300 Melting Point Apparatus for Paraffin Wax/silicone Rubber/polyurethane
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
YanHe
Model Number:
MP300
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MP470 Automatic Video Melting Point Appratus Fiberglass Melting PointNegotiableMOQ: 1 Set -
P Series Automatic Polarimeter With Automatic Photoelectric Inspection TechnologyNegotiableMOQ: 1 Set
-
GL-9406 Portable UV Reflectometer Optical Time Domain ReflectometerNegotiableMOQ: 1 Set
-
GL-3120 Compact Desktop UV TransmissometerNegotiableMOQ: 1 Set
-
F96Pro Fluorescence Spectrophotometer Fluorescence Spectrometer Price CheapUS$ 4,100 - 4,400MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
YanHe
Model Number
MP300
Power
Electronic
Usage
Other, for the production of medicines, spices, dyes and measurement
Feature
MP300 Auto Point Apparatus is integrated with photoelectric detection, digital temperature display and other technologies, boasts automatic display of initial and final melts and other functions. In the temperature system, linearly calibrated platinum resistor is used as the detection device, offering efficient and accurate test process and results. The apparatus can be widely used in the chemical industry and medicine research and is essential for the production of medicines, spices, dyes and measurement of other organic crystal substances.
Characteristics:

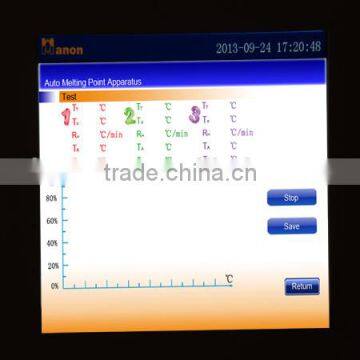

- Advanced true color VGA touch screen is easy for operation and observation;
- 50-level linear temperature rise design is satisfactory for varied temperature rise options;
- Three independent temperature detection systems ensure the detection of three samples of varied melting points;
- Wider temperature control scope and higher temperature accuracy;
- Optimal cooling rate and sample test speed;
- The variation curve of tested sample can be displayed in a timely manner
- RS232 interface, associated computer software and external computer control are available;
- Detailed test data can be stored;
- Exclusive integral design;
Specifications
| Melting point range | room tem.+5℃--400℃ |
| "Initial temperature" setting rate | ≤7 min(50℃--400℃) |
| ≤7.5 min(400℃--50℃) | |
| Temperature resolution | 0.1℃ |
| Repeatability | 0.2℃ at heating rate of 0.2℃/min |
| Temperature accuracy | ±0.4℃(<200℃),±0.7℃(<300℃) |
| Temperature gradients | 0.1--5℃/min(default 0.1℃/min, 50 classes) |
| Standard capillary size | I.D. 1.0mm, O.D. 1.4mm |
| Capacity per batch | 3pc./batch (3 different samples) |
| Control&Display model | LCD color touch screen |
| Power supply | 220VAC±10% 50Hz |
| Power | 300W |
| Net weight | 17kg |
| Dimensions | 523mmX332mmX216mm |
