GC102AF Analytical Gas Chromatograph Instrument for Lab

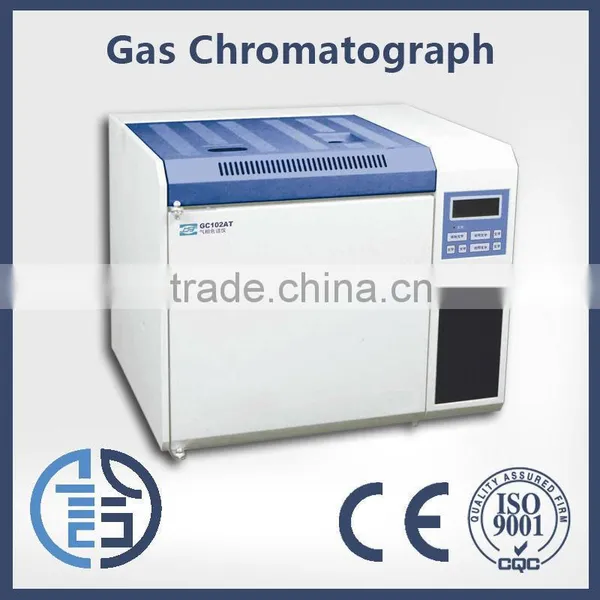

GC102AF Gas Chromatograph

FEATURES
Computer aided temperature control with high accuracy (less than ±0.11℃)
All control and application parameters, including operation parameters of the detector, can be set up through keyboard.
Functions, such as self-diagnosis, switch-off protection, document storage and transaction, limit temperature setup thermal
trip valve setup, and FID auto-ignition are incorporated inside of the instrument.
Large-screen LCD display, can accurately and clearly present all temperature control setup values, actual values, , sensitivity of FID magnifier, and etc.
The instrument supports packed column i.e. on-column sample injection. It is compatible with such devices as instantaneous vaporizing sample injection, gas sample injection with gas sample injection valves, and 0.53mm large diameter
capillary column direct sampler.
Open-end computer system can apply RS-232 interface and optional N-2000 chromatogram workstation to achieve dual
path communication control and data processing.
Large capacity column (300mm×280mm×270mm) is easy to be installed with packed column and large diameter capillary
column.

SPECIFICATIONS
Temperature Control:
1. Temperature control areas: gas chromatogram column, sampler, detector
2. Temperature control range: 15-399℃of room temperature (increment by 1℃)
3. Temperature control accuracy: less than ±0.1℃(measured at 200℃)
Flame Ionization Detector (FID):
1. Detection limit: Mt≤1*10-10g/s(sample C16)
2. Drift: ≤2*10-12A/h

OPTIONAL ACCESSORIES
N2000 Software with I/O port
OVERALL DIMENSION & WEIGHT
Shipping package dimension: 950*670*770mm
Net Weight: 45kg
Gross Weight: 65kg
