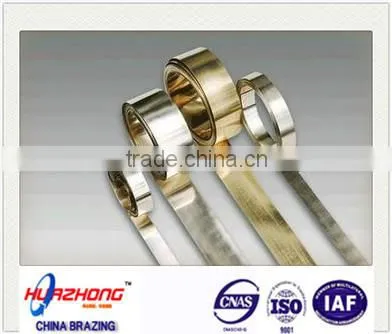

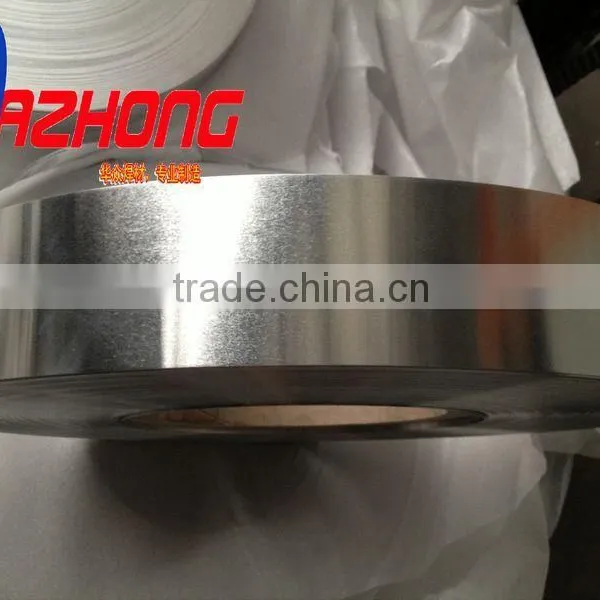

NAME:Silver brazing strip , cadmium free
DIN EN 1044: AG104
DIN 8513: L-Ag45Sn
EN ISO 3677: B-Ag45CuZnSn-640/680
Composition, typical analysis(%w/w)
| Ag | Cu | Zn | Sn |
| 44.0-46.0 | 26.0-28.0 | 23.5-27.5 | 2.0-3.0 |
Mechanical and physical properties
Working temperature: 670°C
Melting range: 640-680°C
Tensile strength: 350-430N/mm2
Elongation: 12%
Characteristics / Applications:
Cadmium free brazing alloy for gap brazing of alloyed and unalloyed steel, nickel and nickel alloys, malleable cast iron, copper and copper alloys. Approval: Marine code VG 81245, section 3. Also suitable for copper pipe installation according to DVGW work certificate GW2. Joint-brazing at working temperatures of max 200°C.
Anhui Huazhong Welding Material Manufacturing Co., Ltd is established in 2004, and located in Hefei——the central City of Anhui Province. We are specialized good in manufacturing and producing brazing materials. Our main products include silver-based brazing filler metal, copper-based brazing filler metal, aluminum-based brazing filler metal and associated brazing flux, flux-cored welding wire etc. Our brazing flux products included: silver welding paste, silver welding powder, copper welding paste, copper welding powder, aluminum welding paste, aluminum welding powder, spot welding paste (water), etc. The available shape of brazing alloys are rod, ring, sheet, strip, wire etc .
After-sale Service Warranty
1)If any quality problems such as manufacture, function or procedure occur within the guarantee period, We shall take responsibility and bear some theconomic losses.
2)If any quality problems such as occur within the guarantee period, we shall provide on line service after receive the buyer’s notice in 24 hours .
3)We will provide a lifetime favorable price to the buyers .
