Silver brazing rod/wire/ring free sample
- 500 Kilogram / Kilograms per Month
- shanggai
- T/T Credit Card
Product Details
Place of Origin: | Anhui, China | Brand Name: | HUAZHONG | Model Number: | HZ-Ag1B |
Material: | Other, silver/silver alloy | Length: | 500-1000mm | Diameter: | as required |
Application: | brazing&soldering |
Product Description
Main applications

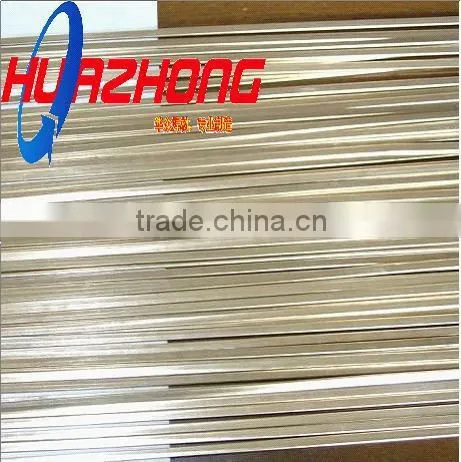

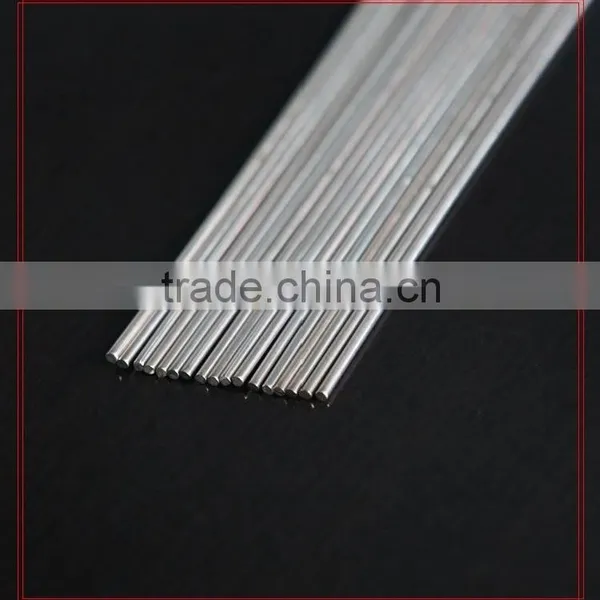

Brazing alloy Rods with 1% Ag
Factory Brand: HZ-Ag1B
This high quality welding and brazing alloy is an alloy of copper and zinc with small addition of silicium, silicon, nickel and manganese to assist deposition.This addition refines the alloy--HZ-Ag1B, lowers the melting range, improvingelectrical conductivity and increasing ductility.
Having a slightly lower melting range, is recommended for the brazing of galvanized steels, while protecting the zinc coat. Its high fluidity and good capillarity makes it suitable for brazing tricky works.
Heating can be achieved by induction, torch or by furnace.Most used in lock-smithing and work shops.A flux is necessary.
EN ISO 3677: B Cu 59 Zn Ag Si 850-870
Parameters | Analysis | Properties | Ø x L(mm) | manufacturer |

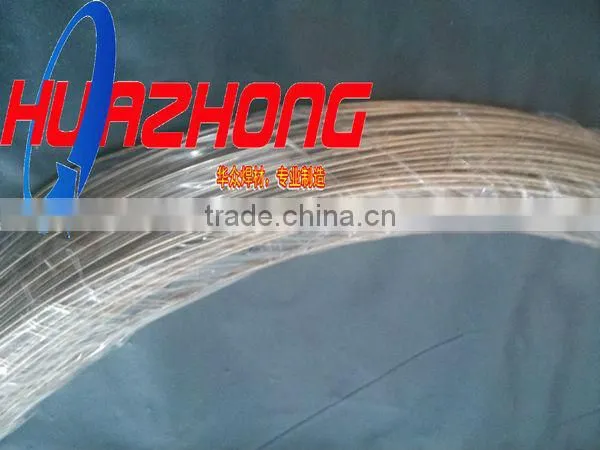

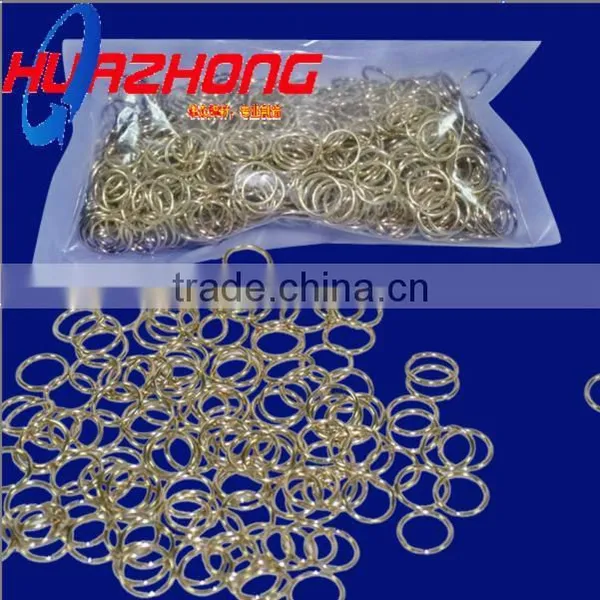

Melting range: 850-870 ° C | Cu: 58.0% Zn: balance Ag: 1.0% Others: Si,Mn,Sn | Rm: 480 Mpa A: 30% d: 8,5 g/cm³ | Bare and rods Ø 1,5 - 2 - 2,5 - 3 - 4 mm, standard length 500 mm and 1000mm. Wire:0.3-4.0mmAlso available in wire, ring strip and performs. | HUAZHONG |

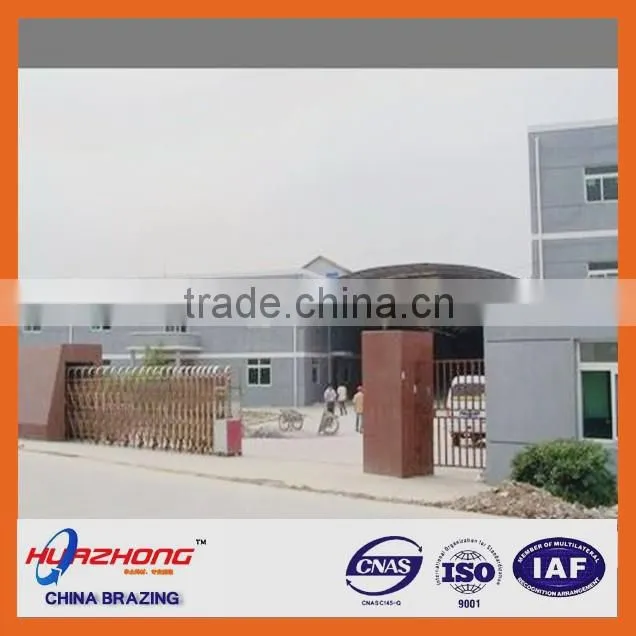

Anhui Huazhong Welding Material Manufacturing Co., Ltd is established in 2004, and located in Hefei——the central City of Anhui Province. We are specialized good in manufacturing and producing brazing materials. Our main products include silver-based brazing filler metal, copper-based brazing filler metal, aluminum-based brazing filler metal and associated brazing flux, flux-cored welding wire etc. Our brazing flux products included: silver welding paste, silver welding powder, copper welding paste, copper welding powder, aluminum welding paste, aluminum welding powder, spot welding paste (water), etc. The available shape of brazing alloys are rod, ring, sheet, strip, wire etc .
Q:Can you provide the sample?
A: To show our sincerity to cooperate with you, we can supply some sample for free, but the freight is on you.
