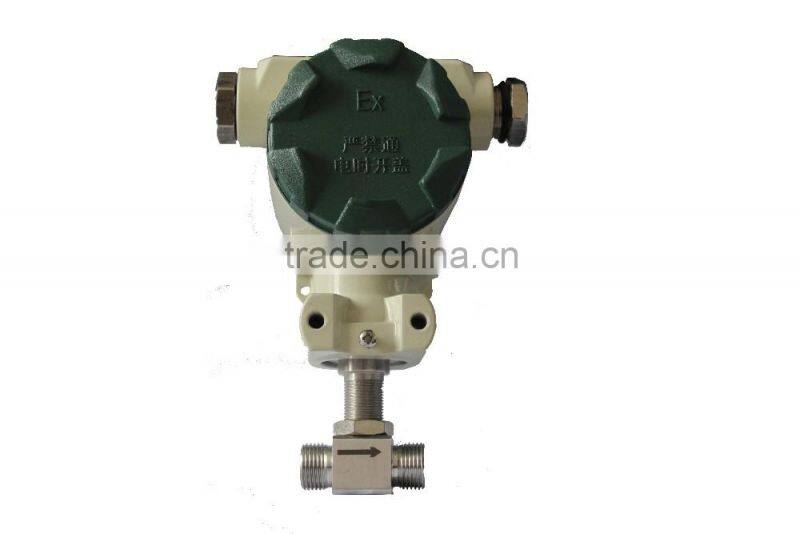

DN6, Pipe Connection 3/8"NPT, Pulse Out(terminal), Turbine Flow Meter
US$ 100 - 200
/ Piece
1 Piece(Min. Order)
- Shanghai
- Money Gram
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | HUGE | |
| Model Number | LWGY |
Product Description
Product Introduction

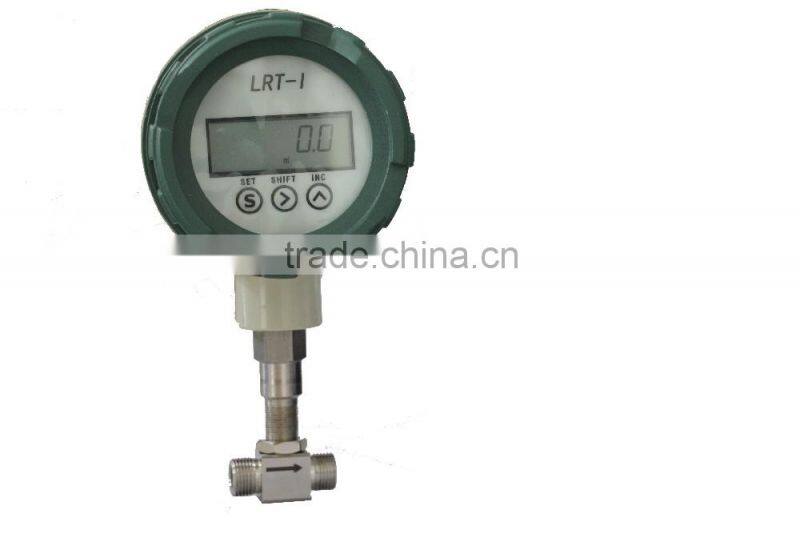

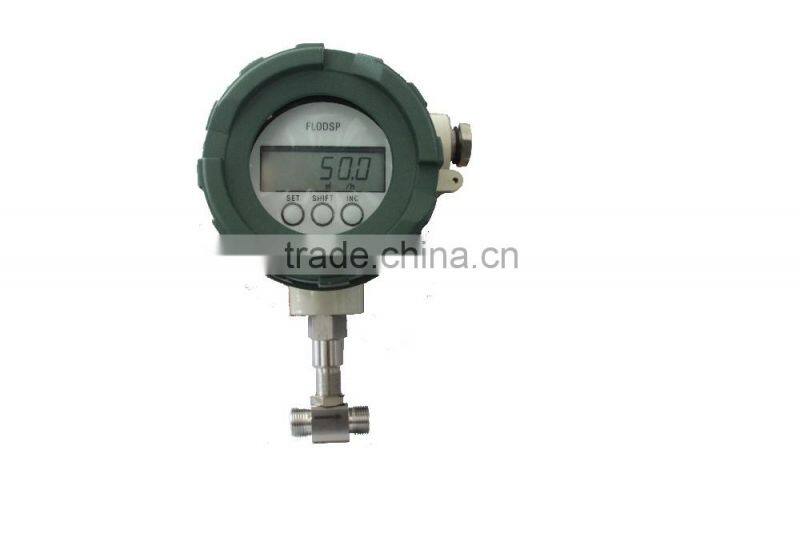

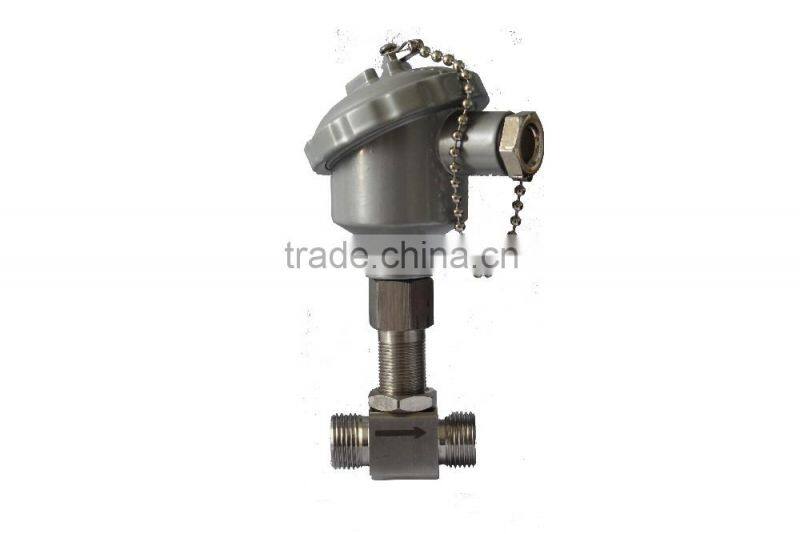

Model LWGY turbine flowmeter is a kind of precise flow measuring instrument, suitable for measuring the low viscosity medium, such as water, diesel, gasoline, etc.
With the corresponding flow integrating instrument it can be used to measure the rate of flow of fluid and the total amount. Widely used in petroleum, chemical industry, metallurgy, scientific research in the areas of measurement and control system.
Turbine flowmeter is divided into ordinary, sanitary, high precision and wear resistant (carbide), etc. Output shows there are many, such as pulse, (4-20) mA current, on the display and remote display, etc.
According to whether the explosion-proof type can be divided into ordinary and explosion-proof type.
With the corresponding flow integrating instrument it can be used to measure the rate of flow of fluid and the total amount. Widely used in petroleum, chemical industry, metallurgy, scientific research in the areas of measurement and control system.
Turbine flowmeter is divided into ordinary, sanitary, high precision and wear resistant (carbide), etc. Output shows there are many, such as pulse, (4-20) mA current, on the display and remote display, etc.
According to whether the explosion-proof type can be divided into ordinary and explosion-proof type.
Specification
·Size: DN6
·Medium: Noncorrosive low conductivity of liquid, such as: water, light oil
·Range:(0.1~0.6)m3/h
·Accuracy:1.0%
·Output signal: Square wave,Amplitude 22VDC
·Power: (5~28)VDC
·Temperature: (-20~+120)°C
·Max. pressure: 6.3MPa
·Pipe connection: 3/8”NPT
·Face to face length: 42mm
·Amplifier type: Aviation plug

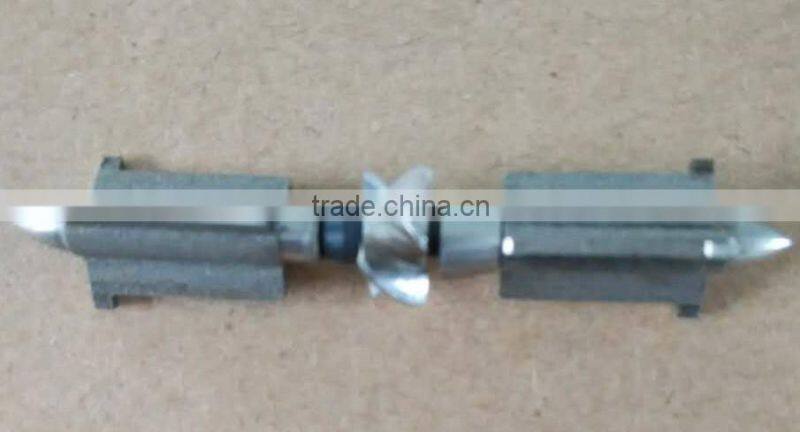

Wet Material
·Body: SUS304/SUS316
·Supporter: SUS304/SUS316
·Wheel: SUS430/SUS329J1
·Bearing: PTFE/Corundum
·Shaft: Tungsten carbide/SUS316L
Dimension

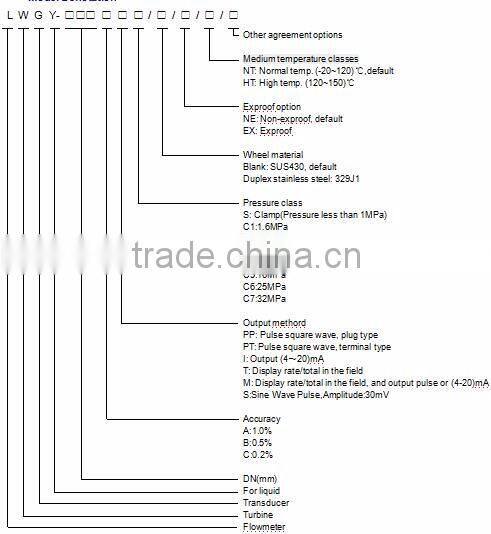

Model Description
LWGY-6APTC4/NE/NT

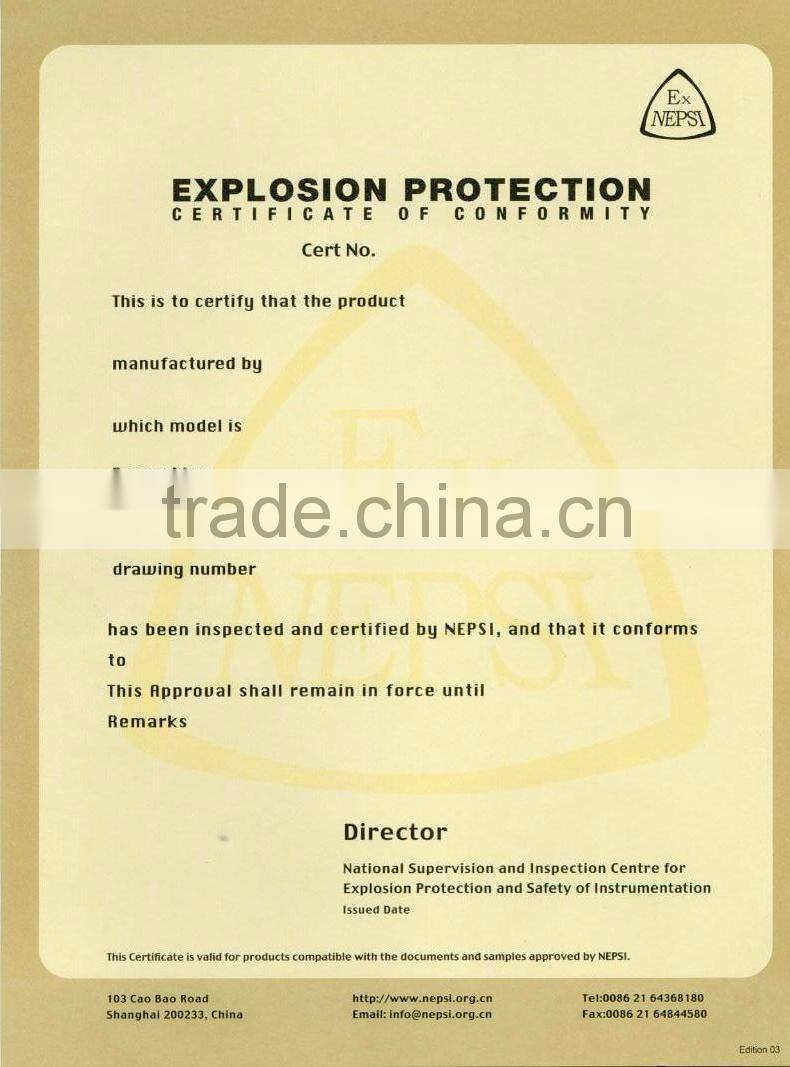

Certifications
Service
Warranty:One year warranty.
Delivery Time:Usually two weeks,if the quantity is large, negotiated with the user.
Packaging Details: Carton packaging .

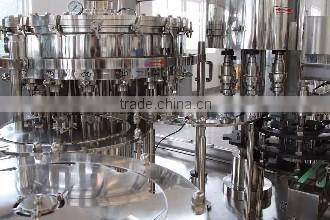

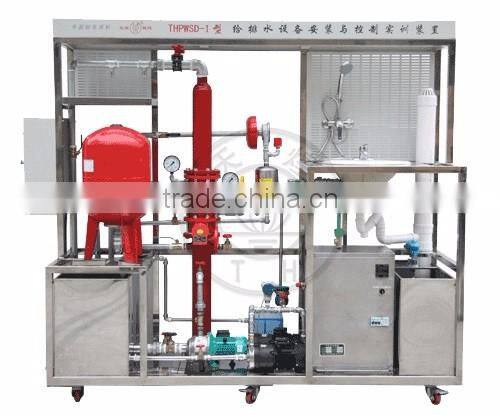

Application
