22mm IP65 Waterproof 2 Position Long Lever Illuminated Selector Switch Neon/LED (GLSL222)

22mm IP65 Waterproof 2 Position Long Lever Illuminated Selector Switch Neon/LED (GLSL222) photo-1

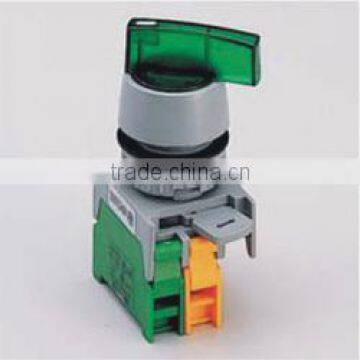

22mm IP65 Waterproof 2 Position Long Lever Illuminated Selector Switch Neon/LED (GLSL222) photo-2

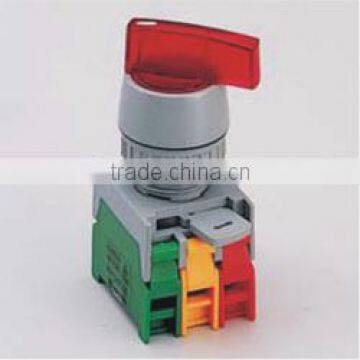

22mm IP65 Waterproof 2 Position Long Lever Illuminated Selector Switch Neon/LED (GLSL222) photo-3
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
AP, Auspicious
Model Number:
GLSL222
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Taiwan, China
Brand Name AP, Auspicious
Model Number GLSL222
Protection Level IP65
Max. Current 6A
Max. Voltage 120V

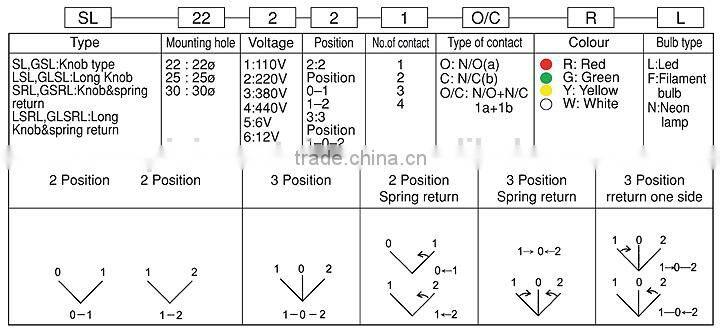

22mm Waterproof Illuminated Long Lever Selector Switch (GLSL-222)
1. CSA, UL, TUV approved

2. 1/C, 1/O, or 1O/C available

3. Red, Green, Yellow, Blue, White

4. 2 Position :

    1/O : 0 - 1

    1/C : 1 - 0

    1O/C : 1 - 2

5. Lamp Voltage:  12V, 24V, 110V, 220V, 380V, 440V

6. LED, Filament or Neon Lamp



GLSL22-1/O  0 - 1

22mm IP65 Waterproof 2 Position Long Lever Illuminated Selector Switch Neon/LED (GLSL222)    22mm IP65 Waterproof 2 Position Long Lever Illuminated Selector Switch Neon/LED (GLSL222)



GLSL22-1O/C  1 - 2

22mm IP65 Waterproof 2 Position Long Lever Illuminated Selector Switch Neon/LED (GLSL222)    22mm IP65 Waterproof 2 Position Long Lever Illuminated Selector Switch Neon/LED (GLSL222)





22mm IP65 Waterproof 2 Position Long Lever Illuminated Selector Switch Neon/LED (GLSL222)





Please visit .tw for more detail information.





22mm IP65 Waterproof 2 Position Long Lever Illuminated Selector Switch Neon/LED (GLSL222)
