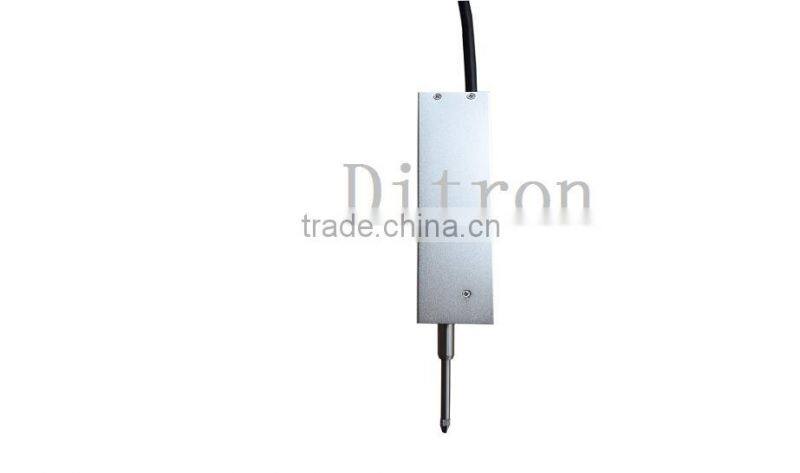

Ditron 0-15mm Micro-displacement Length Position Sensor
US$ 155 - 160
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Ditron
Model Number:
D30
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu/HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Sichuan, China
Brand Name
Ditron
Model Number
D30
Specifications
Measure range:0-15mm,0-30mm,0-50mmMaximum speed:300mm/S
Standard cable length:2m
D30 series grating micrometer sensor is made of 50lines/mm or 100 lines/mm grating glass. It can output sine wave signal or quartered square wave signal, which be different of 90ºphase.the power supply voltage can be :+5V/+12V/+24V.The feature of this sensor is :wide measurement range,high precision,easy to use,can be connected with raster count digital dispaly adapter card or Raster data adapter.
Specifications:
Measure range:0-15mm
Maximum speed:300mm/S
Measuring force:<2.5N
Opterating Temperature:10°c-40°c
Storage Temperature:0°c-55°c
Standard cable length:2m
