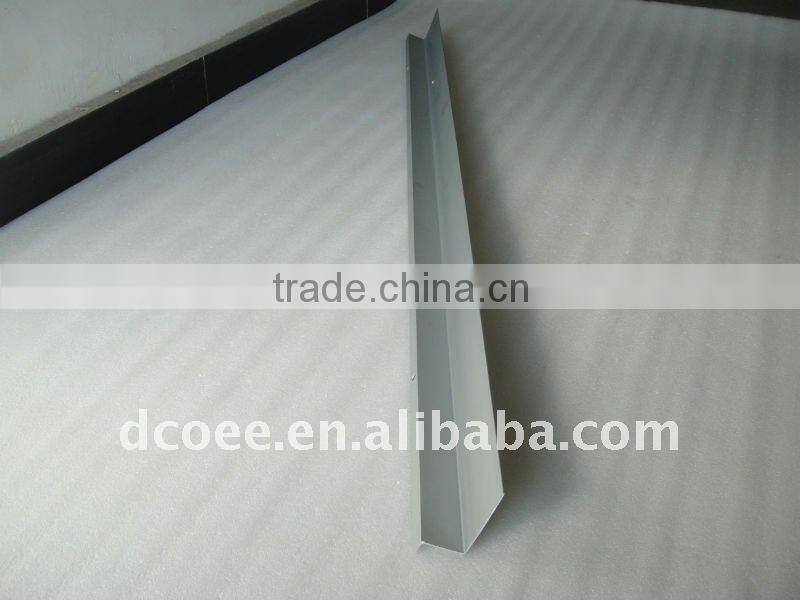

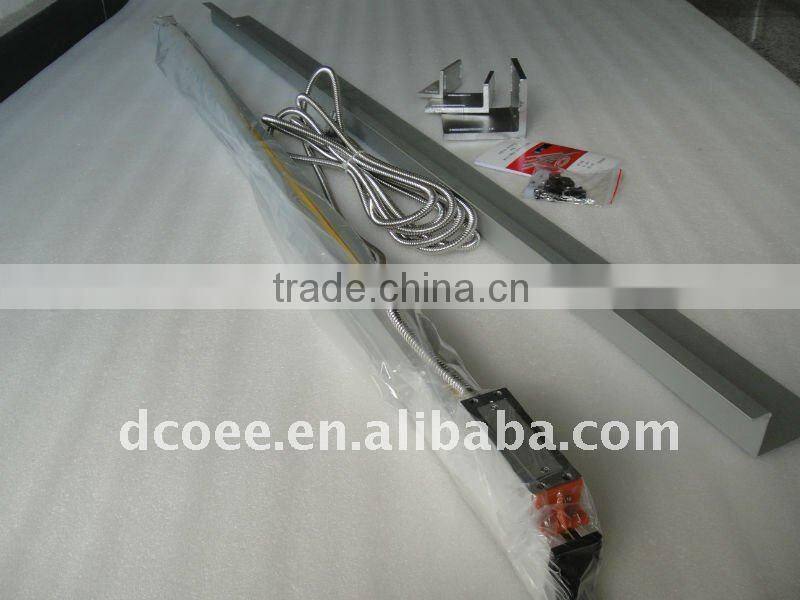

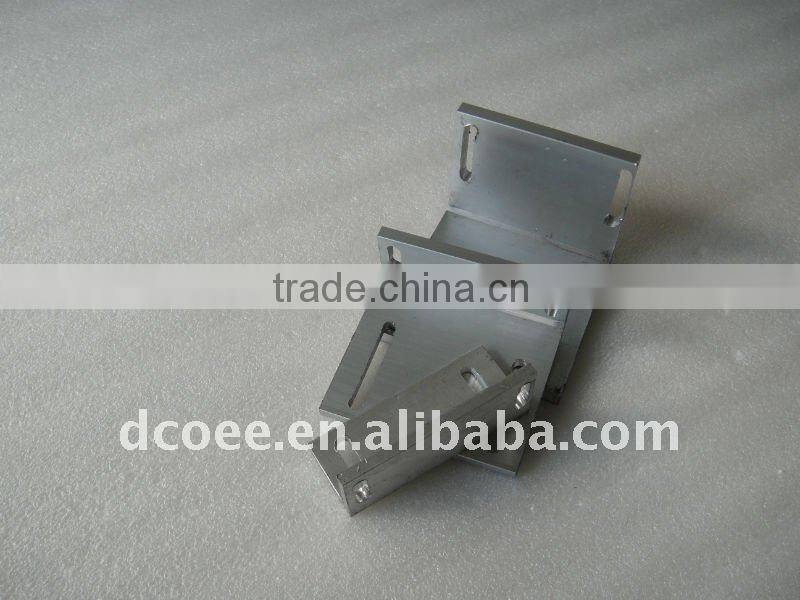

Large Linear Scale(measuring Length 1100mm,resolution 5um)

   Linear scale

 Linear scale when used in conjunction with our counter is designed for manual machine tools or other equipment having linear scale movements,For example cut off saws,Altematively the scale output can be used for automatic positioning control of machine tools or similar equipment via CNC or PLC unit .The scales may also be fitted to co-ordinate measurement or other measurement equipment used for high accuracy inspection & measurement.Our company is the earliest national professinal manufacturer of linear scale in china and offers a comprehensive range of products,We are able to quote on special scale on request.

MODEL:

DC10 (50mm—1000mm,5um)

DC11 (50mm—1000mm,1um)

DC20 (1100mm—3000mm,5um)

DC21 (1100mm—3000mm,1um)

Some specification:

Measuring range:50mm-3000mm

Grating space:20um,10um

Infrared wave length:88omm

Rolling system: vertical five bearing rolling system

Output signal: TTL,EIA-422-A(RS-422),~1VPP

Resolution:1um,5um,0.5um0.1um,0.2um,10um

Environment temperature:-10~45°C

             humidity:<=90%

working speed:(resolution)>=5um:>=60m/min

                     <=1um:>=20m/min

Superiority: 1)The reading head adopts ball bearing to position and guide with high sensitivity & long life.

          2) Adopting metrology grating as measuring datum with high accuracy.

          3)Adopting sealed structure that has reliable performance & is convenient for installation.

4)Glass precision measuring grating is adopted for the Linear Encoder as measuring benchmark to ensure high precision

5)Individualized components makes it very easy to install, maintain and repair the linear Encoder
