200KVA capacity dry type 10KV three phase power transformer price
- 300 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
Product Details
Place of Origin: | Henan, China | Brand Name: | Yari | Model Number: | SCB10-30/50/80.../2500 |
Usage: | Power | Phase: | Three | Coil Structure: | Toroidal |
Coil Number: | Autotransformer |
Product Description
Specifications
1, Rated capacity:30KVA--2500KVA2, High voltage:6KV/6.3KV/10KV, low voltage:0.4KV
3. power transformer price
Performance Feature
dry transformer
Performance Feature
1, Rated capacity:30KVA--2500KVA
2, High voltage:6KV/6.3KV/10KV, low voltage:0.4KV
3. Safe, reliable, no pollution, can operate directly in the load center
4. High mechanical strength, strong ability to withstand short circuit, low partial discharge, good thermal stability, high reliability, long use life;
5.Low no-load loss, high performance, low noise, efficient energy conservation;
6. High thermal performance, high operation capacity, forced air cooling can improve the operation of capacity.
7. Good moisture resistant ability, can operate in high humidity and other harsh environments
8. With features of environmental protection, flame retardant, explosion- proof and free of maintenance;
9. Small size, light weight;
Features:
dry transformer
Insulated
Safe
environment protected
Moisture resistant
Durable
Economical
Specifications:

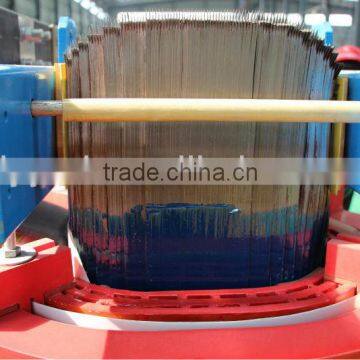

l The core selects high quality cold rolled grain oriented silicon steel sheet. 45ºC inclined seam. Five steps to fold the iron. Core column and iron yoke are multistage circular cross section shape,. So that the transformer can get lower no-load loss and noise.
l According to the size of the transformer capacity, high-voltage wire is the double glass enameled copper wire, between layers is the H-class glass fiber cloth and glass mat insulation. The low-voltage part is winded by copper foil, between layers is the epoxy resin presoak cloth insulation which has very high mechanical strength and the ability of resisting the sudden short circuit.
l Clip pieces are the low magnetic steel sheets and coordinate structure. They are processed by sandblasting and coating which makes their overall structure looks beautiful and has high mechanical strength.
l Every phase is equipped with independent cooling fan and split type thermostat which can reduce the temperature effectively and improve the transformer output capacity to guarantee the operation of transformer.
l The insulation heat resistance levels of the dry type transformer are Level B, Level H, Level F, etc. The heat temperature is 130ºC, 155ºC and 180ºC respectively. This series product selects new materials and new process, so the SG10 type has the Level H of the insulation heat level which is more reliable and safer.
Data
dry transformer
Workshop
dry transformer
dry transformer
dry transformer
