Help CenterFire Proof Low Halogen Power 0.6/1kv Voltage Cu Copper Conductor 4 Cores PVC Insulated PVC Sheath Cable Electric
Related Products
-
0.6/1kv Voltage Cu Copper Conductor 4 Cores PVC Insulated PE Sheath Fire Proof Low Halogen Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer -
0.6/1kv Voltage Cu Conductor 4 Cores PVC Insulated PE Sheath Steel Tape Armored Fire Proof Low Halogen Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv Voltage Cu Conductor 4 Cores PVC Insulated PVC Sheath Steel Tape Armored Fire Proof Low Halogen Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv Voltage Al Aluminum 4 Cores PVC Insulated PVC Sheath Steel Tape Armored Fire Proof Low Halogen Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv Voltage Cu Copper 4 Cores PVC Insulated PVC Sheath Steel Wire Armored Fire Proof Low Halogen Powerelectrical CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
Specifications
Rated voltage:0.6/1kvConductor:AL/CU
Armor:steel tape,thin steel wire,thick steel wire
Sheath: PVC/PE
cable electric

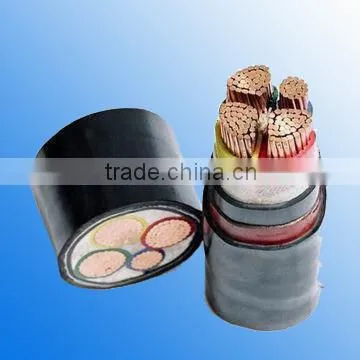

fire proof low halogen power 0.6/1kv voltage Cu copper conductor 4 cores PVC insulated PVC sheath cable electric
APPLICATION
This product is applicable to being fixedly laid on the transmission and distribution line of alternative current rating 50Hz and rated voltage up to 0.6/1.0Kv with the use for power transmission, which is applied to the range of distribution network, industrial equipments, etc.
This product is normal used cable, not suitable for some special situation, such as aerial, underwater, ship, sea, nuclear station, etc.
TYPE OF PRODUCT
type |
Name of product |
|
Cu |
Al |
|
VV |
VLV |
PVC insulated PVC sheath power cable |
VY |
VLY |
PVC insulated PE sheath power cable |
VV22 |
VLV22 |
PVC insulated steel tape armored PVC sheath power cable |
VV23 |
VLV23 |
PVC insulated steel tape armored PE sheath power cable |
VV32 |
VLV32 |
PVC insulated thin steel-wire armored PVC sheath power cable |
VV33 |
VLV32 |
PVC insulated thin steel-wire armored PE sheath power cable |
VV42 |
VLV42 |
PVC insulated thin steel wire armored PVC sheath power cables |
VV43 |
VLV43 |
PVC insulated thin steel –wire armored PE sheath power cables |
Low-smoke halogen-free flame-retardant property
order |
Items |
Unit |
Indicator |
1 |
Low-smoke property least light penetration quotiety |
% |
≥60 |
2 |
zero-halogen property PH value electrical conductivity |
μs/mm |
≥4.3 ≤10 |
