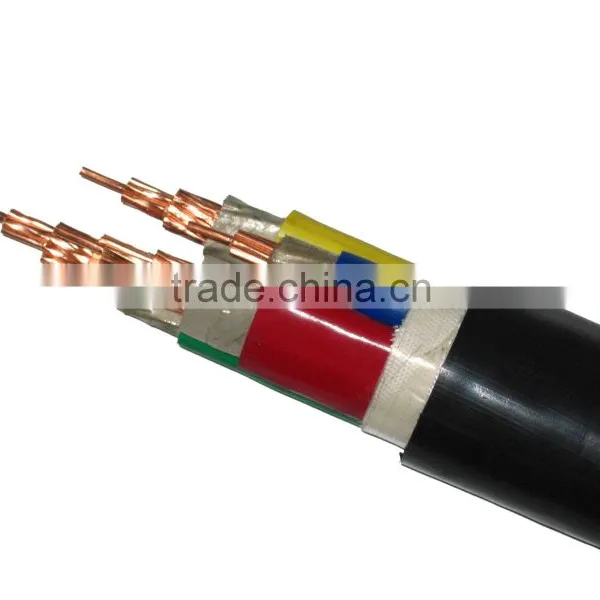

0.6/1kv PVC Insulated Thin Round Steel Wire Armored PVC Sheath Power Cable
XLPE insulated power cable not only has excellent electric, mechanic properties, but also has powerful resistance chemical corrosion, antiaging and long life. Voltage grade is up to 26/35kv, crosssection area is up to 630 sqmm ( copper or aluminum conductor). The core number of conductor is from 1 to 5. Conductor longtime operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.
Application:
It is generally applied to the fields including substation, construction, mines, metallurgy, petrochemical industry for transmission and distribution electric energy. For laying indoor, tunnel, cable trench and underground.
Model and Name
Model |
Description |
Application |
|
Cu |
Al |
|
|
YJV |
YJLV |
XLPE insulation PVC sheath power cable (Cu/XLPE/PVC) |
For laying indoor, tunnel, cable trench and underground, the cable couldn't bear mechanical force outside |
YJY |
YJLY |
XLPE insulation PE sheath power cable (Cu/XLPE/PE) |
|
YJV22 |
YJLV22 |
XLPE insulation, steel tape armor, PVC sheath power cable (Cu/XLPE/PVC/STA/PVC) |
For laying indoor, tunnel, cable trench and underground, but it couldn't bear great pulling force. |
YJV23 |
YJLV23 |
XLPE insulation, steel tape armor, PE sheath power cable (Cu/XLPE/PVC/STA/PE) |
|
YJV62 |
YJLV62 |
XLPE insulation, no magnetism steel tape armor, PE sheath power cable |
|
YJV32 |
YJLV32 |
XLPE insulation, thin steel-wire armor, PVC sheath power cable (Cu/XLPE/PVC/SWA/PVC) |
Be applicable to the well, water inside and fall in the bad soil. The cable is able to bear external mechanical forces, and certain force. . |
YJV72 |
YJLV72 |
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
|
YJV42 |
YJLV42 |
XLPE insulation, thick steel-wire armor, PVC sheath power cable |
Be applicable to the well, underwater with the bottom of sea. The cable is able to bear external mechanical forces, and certain force. |
