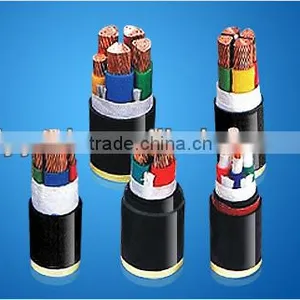

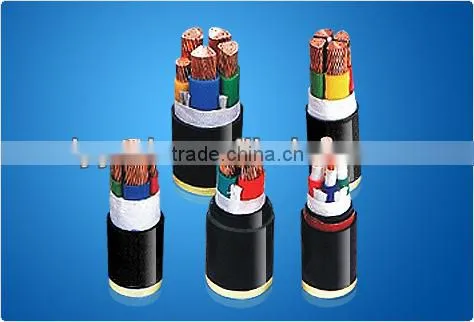

Help CenterAL/CU Conductor Multicores 25mm XLPE Insulated PE Sheath Power Electric Cable
Related Products
-
AL/CU Conductor Multicore 25mm XLPE Insulated PVC Sheath Steel Tape Armored Power Electric Cable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer -
AL/CU Conductor Multicores 25mm XLPE Insulated PVC Sheath Double Steel Tape Armored Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
Cu Copper Conductor Multi Core 25mm XLPE Insulated PVC Sheath Thin Steel Wire Armored Power Electriccable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv XLPE Insulated Thin Round Steel Wire Armored PVC Outer Sheath Power CableUS$ 0.48 - 99.8MOQ: 1000 Meters
-
0.6/1kv XLPE Insulated Thick Round Steel Wire Armored PVC Outer Sheath Power CableUS$ 0.48 - 99.8MOQ: 1000 Meters
Specifications
Rated voltage:0.6/1kvConductor:AL/CU
Armor:steel tape,thin steel wire,thick steel wire
Sheath: PVC/PE
Easy installation
APPLICATION This product is applicable to being fixedly laid on the transmission and distribution line of alternative current rating 50Hz and rated voltage up to 0.6/1.0 kV with the use for power transmission, which is applied to the range of distribution network, industrial equipments, etc.
This product is the normal used cable, not suitable for some special places, such as underwater, ship, nuclear station, etc.
The product has good performance on electrical characteristic, chemical resistance, such as acid resistance, alkali resistance and organic solvent resistance. The product can be laid on any head drop condition even vertically in any place, that is to say, the cable can be laid without limit on head drop.
TYPE OF PRODUCT
Type |
Name of product |
|
CU |
AL |
|
YJV |
YJLV |
XLPE insulated PVC sheath power cable |
YJY |
YJLY |
XLPE insulated PE sheath power cable |
|
YJV22 YJY22 |
YJLV22 YJLY22 |
XLPE insulated steel tape armored PVC sheath power cable |
|
YJV23 YJY23 |
YJLV23 YJLY23 |
XLPE insulated steel tape armoured PE sheath power cable |
|
YJV32 YJY32 |
YJLV32 YJLY32 |
XLPE insulated thin steel-wire armoured PVC sheath power cable |
|
YJV33 YJY33 |
YJLV33 YJLY33 |
XLPE insulated thin steel-wire armoured PE sheath power cable |
|
YJV42 YJY42 |
YJLV42 YJLY42 |
XLPE insulated thin steel –wire armoured PVC sheath power cables |
|
YJV43 YJY43 |
YJLV43 YJLY43 |
XLPE insulated thin steel –wire armoured PE sheath power cables |
Low-smoke halogen-free flame-retardant property
order |
Items |
Unit |
Indicator |
1 |
Low-smoke property least light penetration quotiety |
% |
≥60 |
2 |
zero-halogen property PH value electrical conductivity |
μs/mm |
≥4.3 ≤10 |
