Specifications
Solar Ground Mounting System Photovoltaic Kit for 5kw Solar System1.Quick installation
2.Professional design
3.Safety
Technical Information for Solar Ground Mounting System Photovoltaic Kit for 5kw Solar System
Solar Ground Mounting System is application for the large commercial and utility scale PV system on a non-sandy ground. It is suitable for the framed or frame-less module installation.
For Solar Ground Mounting System, C Post can be pile into the ground 1~2meters by Pile Machine quickly, then you can mount the pre-assembly Beamstructure, the Sunrack Rail and the clamp easily.
Features
1, Suitable intsll site: Flat concrete & open ground, concrete base require.
2, Material: 76 microns Hot galvanized Q235B steel & Al6005-T5 clamps
3, Applicable module: framed or thin film, 1580*808,1960*990,etc.
4, Module mounting: Portraint
5, Adjust angle: 20-45 degree
6, Max wind load: 60m/s
7, Snow load: 1.4KN/m2
8, Screws and nuts go with every components needed.
9, 10 years system and 20years service life.

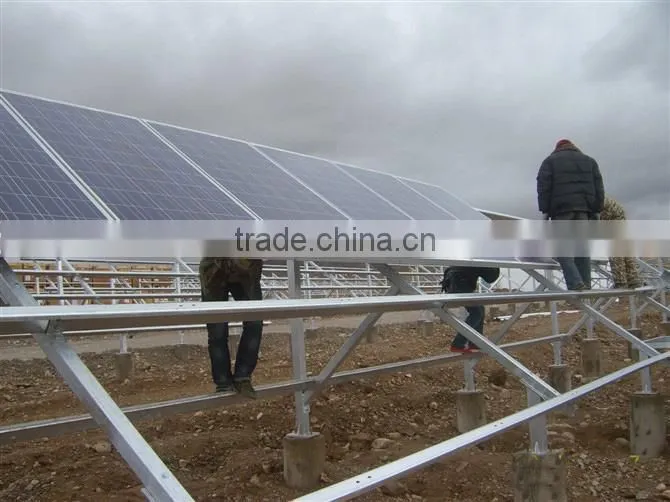

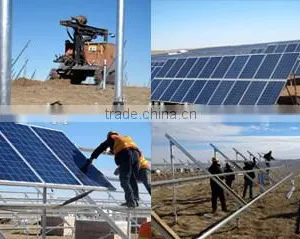

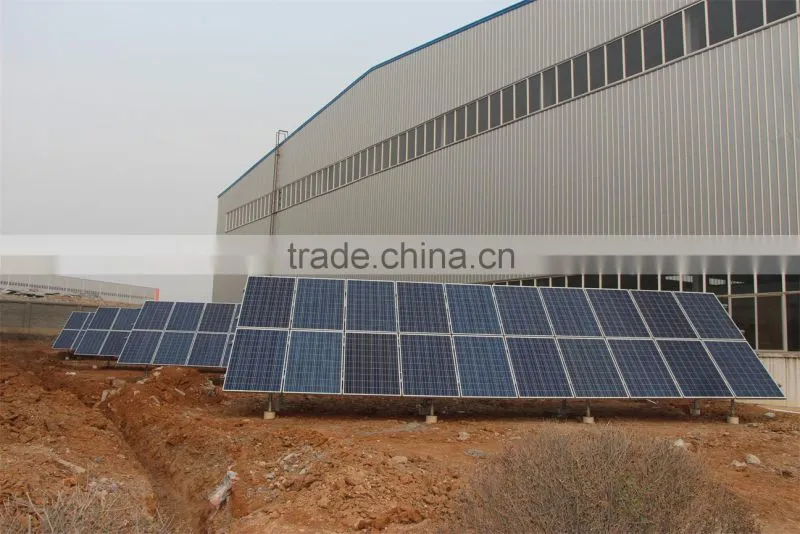

Cases for Solar Ground Mounting System Photovoltaic Kit for 5kw Solar System
Overview of Solar Ground Mounting System Photovoltaic
Kit for 5kw Solar System
Package for Solar Ground Mounting System Photovoltaic
Kit for 5kw Solar System

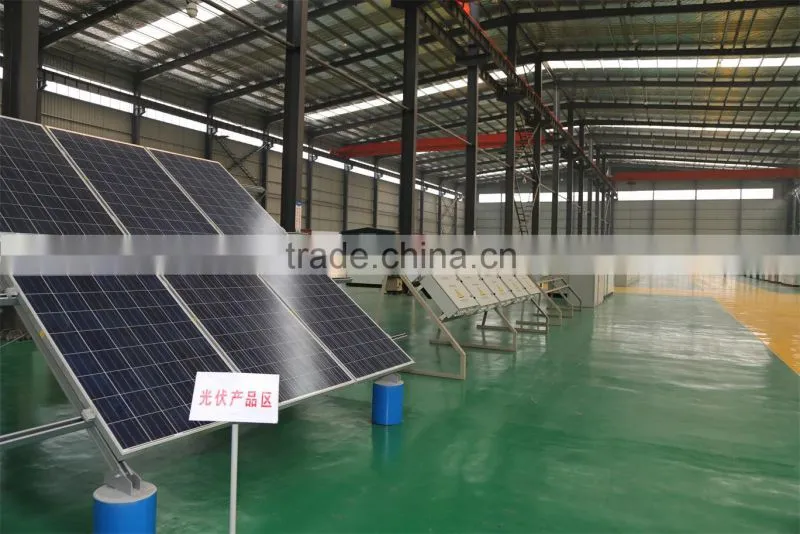

Our factory
Why choose us?
1. Quick installation, saving schedule: Sunforson PV systems have produced the assembly parts in advance depend on the professional design,so they can be quickly assembled no drilling or welding on site.
2. Professional PV Solar Carport Solar Carport design, lower costs:Products were designed by the experienced designers which have the systematic design,stable structure,mature technology,can meet the AS/NZS 1170 and save cost for the customers..
3. Load design, Safety Guarantee:Sunforson PV bracket system design take full account of component weight,combine factors of wind,snow and earthquake load,dynamic load and static load,they have long-term performance and high load capacity in practical applications.
4. Beautiful Appearance: In order to make SunRack Carport become a beautiful building,the bracket system adopt the unique rail design can come up to the unique appearance design,they also have a good rain proof performance.
5. High reliability, 5-year quality Assurance: All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.
