Specifications
1.Easy installation2.Diversified Application
3.High accuracy
4.Good compatible

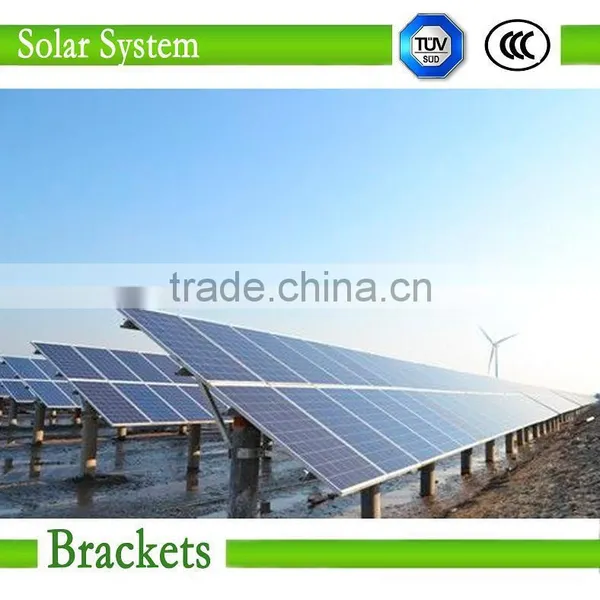

solar panel mounting brackets for solar pv system
Specifications
Product Description
1) All the support structural elements are hot dipped galvanized to guarantee the lifetime of support.
2) Adopt high-quality steel pipe and other excellent section bars to ensure sufficient strength of support.
3) Installation area of solar panel components in design is 2.5~100m2.
4) Wind load resistance of support in design is 216km/h.
5) The ground support system which is convenient for installation and maintenance free has developed into the general solar panel installation system suitable for open ground outdoor.
6) The unique innovative aluminum alloy track, Z-shaped card and pipe cap can be used to connect multiple units conveniently and simply to meet the actual requirements on various grounds for installation.
7) It is suitable for installation and application of solar panels with and without frame and is mainly used in large-scale solar power station with the advantages of low cost, rapid installation and stability.
Advantage
1)The Solar Bracket is suitable for flat roofs of various structures or for the ground.
2)One end of the cross-beam is connected firmly with the ground structure by base bracket and hex-bolts and the another end is connected to the support leg forming a stable and strong tripod structure.
3)The connecting foot is made up of stainless steel to enhance the load bearing capacity.
4)Stainless steel itself has a good physical and chemical mechanical performance, service life can reach more than 25 years.
solar panel mounting
Data
Commodity |
Solar panel mounting bracket |
Specification |
1.Easy installation |
Loading Port |
Qingdao |
Surface Treatment |
HDG (hot dipped galvanized), Pre-galvanized, Cold-galvanizing (yellow or white), powder coating |
Quality authentication |
ISO 9001:2000 |
Material |
Q235B |
Color |
Natural |
Warranty |
10 years |
Service life |
25 years |
Wind resistance |
45m/s |
Snow load |
1.4KN/m² |
Delivery condition |
Shipping transport or cargo |
Packing |
Standard export package or as per client's requirements |
Notice |
Special order can be accept and we will offer high quality but low price's products |
Company website |
solar panel mounting brackets for solar pv system
Workshop
solar panel mounting brackets for solar pv system

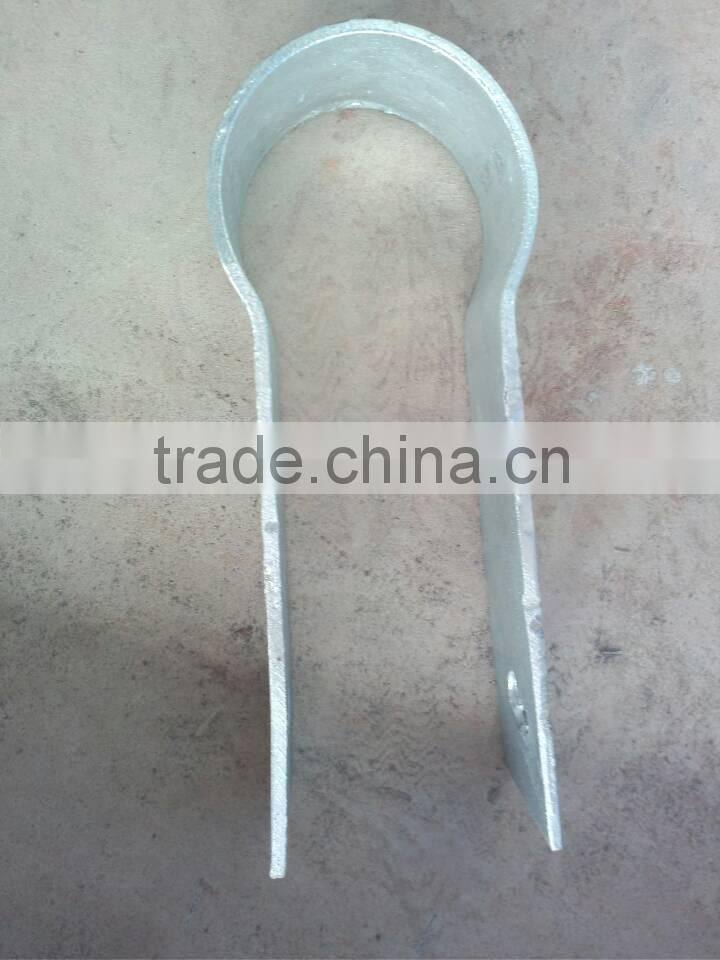

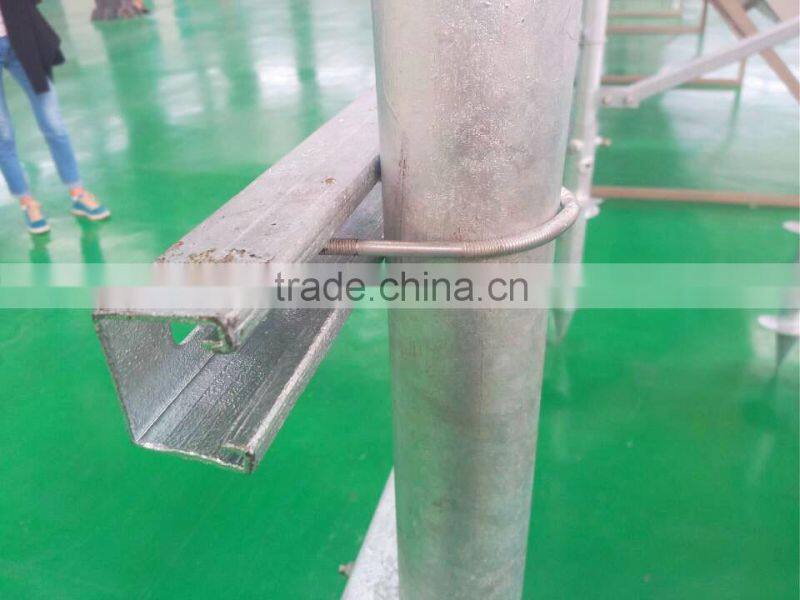

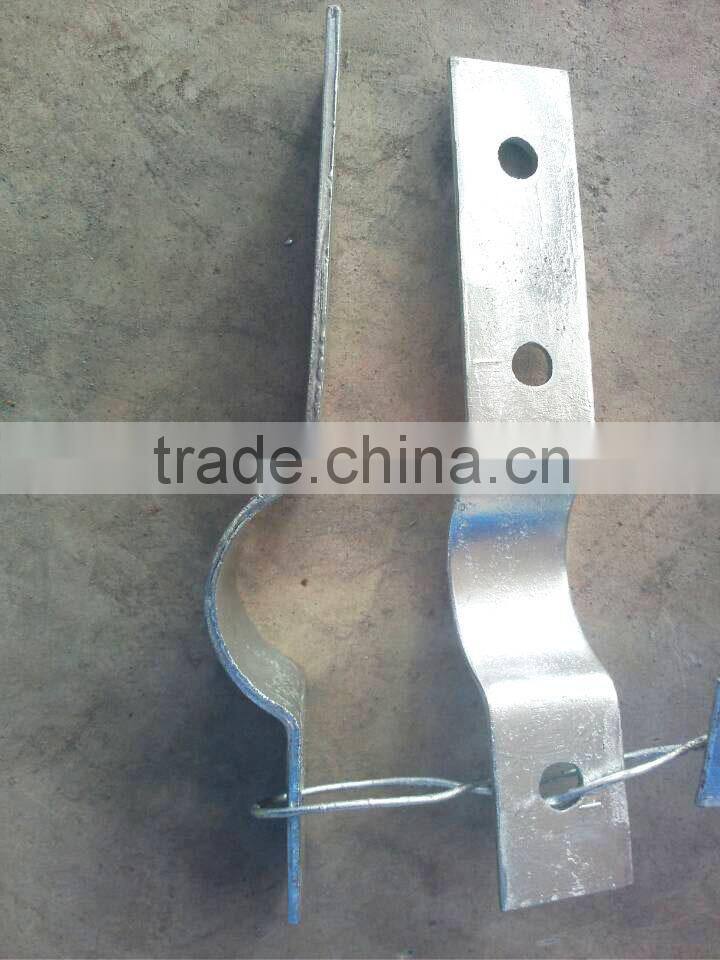

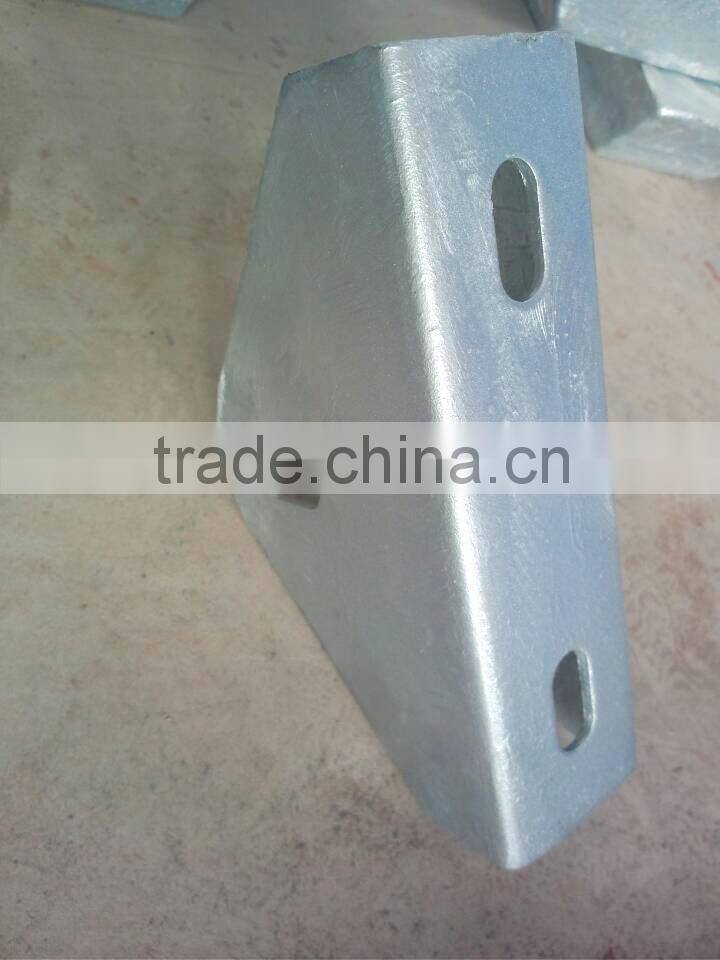

Connectors
solar panel mounting brackets for solar pv system
Installation
solar panel mounting
Why Us & FAQ
solar panel mounting
Contact Us
solar panel mounting brackets for solar pv system
