Specifications
This product is the normal used cable, not suitable for some special places, such as underwater, ship, nuclear station, etc.
Application
This product is applicable to being fixedly laid on the transmission and distribution line of alternative current rating 50Hz and rated voltage up to 0.6/1.0 kV with the use for power transmission, which is applied to the range of distribution network, industrial equipments, etc.
PVC insulated control cable ,Control cables are suitable for the electrical apparatus and instruments, signal transmissions of distribution devices and control and measure system with A.C rated voltage of 450/750V and below, used by metallurgical, power and petrochemical industries etc.
PVC insulated flameretardant control cable It can avoid fire accidents occurring and losses reducing that this products can prevent fire spreading on the circuits.
Type of Production
Type |
Name of product |
Copper core | |
KVV |
Polyvinyl chloride insulated polyvinyl chloride sheath copper core control cable |
KVVP |
Polyvinyl chloride insulated polyvinyl chloride sheath copper braid shielding copper core control cable |
KVVP2 |
Polyvinyl chloride insulated polyvinyl chloride sheath copper tape screened copper core control cable |
KVV22 |
Polyvinyl chloride insulated copper tape armored polyvinyl chloride sheath copper core control cable |
KVVP22 |
Polyvinyl chloride insulated copper braid shielding steel tape armored polyvinyl chloride sheath copper core control cable |
KVVP2-22 |
Polyvinyl chloride insulated copper tape screened steel tape armored polyvinyl chloride sheath copper core control cable |
KVV32 |
Polyvinyl chloride insulated thin steel-wire armored polyvinyl chloride sheath copper core control cable |
KVVR |
Polyvinyl chloride insulated polyvinyl chloride sheath copper core flexible control cable |
KVVRP |
Polyvinyl chloride insulated polyvinyl chloride sheath woven screened copper core flexible control cable |
Bunched burning characteristi
Code |
Volume of non metal materials(L/m) |
Time of fire supply/s |
Acceptable index |
Test mode |
|
ZA ZB ZC ZD |
7 3.5 1.5 0.5 |
40 40 20 20 |
1.The length of carbonation is no more than 2.5m from the bottom of nozzle 2.The time of flaming combustion shall be no more than 1h, after fire supply is stopped. |
GB/T 18380.3 IEC 60332-3-25 |
ZD is suitable for the cables whose sample's outer diameter is no more than 12mm. | ||||
Fire-safe property
Temperature of flame |
Fire supply time+cooling time |
Test Voltage/V |
Acceptable index |
750+50°C |
90+15 |
Rated |
1. 2A no fusing 2. Indicator light immortalization |

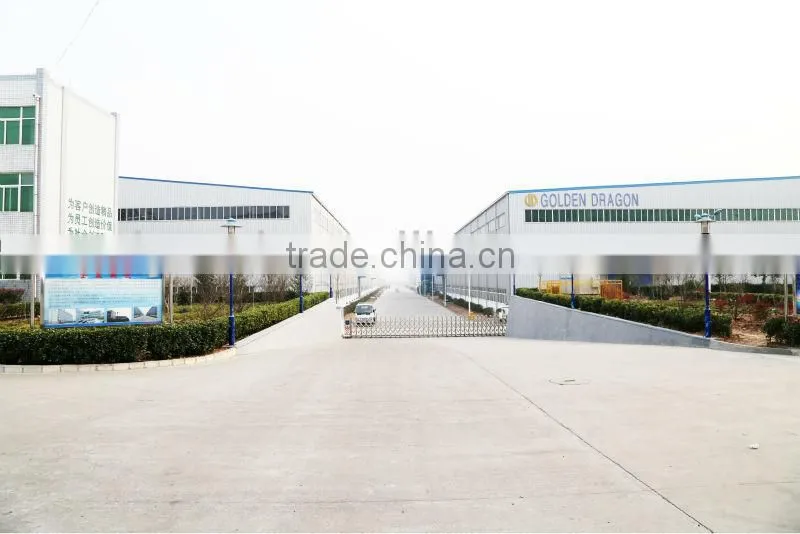

Company&Workshop
Flow Chart
Testing Equipment
