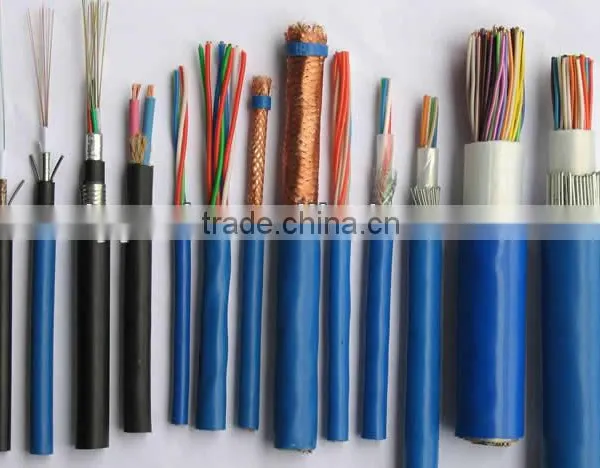

Help CenterSteel Tape Armored 450/750v Rated Voltage Xlpe Insulated Copper Core Conductor Pvc Sheathed Control Power Cable
Related Products
-
Steel Tape Armored 450/750v Rated Voltage Xlpe Insulated Copper Conductor Pvc Sheathed Copper Braid Shieded Control Power CableUS$ 0.48 - 99.8MOQ: 1 Kilometer -
Steel Tape Armored 450/750v Rated Voltage Xlpe Insulated Copper Conductor Pvc Sheathed Copper Tape Shieded Control Power CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
Thin Copper Wire Armored 450/750v Rated Voltage Xlpe Insulated Copper Conductor Pvc Sheathed Control Power CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
450/750v Rated Voltage Xlpe Insulated Copper Conductor Pvc Sheathed Woven Screened Shielded Flexible Control Power CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
450/750v Rated Voltage PVC Insulated Copper Conductor Pvc Sheathed Copper Braid Shielded Screened Control Power CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
Specifications
Rated voltage:450/750V;Conductor:Cu;
Armor: steel tape/wire,copper tape
Sheath:PVC/PE;
Screen:copper braid,copper tape
Application
XLPE insulated control cables are suitable for the electrical apparatus and instruments, signal transmission of distribution devices and control and measure system with A.C rated voltage of 450/750V and below, used by metallurgical, power and petrochemical industries etc.
XLPE insulated control cables with the characteristic of low-smoke and flame-retardant are suitable for the electrical apparatus and instruments, signal transmission of distribution devices and control and measure system with A.C rated voltage of 450/751V and below, used by metallurgical, power and petrochemical industries etc.
Type of Product
Type |
Name of product |
Copper |
|
KYJV |
XLPE insulated polyvinyl chloride sheath copper core control cable |
KYJVP |
XLPE insulated polyvinyl chloride sheath copper braid shielding copper core control cable |
KYJVP2 |
XLPE insulated polyvinyl chloride sheath copper tape screened copper core control cable |
KYJV22 |
XLPE insulated steel tape armoured polyvinyl chloride sheath copper core control cable |
KYJVP22 |
XLPE insulated copper braid shielding steel tape armoured polyvinyl chloride sheath copper core control cable |
KYJVP2-22 |
XLPE insulated copper tape screened steel tape armoured polyvinyl chloride sheath copper core control cable |
KYJV32 |
XLPE insulated thin steel-wire armoured polyvinyl chloride sheath copper core control cable |
Fire-safe property
Temperature of flame |
Fire supply time+cooling time |
Test Voltage/V |
Acceptable index |
750+50°C |
90+15 |
Rated |
1. 2A no fusing 2. Indicator light immortalization |

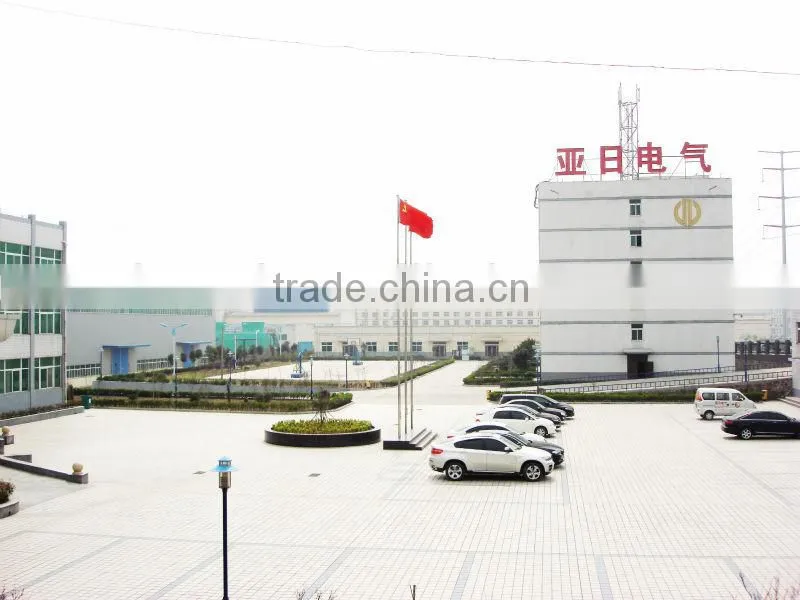

Company & Workshop
