Specifications
1 Overhead Power Transmission Line AAC Cable2 IEC, ASTM, DIN, BS standard
3 ISO,CCC certification
Overhead Power Transmission Line AAC Cable

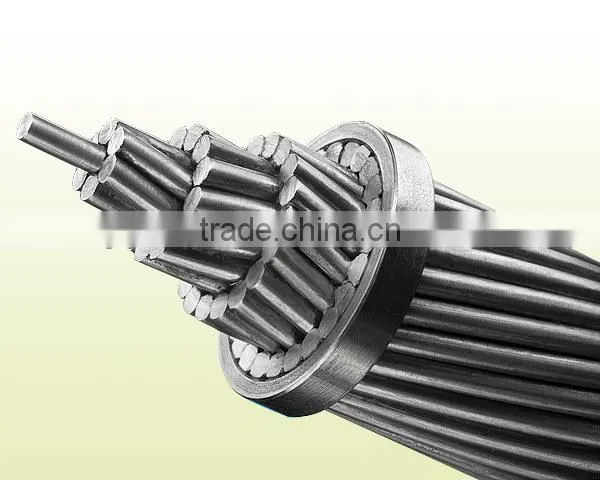

Specification: aac are composed by bare concentric-lay-standed aluminum wires with a straight round central aluminum wire surrounded by one or more layers of helically layed aluminum wires.
Application:
*AAC are used in overhead power transmission and distribution lines with various grade voltages.
*Under the same weight,AAC is with higher DC resistance and lower costthan copper conductor.
*Aluminum is light and is easy to lay.

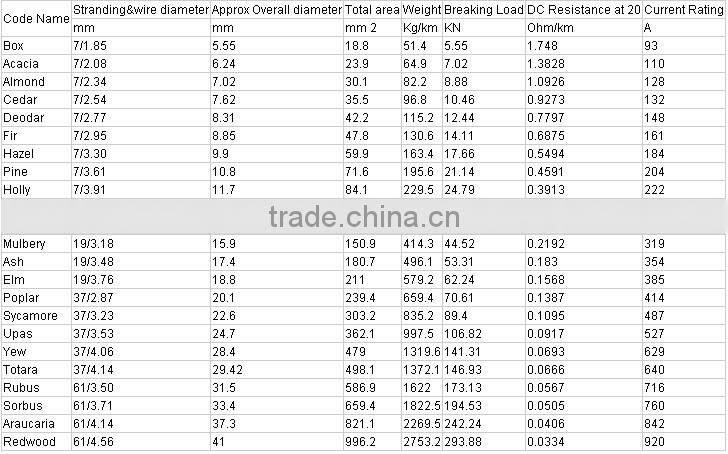

Stranded 1350 aluminum conductors shown in this section of data are classified, as follows:
Class AA |
For bare conductors usually used in overhead lines. |
Class A |
For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required. |
Class B |
For conductors to be insulated with various materials and for conductors indicated under Class A where greater flexibility is required. |
Class C |
For conductors where greater flexibility is required |
Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available.
Note: Classes refer to stranding and are an indication of relative conductor flexibility, AA being the least flexible, C the most flexible.
AAC bare conductors meet or exceed the following ASTM specifications:
B-230 Aluminum Wire, 1350-H119 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors concentrically stranded.
BS EN 50182:2001
Packing & Shipping
Power Cable is usually packed with wooden drum, it can also be packed as the customers' requirement.
Here are some pictures of our packing:
Our factory
Our service
1) Inquiries are typically answered within 12 hours and OEM is welcome.
2) We have experienced QC to control the quality of different kind of cables.
3) We're CCC certificated, and can provide CE, Rohs and SGS certificates before exporting.
4) We have grown from a small factory with an annual turnover of USD50,000 to over USD50,000,000 during these 10 years.
5) Huge Inventory Allows Us To Ship Your Order Immediately
6) Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.
7) We ship worldwide.
Please feel free to contact me for more information.
