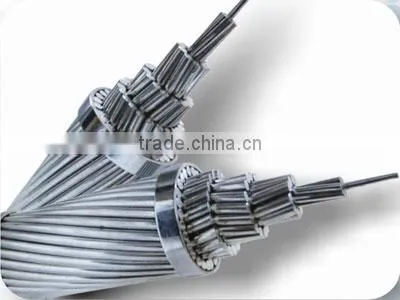

ACSR Conductor

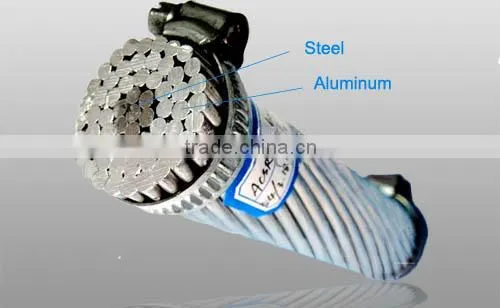

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor, around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentric stranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible.
Application
It is widely used in overhead power transmission lines with various voltage levels.
It has the advantages as high mechanical strength, good conductivity, easy to be setted up, high temperature resistance, simple structure, convenient installation and maintenance, large transmission capacity and is also suitable for laying across rivers and valleys where special geographical features exist.
We have obtained certificates of ISO9001, CCC
Additional description
All the products can perfectly meet requests of different standards.
At the same time, we can design and manufacture special cables according to the required standards of customers, such as: GB, IEC, BS, ASTM, JIS, DIN and so on.
Type of product
Model |
Nominal cross area mm2 |
Description |
LJ |
16~800
|
All aluminum conductor |
LGJ |

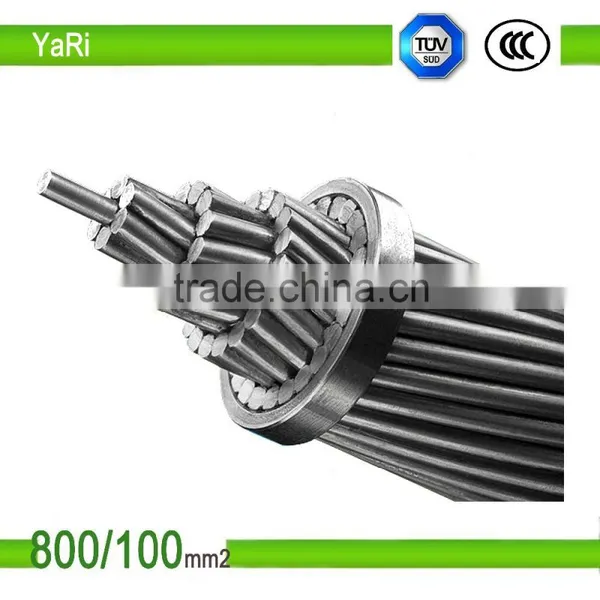

10/2~800/100
|
Aluminum conductors steel-reinforced |
|
LGJF
|
10/2~800/100
|
Anti-corrosion aluminum conductors steel-reinforced |
LGJFV |
10/2~800/100 |
Anti-vibration aluminum conductors steel-reinforced |
Packaging: Wooden Drum
Dimension: 1100*500*620mm
Luoyang Asian Sun Industrial Group Co., Ltd. was established in 2006 with RMB 50 million registerde capital in Luoyang, Henan Province, China. Now our total assets is RMB 300 million. The company covers an area 61,081 square meters, and has 4 affiliates with more than 300 employees including 15 engineers and technicians.
Our tenet is to take the sincerity as fundamental, to take the customer as center. Win-win cooperation is the core idea of our company culture. All the staffs are striving for developing Chinese national industry with their continued pioneering spirit. Warmly welcome friends all over the world to cooperate with us.
