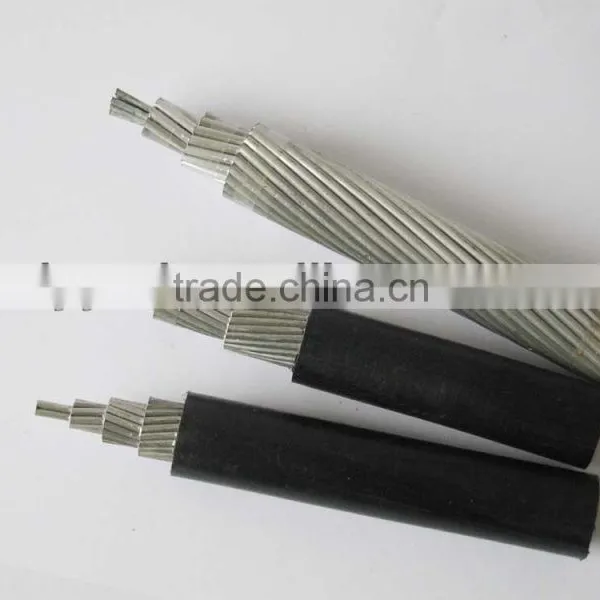

Help Center10KV Rated Voltage PE Insulated Aluminum Alloy Core Conductor Aerial Overhead Power Cables
Related Products
-
ABC Power Cables 10KV Rated Voltage Thin PE Insulated Aluminum Alloy ConductoUS$ 0.48 - 99.8MOQ: 1 Kilometer -
0.6/1kv Rated Voltage Thin PE Insulated Aluminum Conductor Steel Reinforced Overhead Aerial Power CablesUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
Low Voltage Thin PVC Insulated Aluminum Conductor Steel Reinforced Aerial Overhead Power CablesUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv Rated Voltage Thin XLPE Insulated Aluminum Conductor Steel Reinforced Stranded Core Aerial Overhead Power CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
Rear Earth Aluminum Conductor Steel Reinforced(ACSR/RE)US$ 0.48 - 99.8MOQ: 1000 Meters
Specifications
1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS standard.2, ISO, CCC, CQC certification approved. 8 Years Experience of OEM service
Application
Aerial insulated cables of rated voltages up to and 1kV, This product is applicable to the aerial power distribution lines of rated voltage 0.6/1KV and below as the fixed laying lines or service wire.
Aerial insulated cables with rated voltages of 10 kV ,This product is a new type used for electricity supply on aerial power transmission lines, which has been preferentially selected as the 10kV engineering transmission line for the construction and transformation of grid system. This series of product is appropriate for maintained and security of lines and the product with annealed copper core is applicable to the down lead of transformer.
Stranded aluminium conductor steel-reinforced cores aerial insulated cables of rated voltages up to 10 kV ,This product is applicable to the aerial power distribution lines of A.C. voltage up to 10kV.
Operating Characteristics
1.Max. permissible continuous temperature:
PVC,PE insulated aerial cables:70°C
XLPE insulated aerial cables:90°C
2.HDPE insulated aerial cables:75°C
Max. short-circuit temperature of the conductor shall not exceed:
PVC insulated aerial cables: 160°C;
PE insulated aerial cables: 130°C;
XLPE insulated aerial cables: 250°C.
HDPE insulated aerial cables:150°C
3.Installation ambient temperature
The installation ambient temperature should not below -20°C.
Type of Product
Type |
Name of product |
JKV |
Aerial polyvinyl chloride insulated copper core cables |
JKLV |
Aerial polyvinyl chloride insulated aluminium cores cables |
JKLHV |
Aerial polyvinyl chloride insulated aluminium alloy cores cables |
JKY |
Aerial polythene insulated copper core cables |
JKLY |
Aerial polythene insulated aluminium core cables |
JKLHY |
Aerial polythene insulated aluminium alloy core cables |
JKYJ |
Aerial XLPE insulated copper core cables |
JKLYJ |
Aerial XLPE insulated aluminium core cables |
JKLHYJ |
Aerial XLPE insulated aluminium alloy core cables |
