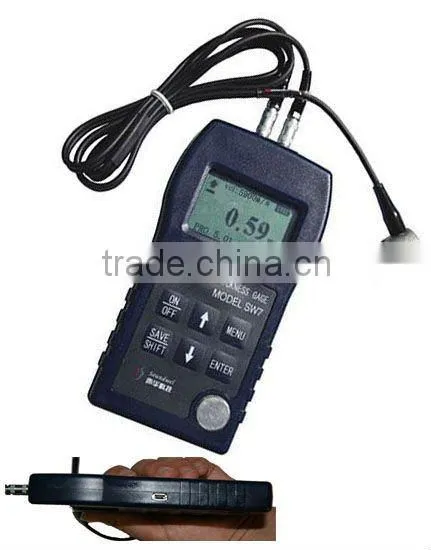

Help CenterUltrasonic Thickness Gauge SW7U USB2.0
Related Products
Specifications
ultrasonic thickness gauging without removing coatingsAll functions of high accurate gage
PC data transfer function
ultrasonic thickness gauging without removing coatings
All functions of high accurate gage
PC data transfer function
Specifications
* Measuring Range in steel: 0.03 to 12.0 inches (0.75 to 300mm)
* Sound Velocity Range: 1000 to 9999 m/s
* Resolution: 0.01 inches (0.1mm) or 0.001 inches (0.01mm)
* Accuracy: ±0.5% of Thickness (0.04mm)
Depending on material and conditions
* Display: 3.5 digits LCD with EL backlight
* Units: Imperial
* Four measurement readings per second for single point measurement,
and 2-20 per second for Scan Mode
* Memory for up to 2000 groups (up to 99 values for each file)
* Power Source: Two “AA” size x 1.5 Volt alkaline batteries
200 hours typical operating time (EL backlight off).
* Physical Dimensions: 5.3H x 2.8W x 0.8D inches (136×72×20 mm)
* Weight: 7 oz. (177g)
* 2 year warranty
