NHII OMR scanner S43FSA /OMR Scanner for the school exam / scoring/barcode wite lowest price machine

Specifications

1.Standard examinations in colleges, high schools and elementary schools,.
2.educational evaluations,Analysis of student score

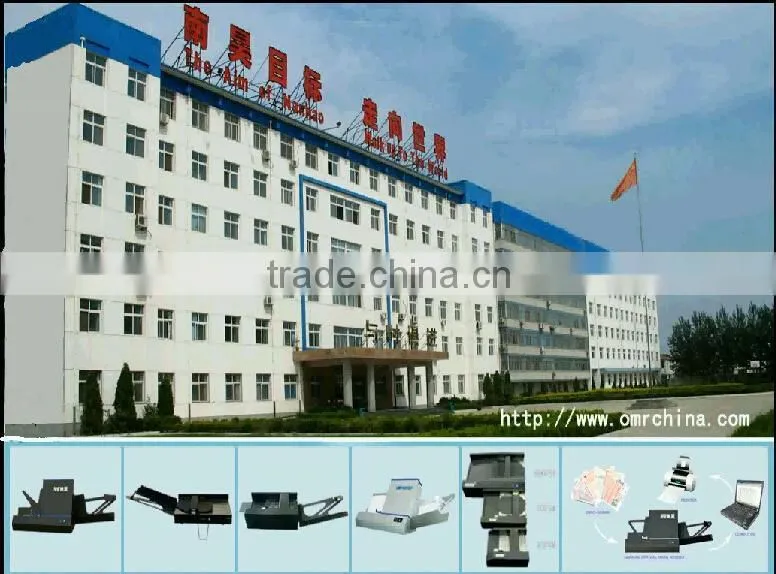

NANHAO Group



Established in 1995, NANHAO Group is a key national high-tech enterprise specializing in the independent R & D, manufacturing, sales and services of education information products in China.
NANHAO Group has nearly 360 employees , and the factory covers an area 23,020 square meters, the office covers an area of 14,390 square meters. With the excellent experts as the backbone in the R & D, taking intelligent recognition as core technology, we succeed in developing Optical Mark Reader(OMR), Online Scoring System and Interactive Whiteboards etc., All the above products passed to the international certificates of ISO9001,ISO14001, CE, FCC, C-TICK, ROHS etc.  Hebei NANHAO Hi-Tech Development Co., Ltd owns 120 patents and copyrights and was listed as the "key Hi-Tech enterprise of China" by Ministry of Science and Technology

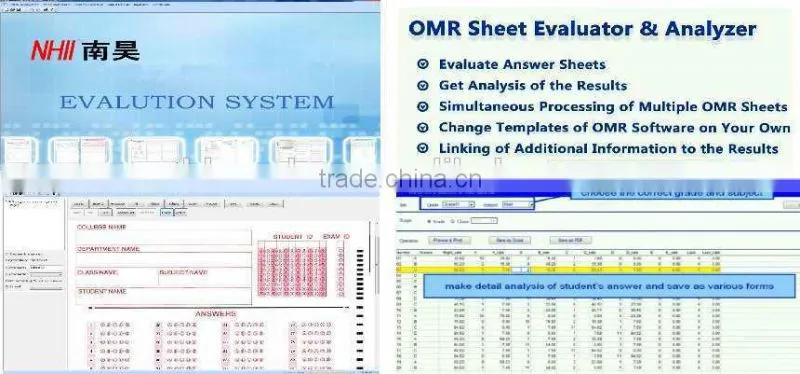

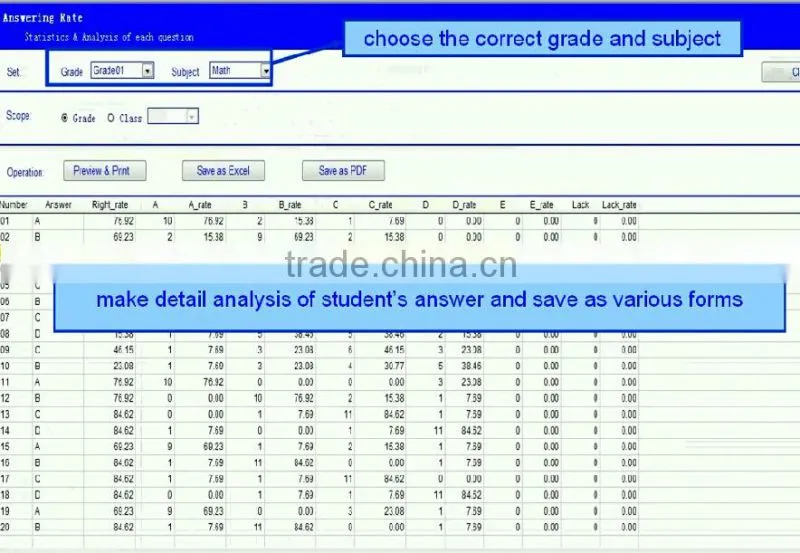

Software of the S43FSA



1.Large Objective Question Assessment Solution
The Solution is mainly used in primary, Secondary, University for beginning, midterm and final exam, sham examination, unified examination, studies and other large upgrade exam. It is also used in educational assessment, school management, teachers files, registration statistics, volunteer statistics; it also can be used in all walks of cadres evaluation, assessment, elections………. Since the evaluation of the main equipment -------Optical mark reader, with FS, FD, FBS, FBD function. Therefore, Above Solution is the world's fastest evaluation, the lowest cost, highest accuracy reader Solution.



2.Large English Subjective and Objective Question Auto-evaluation Solution
This solution is mainly applied to the English teaching of primary and secondary school, University. The teacher will put the English subjective and objective questions on the Internet, and students upload their answer to the web corpus to auto-evaluate depend on software after they answered on the Tablet PC. The accurate rate reaches 93%-96%.
Above solutions, save time, improve the efficiency of teachers’ and students’, improve teaching performance. It is the most efficient solution to learn English in the world

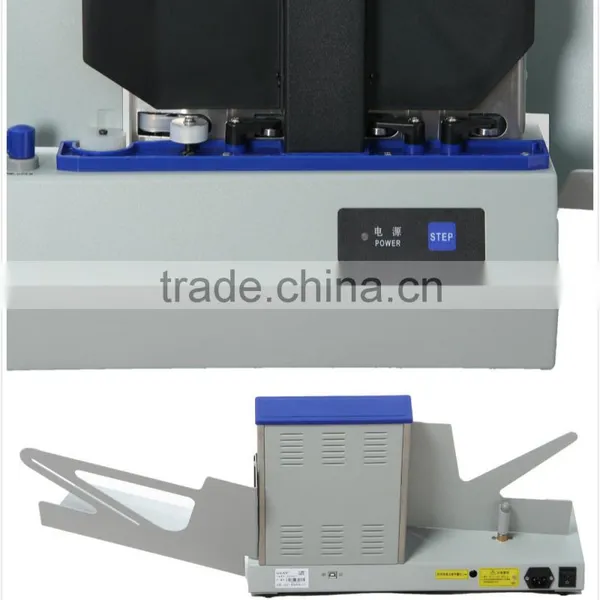

Hardware of OMRS43FSA

















The specification of OMRS43FSA

Specifications:

Model:	OMR43FSA
Reading mode:	single-face and read one time
Feeding mode:	automatic
Speed:	8000pcs/hour (based on A4)
Form size:	130mm×50mm-300mm×210mm
Form weight:	70-150g/m2
Track spacing:	5.08mm
Marking tools:	No.2 or softer pencils,carbon pens
Mark shapes:	Rectangles,ovals and circles
Error rate:	≤1×10-7
Mark choice:	single choice, multiple choice and BCD code
Format:	26 kinds, each has 255 commands at most
Interface:	RS232, USB
Host:	PC, Laptop
Weight:	8kg
Operating system:	Win2000,Win2003,Win XP,Win7
Power supply:	AC90-264V, 50-60Hz
Dimensions:	560mm×170mm×400mm
Operating condition:	temperature 0-40°C, humidity≤90%, no erosive gas

OPTIONS:



Barcode reader: Code39 ,Interleaved 2 of 5 Code, Character Set C of Code128



Ink reader: Blue and black ballpoint pens, markers and pencils





The package of the OMR Scanner





1.The size of the package :560mm*170mm*400mm





 2. Gross weight :12KG





3.The delivery way :by air























              After service for OMR Scanner













1. Warranty for Two Year(from The contract signing)



 NANHAO Group offers the technology training free of charge for one time chnicians from customer are trained by NANHAO Group technicians for 5-7days.If there are special situations happened. The training schedule will be depends.

The traveling expenses between two countries are paid by NANHAO Group itself.

But all the expenses that happen in customer’s country (Including the charge for traveling, room and board etc) should be paid by customer.







During the warranty date, NANHAO Group will supply the technology and service by network or telephone at any time.

If the visiting service is needed, NANHAO Group will send technicians, the service is free of charge,

but all expenses(Including the charge for traveling, room and board etc)should be paid customers.







2. Within the two year after shipment, if there are some troubles or damages on the machine.

 NANHAO Group will take charge of them and maintain the machine or change parts for customer free of charge.

The freight for posting the machine or parts should be paid a half by both of NANHAO Group and customer.







3. As for the parts that are easily be damaged, there are spare ones available to offer free of charge(there will be one set of spare parts for each machine).







Notice:







 addition, this warranty is valid only for the original equipment purchase. It is not transferable if the equipment is resold







 NANHAO Group will not accept liability for equipment faults due to unforeseen and unusual circumstance, nor for fault fue to mishandling by customer
