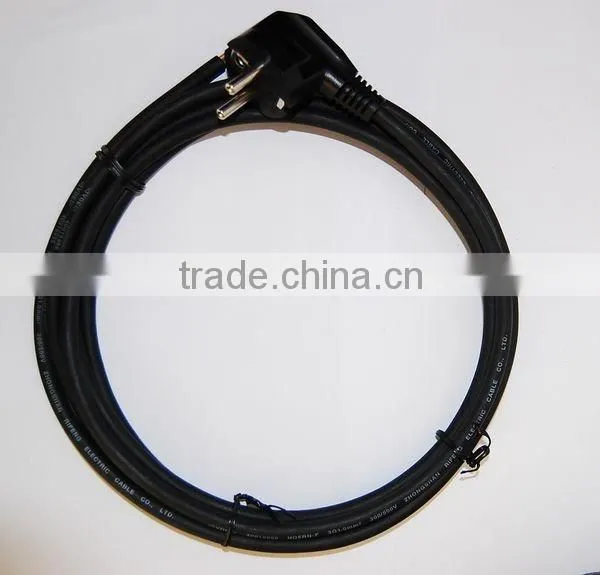

Flexible Power Cord Female UL CE ROHS 2616

US$ 0.5 - 1.5 MOQ: 2000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

XRT

Model Number:

XRT-04

Shenzhen Yiwanda Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name XRT

Model Number XRT-04

Type Other, Flexible power cord

Application Home Appliance

Female End Type IEC

Specifications

flexible power cord
NEMA Power Cord
AC Power Cord
VDE UL CE REACH ISO9001 ISO 14002 compliant
plug type NEMA CEE schuko

Flexible power cord female UL CE ROHS 2616

Features:

Rubber sheathed flexible cable/PVC
Various type of plug available
Cable working temperature should not exceed 65°C
Cable have a certain extent of temperature resistance and oil resistance, fit to work outside and work in the smeary environment.
Reach standard GB/T 18380.1-2001 vertical flame test.
When cable in temperature of 20°C the insulation resistance between conductors above 50MΩ.km.

Application: Rated voltage 300/500V, 350/750V, for Air conditioner, home appliance power supply.

Example: VDE H05RR-F, H05RN-F, H07RN-F

specification		Conductor	Normal thickness of insulation mm	Normal thickness of jacket mm	Over diameter mm	Max conductor resistance at 20°C ≤Ω/km	Ampere rating A
No. of core	normal cross-sectional area of conductor mm2	No. / Dia. mm	Normal thickness of insulation mm	Normal thickness of jacket mm	Over diameter mm	Max conductor resistance at 20°C ≤Ω/km	Ampere rating A
1	1.5	30/0.25	0.8	1.4	5.8~6.7	13.3	27
	2.5	49/0.25	0.9	1.4	6.5~7.2	7.98	37
	4	56/0.30	1.0	1.5	7.6~8.5	4.95	47
	6	84/0.30	1.0	1.6	8.5~9.5	3.30	52
2	1	32/0.20	0.8	1.3	8.2~9.1	19.5	17
	1.5	30/0.25	0.8	1.5	9.1~10.1	13.3	21
	2.5	49/0.25	0.9	1.7	10.9~12.4	7.98	30
	2×4	56/0.30	1.0	1.8	12.9~14.8	4.95	39
	3×6	84/0.30	1.0	2.0	14.7~16.6	3.30	51
3	3×1	32/0.20	0.8	1.4	8.9~9.9	19.5	12
	3×1.5	30/0.25	0.8	1.6	9.8~11.1	13.3	18
	3×2.5	49/0.25	0.9	1.8	11.7~13.4	7.98	26
	3×4	56/0.30	1.0	1.9	13.8~15.7	4.95	34
	3×6	84/0.30	1.0	2.1	15.7~17.6	3.30	43
