Help CenterAir Conditioning Electronic Pcb Manufacturer
Related Products
Specifications
a. air conditioning electronic pcb manufacturerb. PCB Clone&Design
c. Gerber needed
d. Turnkey service
e. UL,SGS,RoHs,TS

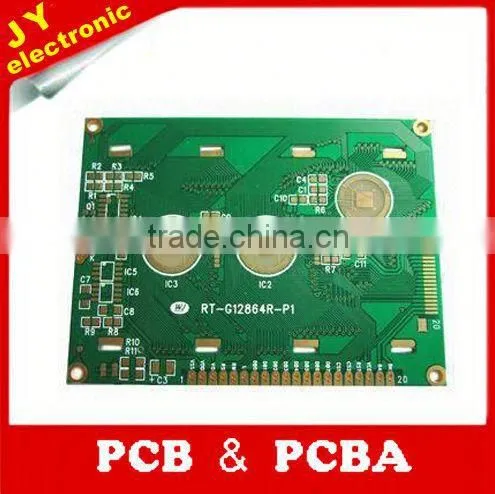

air conditioning electronic pcb manufacturer
Welcome to Dalian JY Electronic Technology Co., Ltd
What can we supply ?
OEM & ODM Turnkey service ,High Satification !
1 ) One layer pcb,double sided pcb, Multilayer pcb
2) OEM pcb ,pcb assembly ( gerber ),pcb copy ( samples &pics ),pcb design ( need schematics or ideals )
3) FR4 ,Aluminum PCB, Flexiable PCB,MCPCB ,CEM3
We independently research and develop Internet control system, Internet numericalcontrol system, robot control system and produce hardware and software independently for control management etc.. Also supply clients SAS Marketing Automation. Door bell, car alarm, mobile solar charger design by us is most welcome products.
PCB Certificates Details
All our certificates are just for PCB, not for PCBA, pls notice.
JY Factory Real Photos
The last three pieces photos are pcba factory.
JY Main Clients
JY PCB Engineering Capacity
| No. | Item | Spec |
| 1 | Layers | 1 to 24 layers |
| 2 | Max working panel area | 457 x 610 mm |
| 3 | Min board thickness | 4 layer: 0.40mm |
| 6 layer: 0.80mm | ||
| 8 layer: 1.00mm | ||
| 10 layer: 1.20mm | ||
| 4 | Min trace width | 0.10mm |
| 5 | Min spacing | 0.10mm |
| 6 | Min hole diameter | 0.20mm |
| 7 | Min Copper thickness in hole | 0.020mm |
| 8 | PTH size tolerance | ±0.05mm |
| 9 | NPTH size tolerance | ±0.025mm |
| 10 | Hole position tolerance | ±0.05mm |
| 11 | Dimension tolerance | ±0.1mm |
| 12 | Min solder mask dam | 0.08mm |
| 13 | Insulation resistance | 1E+12Ω (normal condition) |
| 14 | Max Board thickness/Hole size Rate | '10:01:00 AM |
| 15 | Thermal shock endurance | 288 3 times in 10sec |
| 16 | Max Board twist and wrap | ≤0.7% |
| 17 | High Vlotage endurance | 1.3KV/mm |
| 18 | Copper foil peel off endurance | 1.4N/mm |
| 19 | Hardness of resist ink | ≥6H |
| 20 | Flame resistance | 94V-0 |
| 21 | Impedance control | ±5% |
| 22 | Certificate | ISO 9001:2000;ISO 14001;ISO/TS16949:2002 ,UL E203640 |
JY PCB QC System
JY PCB Payment way and Delivery way.
Our payment way is flexible and multiple. For samll quantity order, we supply Express delivery.For mass order,we delivery by ship.
FAQ:
A.For PCB order, please provide Gerber file or *.pcb file. Any details are also welcomed if no Gerber file.
B.Large PCB quantity order, quotation will be based on SQM.
C.For PCBA order, please provide the Gerber file, *.pcb file and BOM List.
D.Reverse engineering and PCB clone service can be supplied with your printed circuit board supplied.
E.Any questions, welcome to contact our sales person Maggie by sending inquiry. Your satisfaction is our pleasure.
...
