split pressurized solar water heater

Specifications

The upright tank can keep the water temperature at different level. It can heat the top water instantly.

Key Specification:

The upright tank can keep the water temperature at different level. It can heat the top water instantly. The special structure can prevent from mixing the cold an hot water together.

The tank is located in the building, the connection pipe between the tank and water tap is very short, so that hot water can be used instantly and seldom cold water flows out. The hot water loses less energy than the normal one.

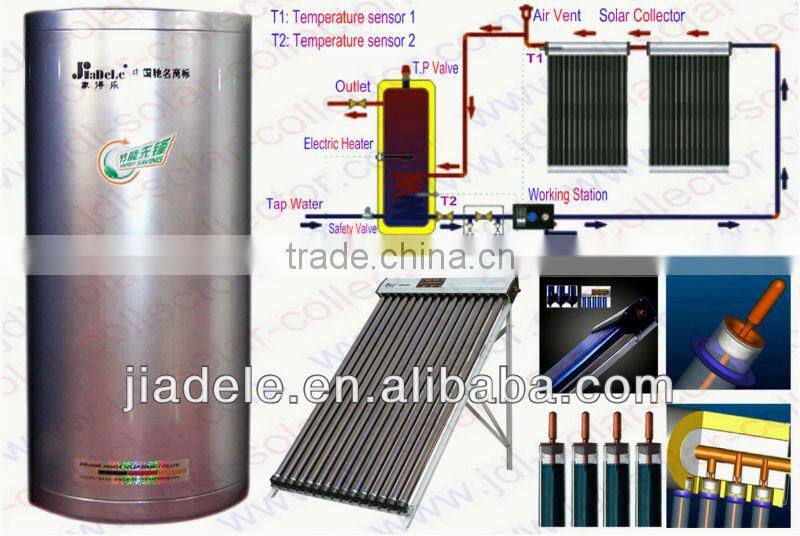

The heater collector and the water tank is separated that makes the system combine with the building perfectly, which will not effect the sightseeing of the building and the environment around.

Back up with electric heater so that in the day without sunshine hot water can also used.

Capacity: 100L,150L,200L,250L,300L,400L,500L.



MATERIAL:

Inner tank: stainless steel SUS 304-1.2mm/porcelain inner tank

Out tank: painted steel-0.6mm/stainless steel-0.6mm

Insulation: 47.5-60mm polyurethane

The use pressure:<6 bar

The test pressure:10 bar



Accessories:

Electric heater

The temperature and pressure relief valve

The sensor

The copper coil heat exchanger: one or two

The drain pipe

The installation method: vertical
