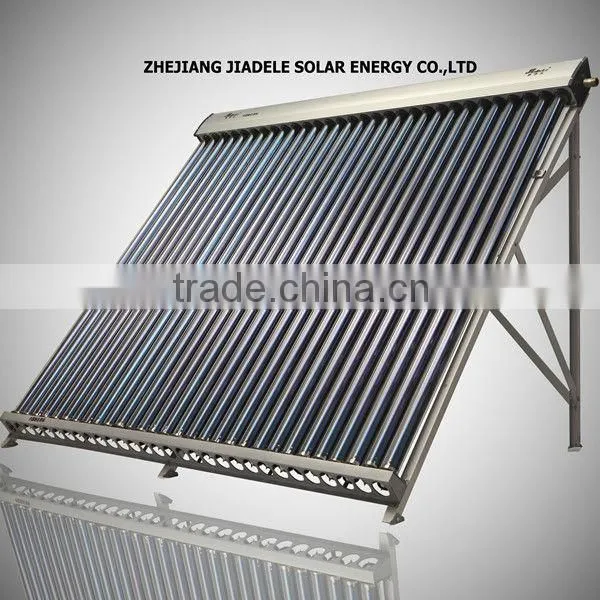

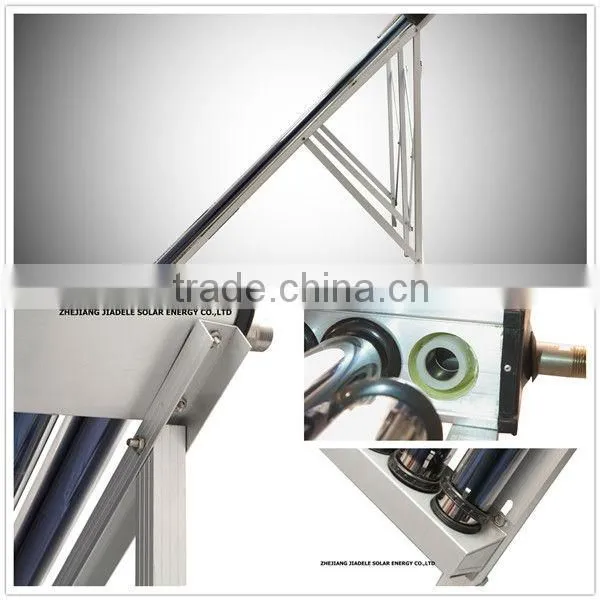

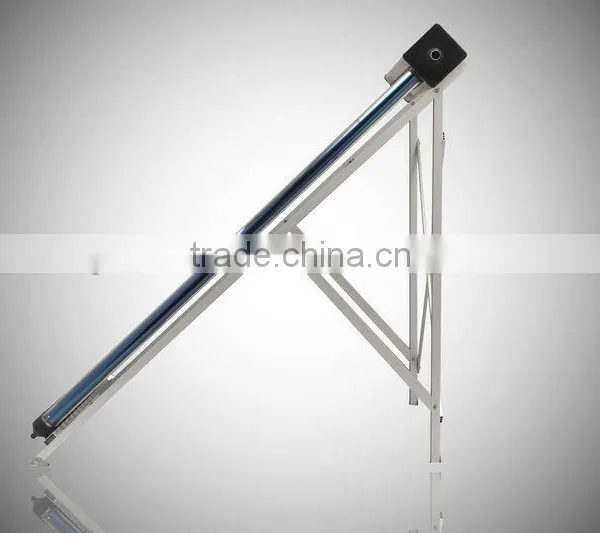

Large-scale Solar Collector
US$ 100 - 300
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Indirect / Closed Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Evacuated Tube
Pressure
Unpressurized
Circulation Type
Indirect / Closed Loop (Active)
Heating System
Thermosyphon (Passive)
Connection Type
Split
Installation
Freestanding
Housing Material
Stainless Steel
Certification
CE, Other, CE, ISO9001:2008,KC,SOLAR KEYMARK,SRCC
Capacity
260
Place of Origin
Zhejiang, China
Brand Name
Jiadele
Model Number
JDL-B-NPM solar collector
| large-scale solar collector . |
PARAMETER TABLE-1
| Type | Tube Orientation |
Absorb Area(m2) |
Vacuum Tube Qty(pcs) |
Dia(mm) | Length(mm) |
Volume/set (Cubic meter) |
| JDL-B-NPM25-58/1.8 | Vertical | 3.2 | 25 | 58 | 1800 | 0.38 |
| JDL-B-NPM30-58/1.8 | Vertical | 3.8 | 30 | 58 | 1800 | 0.44 |
| JDL-B-NPM36-58/1.8 | Vertical | 4.6 | 36 | 58 | 1800 | 0.53 |
REMARK

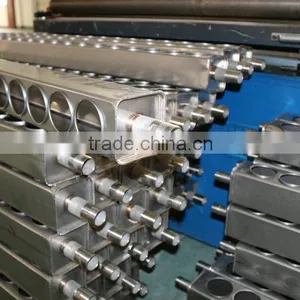

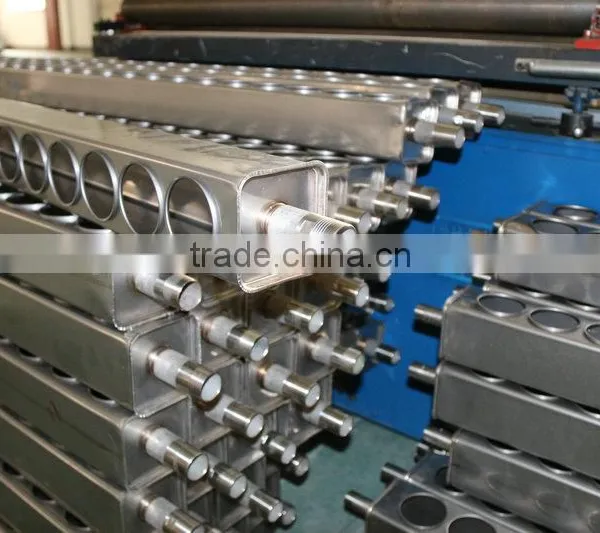

Manifold connections(inch): 1
Test pressure(pa):0.3MPa
Operating fluid pressure(Pa): 0.1MPa
Max. service temperature: 95
Max. stagnation temperature: 200
Distance from tube to tube(mm): 75
Flow range recommendation(50-150L/m2h)
Insulation thickness(mm): 30
Min. collector angle: 15
Max. collector angle: 75
Inner pipe diameter(mm):51mm
