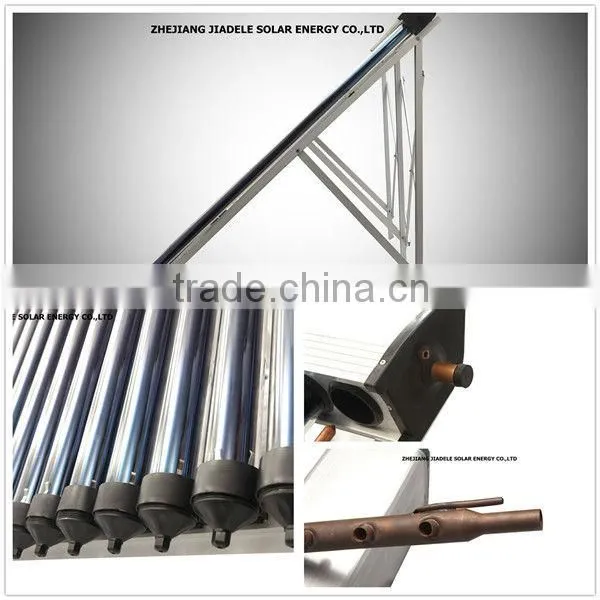

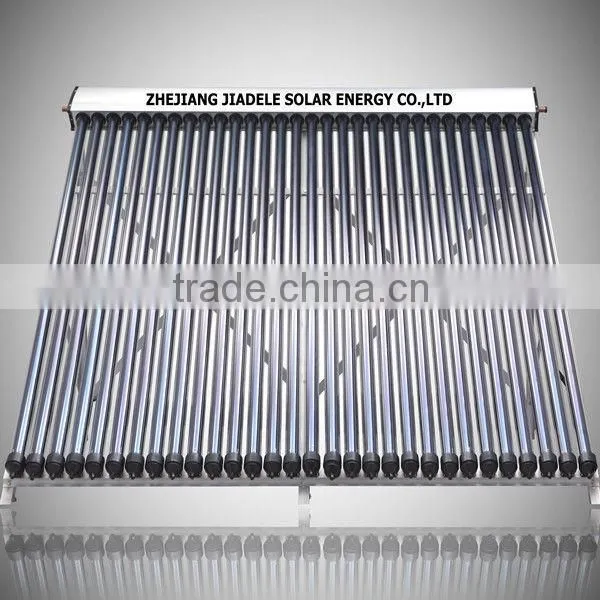

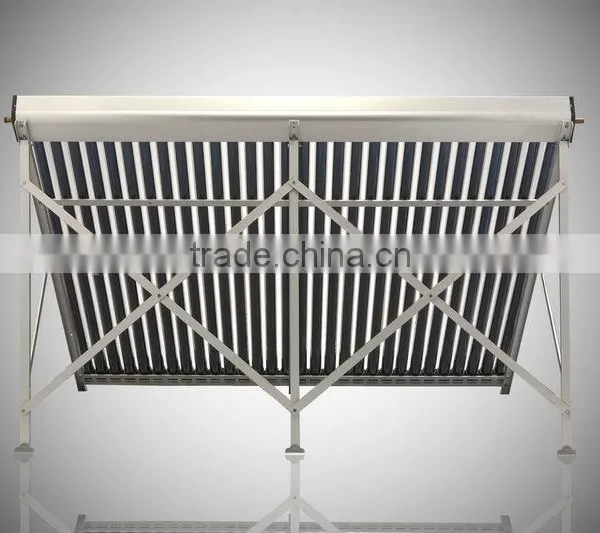

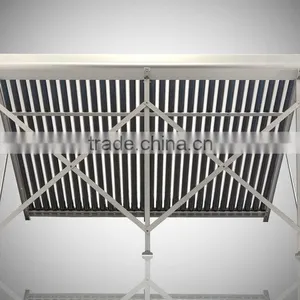

Help CenterHeat Pipe Solar Collector
Related Products
| heat pipe solar collector . |
CHARACTERISTICS
Key Specification:
Water is rapidly heated by the heat pipe
There is no water in the vacuum tube, so the tube will not break in winter
The small size of the collector allows for versatile architectonic integration
Collector can be combines with existing pipeline
The collector can operate even in case of a broken tube. A single tube can if necessary be exchanged without interruption of the heating cycle.
PARAMETER TABLE-1
| Type |
Area (m2) |
Volume of the fluid(L) |
Vacuum tube Qty(pcs) |
Length/Width/ Height(mm) |
Gross wet(kg) |
20GP/40GP/40HC loading Qty(sets) |
| JDL-PM10-58/1,8 | 1.3 | 0.77 | 10 | 2020x995x155 | 39 | 0.18 |
| JDL-PM15-58/1.8 | 1.9 | 1.15 | 15 | 2020x1410x155 | 53 | 0.24 |
| JDL-PM20-58/1.8 | 2.6 | 1.54 | 20 | 2020x1825x155 | 69 | 0.29 |
| JDL-PM25-58/1.8 | 3.3 | 1.92 | 25 | 2020x2240x155 | 83 | 0.36 |
| JDL-PM30-58/1.8 | 3.9 | 2.3 | 30 | 2020x2655x155 | 109 | 0.43 |
| Vacuum tube size:58x1800 | ||||||
REMARK
Outer tank: aluminum alloy 2.0mm
Frame if made of aluminum alloy.
Manifold connection(inch):1/2 3/4
Test pressure(pa):1MPa
Operating fluid ppressure(pa):0.6MPa
Max. service temperature:95
Max. stagnation temperature:242
Distance from tube to tube:75
Flow range recommendation:50-150l/m2h
Insulation thickness(mm):40
Min. collector angle(degree):15
Max. collector angle(degree):75
