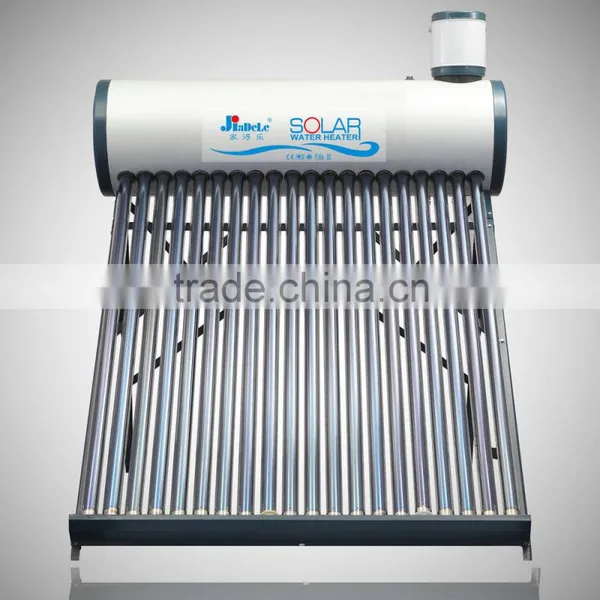

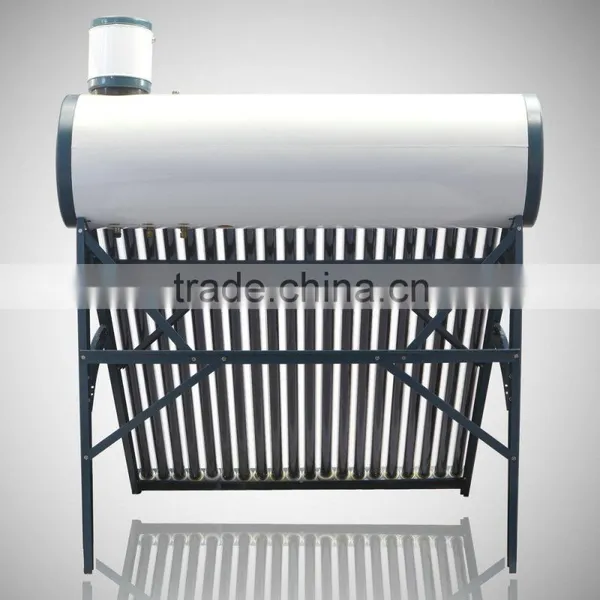

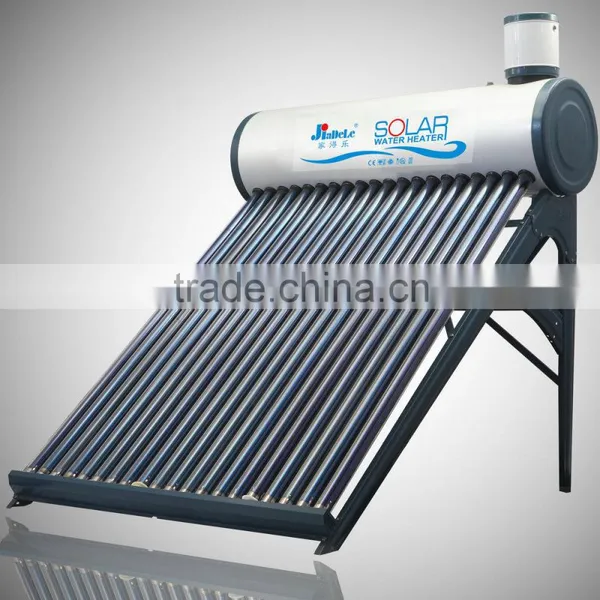

Copper Coil Solar Water Heater

Name: Copper Coil Solar Water Heater
Brand: Jiadele
SKU: 113330133

US$ 200 - 250 MOQ: 1 Set

Key Specifications

Type:

Evacuated Tube

Pressure:

Pressurized

Circulation Type:

Direct / Open Loop (Active)

Zhejiang Jiadele Solar Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Evacuated Tube

Pressure Pressurized

Circulation Type Direct / Open Loop (Active)

Heating System Thermosyphon (Passive)

Connection Type Direct-Plug

Installation Freestanding

Housing Material Stainless Steel

Certification CE, Other, CE, CCC. ISO9001-2001

Capacity 200

Place of Origin Zhejiang, China

Brand Name Jiadele

Model Number JDL-CC

We are professional manufacturer and exporter of solar water heater 12 years.

You can get the most professional suggestion about what kind of solar water heater is suitable for you.

Vacuum tube	Diameter	58mm
	Length	1900mm
	Material	high 3.3 borosilicate glass
	Coating	AL/SS-CU
Water tank	Inner tank	Stainless steel SUS304
	Outer tank	galvanized steel
	Insulation layer	Polyurethane, thickness 50mm
	Copper coil	Length:40mm,diameter:12mm,thickness:1mm
Frame	Material	Galvanized steel
Small tank	Material	Galvanized steel
Small tank	Capacity	5 liters
Angle		35,45 as customer needs

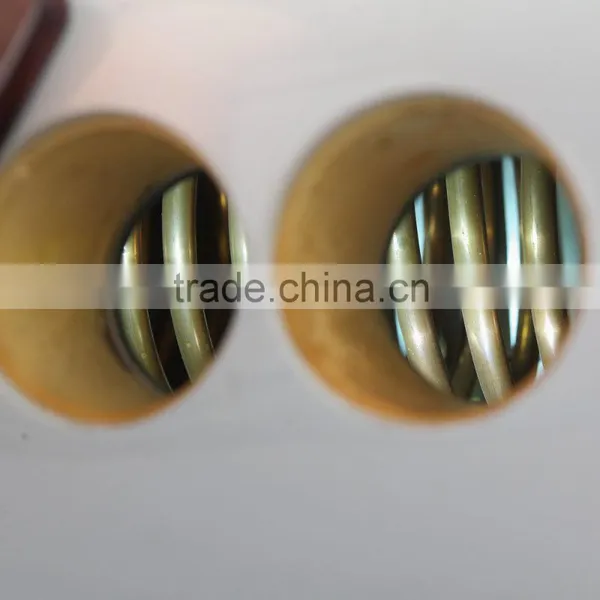

The heat exchanger of this system is adopting copper coil which has the highest thermal transfer rate among all metal except argentums.
The tank is working by atmospheric pressure, but the copper coil working with pressure. Each SWH is tested by water as 1.2Mpa pressure and by air at 0.6Mpa pressure in the production procedure.
This kind of solar water heater is suitable for the place with high temperature.
The water in the tank is always full and hot, no need to load cold water everyday by user since it will be filled with water by the small tank automatically.
The copper coils inlet is connected with tap cold water; outlet is connected with hot water supplier.
The hot water flow rate depend on the cold water pressure, more higher pressure of tap water, the more stronger flow rate of hot water and more comfortable we feel.

If you are interested in this products, please contact with me at soon.

Tel: 0086-15067368685
