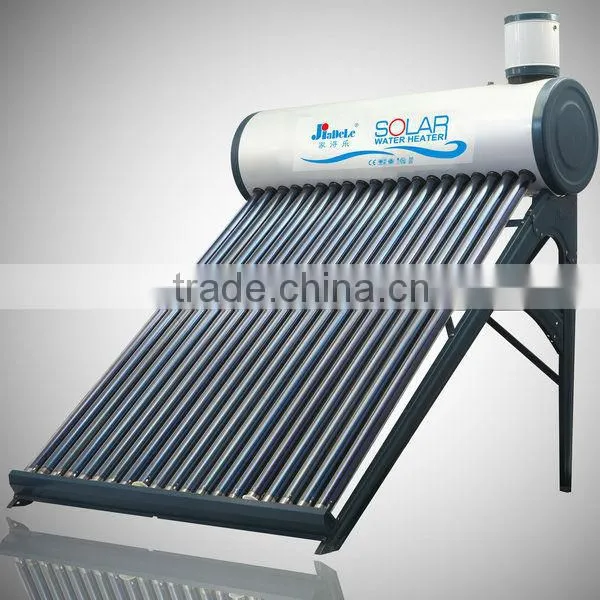

Solar Water Heater With Copper Coil

Specifications

1,Solar Water Heater With Copper Coil
2,CE, CCC, ISO 9001 proof;
3,Higher Qualtiy;
4,competitive

Solar Water Heater With Copper Coil







Key Specification:

Instant heat exchange; plentiful warm water for use

Output water temperature is stable, so it is very comfortable and safe to use

Hot and cold water flow is separated

Copper coil is tested and does not break; high grade materials are used



Material:

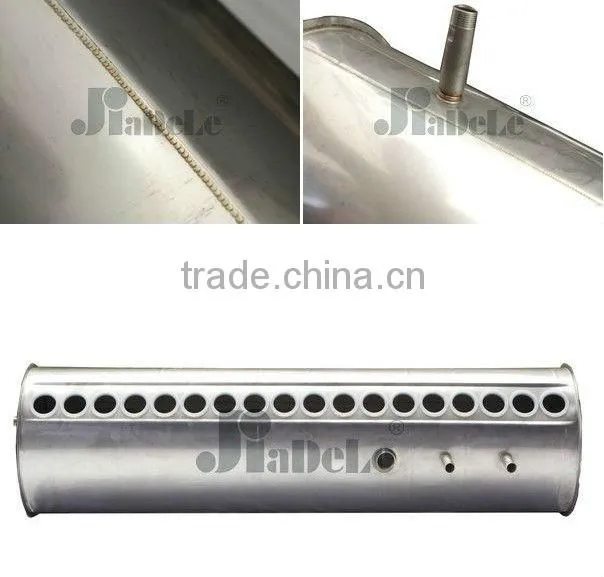

1)  Inner tank: stainless steel SUS304--0.50mm

2)  Vacuum tube: AL-SS/CU-58-1800

3)  Outer tank: painted steel-0.31mm

4)  Frame: coated galvanized steel-1.5mm

5)  The material of insulation: polyurethane

6)  Copper coil: Φ12mm, thickness 1.0mm



Remark:

Solar heat storage tank diameter(mm):360/480

Thickness insulated(mm):50

Max. fluid pressure(pa):1MPa

Operation fluid pressure(pa):0.4MPa

Coil connection(inch):1/2

Hot-outlet(inch):1/2

Cold-inlet(inch):1/2

Small tank connection(inch):1/2

Electric heater connection(inch):1.25
