Specifications
Welding Rotator1.1 drive unit +1 idler unit
2.High quality gear box
3.LED speed indicator
4.CE & ISO approved

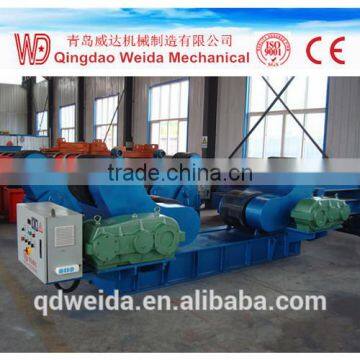

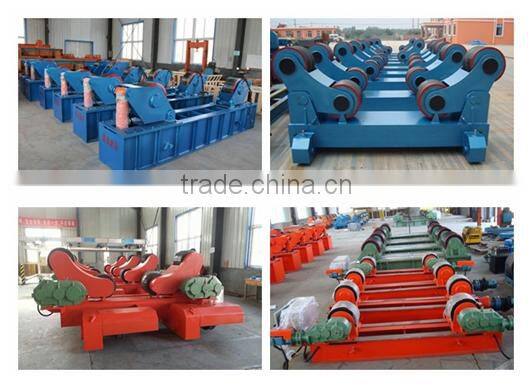

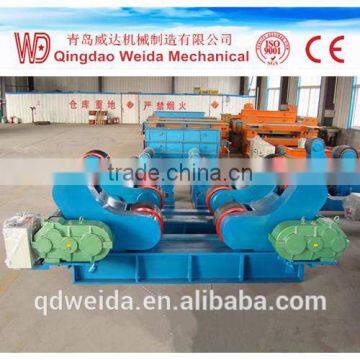

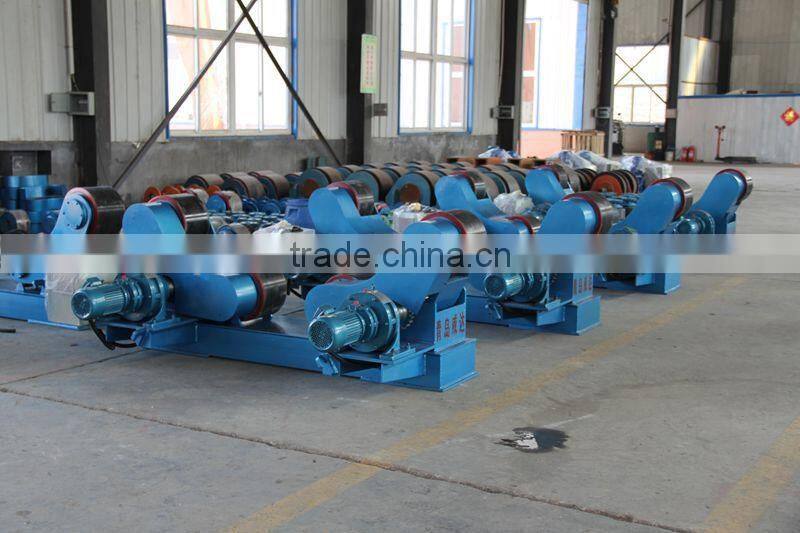

ZT Series Self Aligned Welding Rotator With CE and ISO9001Certification
Our self-alignment welding rotator is mainly used for handing and automatic welding circular metal containers, and can be widely applied to the oil industry, press vessel field, wind power production line, pipe line production, and many other round workpiece.
Our self-alignment welding rotator is designed and produced to better satisfy the growing demands for the pressure vessel manufactures both domestically and internationally. It can deal with a wide range of diameters, and it adopts frequency conversion setting and stepless speed regulation mode.
Application:
1. Pressure vessels
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job

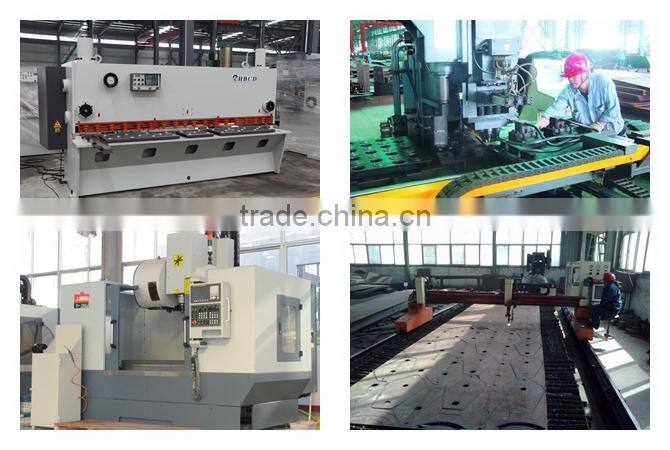

We have advanced processing equipment and skilled workers
packing According to export standardensure product quality.
| Carrying Capacity (T) |
Roller Diameter(mm) | Roller Width (mm) |
Roller linear Speed (m/h) |
Suitable Welding Diameter (mm) | Motor Power(KW) | Speed Regulation Way |
| 5 | 200 | 130 | 6-1200 | 200-2100 | 1.1 | Electromagnetism adjustable-speed motor, frequency conversion Stepless speed regulation |
| 10 | 250 | 150 | 6-1200 | 320-3000 | 2.2 | |
| 15 | 260 | 150 | 6-1200 | 320-3000 | 2.2 | |
| 20 | 300 | 220 | 6-1200 | 500-4000 | 2.2 | |
| 25 | 300 | 220 | 6-1200 | 500-4000 | 3 | |
| 30 | 370 | 260 | 6-1200 | 600-4500 | 3 | |
| 35 | 370 | 260 | 6-1200 | 600-4500 | 3 | |
| 40 | 370 | 260 | 6-1200 | 600-4500 | 4 | |
| 45 | 400 | 260 | 6-1200 | 700-5000 | 4 | |
| 50 | 400 | 260 | 6-1200 | 700-5000 | 4 | |
| 60 | 400 | 280 | 6-1200 | 700-5000 | 5.5 | |
| 70 | 400 | 280 | 6-1200 | 700-5000 | 5.5 | |
| 80 | 400 | 280 | 6-1200 | 800-5000 | 5.5 | |
| 100 | 450 | 350 | 6-1200 | 1000-6500 | 7.5 | |
| 150 | 450 | 350 | 6-1200 | 1000-6500 | 11 | |
| 200 | 500 | 360 | 6-1200 | 1200-7000 | 11 | |
| 300 | 500 | 360 | 6-1200 | 1200-7000 | 15 |
If you want more details about our welding machine,please contact us
Add:NO.1 Weida Road Ducun Eastern Industrial District,Jiaozhou Qingdao,Shandong
Tel:0532-85239588
Fax:0532-85239566
